Edgeboard Connectors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Card Type | Gender | Number of Positions/Bay/Row | Number of Positions | Card Thickness | Number of Rows | Pitch | Read Out | Features | Mounting Type | Termination | Contact Material | Contact Finish | Contact Finish Thickness | Contact Type | Color | Flange Feature | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
857-043-545-104CONN EDGE SGL FMALE 43POS 0.156 |
0 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 43 | 43 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
892-045-558-102CONN EDGE SINGLE FML 45POS 0.100 |
0 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 45 | 45 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-043-405-102CONN EDGE SGL FML 43POS 0.156 |
0 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 43 | 43 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
807-013-453-107CONN EDGE DUAL FMALE 26POS 0.156 |
0 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 13 | 26 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
807-013-453-103CONN EDGE DUAL FMALE 26POS 0.156 |
0 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 13 | 26 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
807-013-454-107CONN EDGE DUAL FMALE 26POS 0.156 |
0 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 13 | 26 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
892-045-558-101CONN EDGE SINGLE FML 45POS 0.100 |
0 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 45 | 45 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | - | -40°C ~ 125°C |
|
857-043-445-102CONN EDGE SGL FML 43POS 0.156 |
0 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 43 | 43 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-043-427-101CONN EDGE SGL FML 43POS 0.156 |
0 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 43 | 43 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | - | -40°C ~ 125°C |
|
857-043-447-101CONN EDGE SGL FML 43POS 0.156 |
0 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 43 | 43 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Black | - | -40°C ~ 125°C |
|
857-043-445-104CONN EDGE SGL FML 43POS 0.156 |
0 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 43 | 43 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
857-043-505-101CONN EDGE SGL FMALE 43POS 0.156 |
0 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 43 | 43 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | - | -40°C ~ 125°C |
|
857-043-405-101CONN EDGE SGL FML 43POS 0.156 |
0 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 43 | 43 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Tin | - | Semi Bellows | Black | - | -40°C ~ 125°C |
|
892-045-559-101CONN EDGE SINGLE FML 45POS 0.100 |
0 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 45 | 45 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | - | -40°C ~ 125°C |
|
857-043-525-102CONN EDGE SGL FMALE 43POS 0.156 |
0 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Single Edge | Female | 43 | 43 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
887-084-560-803CONN EDGE DUAL FMALE 84POS 0.156 |
0 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Dual Edge | Female | 42 | 84 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
807-030-427-108CONN EDGE SGL FML 30POS 0.156 |
0 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Single Edge | Female | 30 | 30 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
807-030-425-107CONN EDGE SGL FML 30POS 0.156 |
0 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Single Edge | Female | 30 | 30 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|

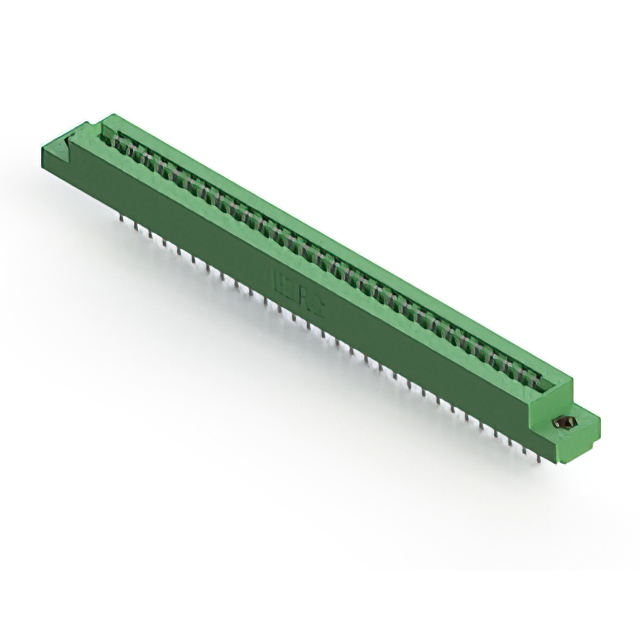

807-030-445-108CONN EDGE SGL FML 30POS 0.156 |
0 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Single Edge | Female | 30 | 30 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
887-084-559-207CONN EDGE DUAL FMALE 84POS 0.156 |
0 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Dual Edge | Female | 42 | 84 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
