Edgeboard Connectors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Card Type | Gender | Number of Positions/Bay/Row | Number of Positions | Card Thickness | Number of Rows | Pitch | Read Out | Features | Mounting Type | Termination | Contact Material | Contact Finish | Contact Finish Thickness | Contact Type | Color | Flange Feature | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
842-104-541-207CONN EDGE DUAL FML 104POS 0.100 |
0 |
|
Datasheet |
842 | Box | Active | Non Specified - Dual Edge | Female | 52 | 104 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
837-080-558-203CONN EDGE DUAL FMALE 80POS 0.156 |
0 |
|
Datasheet |
837 | Box | Active | Non Specified - Dual Edge | Female | 40 | 80 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
837-080-555-203CONN EDGE DUAL FMALE 80POS 0.156 |
0 |
|
Datasheet |
837 | Box | Active | Non Specified - Dual Edge | Female | 40 | 80 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
837-080-559-807CONN EDGE DUAL FMALE 80POS 0.156 |
0 |
|
Datasheet |
837 | Box | Active | Non Specified - Dual Edge | Female | 40 | 80 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
842-104-541-208CONN EDGE DUAL FML 104POS 0.100 |
0 |
|
Datasheet |
842 | Box | Active | Non Specified - Dual Edge | Female | 52 | 104 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
837-080-559-203CONN EDGE DUAL FMALE 80POS 0.156 |
0 |
|
Datasheet |
837 | Box | Active | Non Specified - Dual Edge | Female | 40 | 80 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
837-080-559-808CONN EDGE DUAL FMALE 80POS 0.156 |
0 |
|
Datasheet |
837 | Box | Active | Non Specified - Dual Edge | Female | 40 | 80 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
845-058-558-408CONN EDGE SINGLE FML 58POS 0.100 |
0 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 58 | 58 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
845-058-558-108CONN EDGE SINGLE FML 58POS 0.100 |
0 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 58 | 58 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
845-058-558-608CONN EDGE SINGLE FML 58POS 0.100 |
0 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 58 | 58 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
842-039-559-108CONN EDGE SINGLE FML 39POS 0.100 |
0 |
|
Datasheet |
842 | Box | Active | Non Specified - Single Edge | Female | 39 | 39 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
845-062-559-402CONN EDGE SINGLE FML 62POS 0.100 |
0 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 62 | 62 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
845-058-559-403CONN EDGE SINGLE FML 58POS 0.100 |
0 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 58 | 58 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|

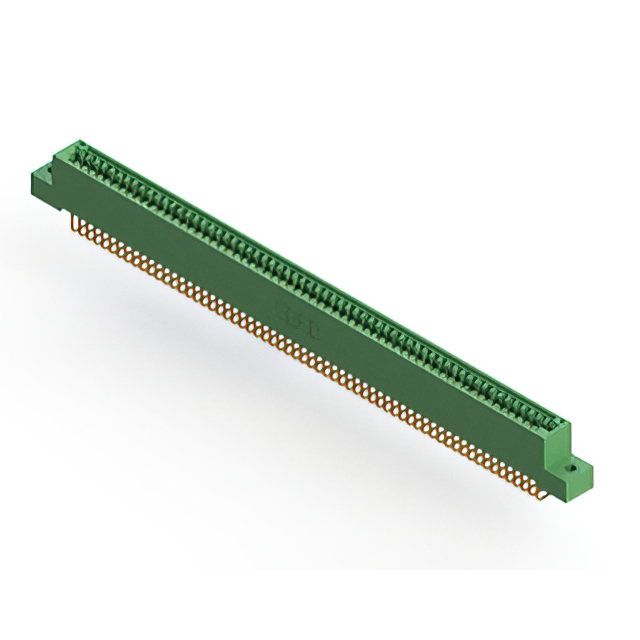

845-062-558-102CONN EDGE SINGLE FML 62POS 0.100 |
0 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 62 | 62 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
845-058-558-107CONN EDGE SINGLE FML 58POS 0.100 |
0 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 58 | 58 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
845-058-558-607CONN EDGE SINGLE FML 58POS 0.100 |
0 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 58 | 58 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
845-058-558-403CONN EDGE SINGLE FML 58POS 0.100 |
0 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 58 | 58 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
845-058-558-603CONN EDGE SINGLE FML 58POS 0.100 |
0 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 58 | 58 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
842-039-559-103CONN EDGE SINGLE FML 39POS 0.100 |
0 |
|
Datasheet |
842 | Box | Active | Non Specified - Single Edge | Female | 39 | 39 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
845-058-559-107CONN EDGE SINGLE FML 58POS 0.100 |
0 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 58 | 58 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
