Edgeboard Connectors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Card Type | Gender | Number of Positions/Bay/Row | Number of Positions | Card Thickness | Number of Rows | Pitch | Read Out | Features | Mounting Type | Termination | Contact Material | Contact Finish | Contact Finish Thickness | Contact Type | Color | Flange Feature | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
895-035-500-612CONN EDGE SINGLE FML 35POS 0.100 |
0 |
|
Datasheet |
895 | Bulk | Active | Non Specified - Single Edge | Female | 35 | 35 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
895-035-500-112CONN EDGE SINGLE FML 35POS 0.100 |
0 |
|
Datasheet |
895 | Bulk | Active | Non Specified - Single Edge | Female | 35 | 35 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
892-035-541-107CONN EDGE SINGLE FML 35POS 0.100 |
0 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 35 | 35 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
892-035-540-103CONN EDGE SINGLE FML 35POS 0.100 |
0 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 35 | 35 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
892-035-541-103CONN EDGE SINGLE FML 35POS 0.100 |
0 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 35 | 35 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
833-029-500-108CONN EDGE SGL FMALE 29POS 0.156 |
0 |
|
Datasheet |
833 | Box | Active | Non Specified - Single Edge | Female | 29 | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
837-029-500-107CONN EDGE SGL FMALE 29POS 0.156 |
0 |
|
Datasheet |
837 | Box | Active | Non Specified - Single Edge | Female | 29 | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
837-029-500-603CONN EDGE SGL FMALE 29POS 0.156 |
0 |
|
Datasheet |
837 | Box | Active | Non Specified - Single Edge | Female | 29 | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|

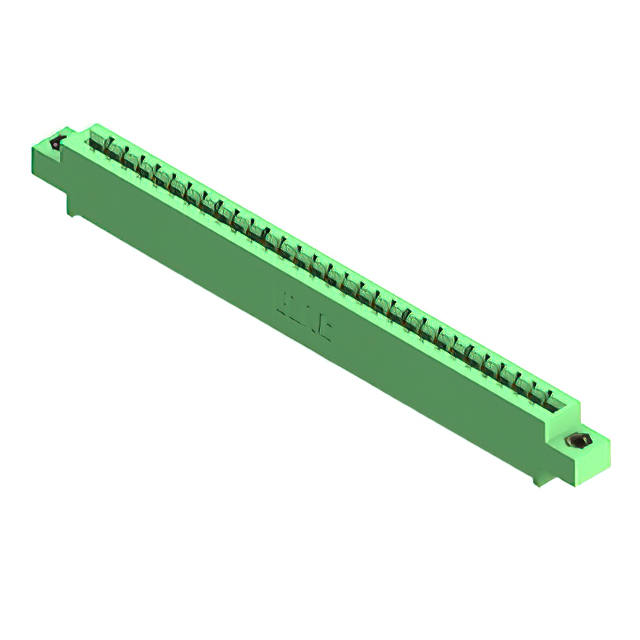

837-029-500-608CONN EDGE SGL FMALE 29POS 0.156 |
0 |
|
Datasheet |
837 | Box | Active | Non Specified - Single Edge | Female | 29 | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
837-029-500-607CONN EDGE SGL FMALE 29POS 0.156 |
0 |
|
Datasheet |
837 | Box | Active | Non Specified - Single Edge | Female | 29 | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
833-029-500-603CONN EDGE SGL FMALE 29POS 0.156 |
0 |
|
Datasheet |
833 | Box | Active | Non Specified - Single Edge | Female | 29 | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
833-029-500-107CONN EDGE SGL FMALE 29POS 0.156 |
0 |
|
Datasheet |
833 | Box | Active | Non Specified - Single Edge | Female | 29 | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
837-029-500-103CONN EDGE SGL FMALE 29POS 0.156 |
0 |
|
Datasheet |
837 | Box | Active | Non Specified - Single Edge | Female | 29 | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
887-029-500-607CONN EDGE SGL FMALE 29POS 0.156 |
0 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Single Edge | Female | 29 | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
887-029-500-103CONN EDGE SGL FMALE 29POS 0.156 |
0 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Single Edge | Female | 29 | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
887-029-500-108CONN EDGE SGL FMALE 29POS 0.156 |
0 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Single Edge | Female | 29 | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
887-029-500-107CONN EDGE SGL FMALE 29POS 0.156 |
0 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Single Edge | Female | 29 | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
887-029-500-608CONN EDGE SGL FMALE 29POS 0.156 |
0 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Single Edge | Female | 29 | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
887-029-500-603CONN EDGE SGL FMALE 29POS 0.156 |
0 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Single Edge | Female | 29 | 29 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
846-100-556-207CONN EDGE DUAL FML 100POS 0.125 |
0 |
|
Datasheet |
846 | Box | Active | Non Specified - Dual Edge | Female | 50 | 100 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.125" (3.18mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
