Edgeboard Connectors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Card Type | Gender | Number of Positions/Bay/Row | Number of Positions | Card Thickness | Number of Rows | Pitch | Read Out | Features | Mounting Type | Termination | Contact Material | Contact Finish | Contact Finish Thickness | Contact Type | Color | Flange Feature | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

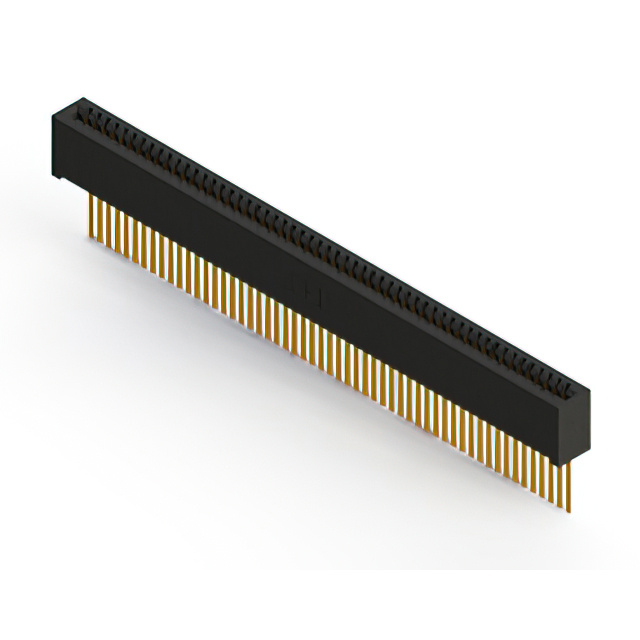

892-055-544-101CONN EDGE SINGLE FML 55POS 0.100 |
0 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 55 | 55 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | - | -40°C ~ 125°C |
|
892-055-523-102CONN EDGE SINGLE FML 55POS 0.100 |
0 |
|
Datasheet |
892 | Bulk | Active | Non Specified - Single Edge | Female | 55 | 55 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
842-096-558-212CONN EDGE DUAL FMALE 96POS 0.100 |
0 |
|
Datasheet |
842 | Box | Active | Non Specified - Dual Edge | Female | 48 | 96 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
807-076-560-201CONN EDGE DUAL FMALE 76POS 0.156 |
0 |
|
Datasheet |
807 | Box | Active | Non Specified - Dual Edge | Female | 38 | 76 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Green | - | -40°C ~ 125°C |
|
807-076-556-202CONN EDGE DUAL FMALE 76POS 0.156 |
0 |
|
Datasheet |
807 | Box | Active | Non Specified - Dual Edge | Female | 38 | 76 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
845-118-544-207845 HIGH TEMP' SERIES (.100" (2. |
0 |
|
Datasheet |
845 | Box | Active | Non Specified - Dual Edge | Female | 59 | 118 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
842-096-556-212CONN EDGE DUAL FMALE 96POS 0.100 |
0 |
|
Datasheet |
842 | Box | Active | Non Specified - Dual Edge | Female | 48 | 96 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
845-036-500-104CONN EDGE SINGLE FML 36POS 0.100 |
0 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 36 | 36 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
807-076-555-204CONN EDGE DUAL FMALE 76POS 0.156 |
0 |
|
Datasheet |
807 | Box | Active | Non Specified - Dual Edge | Female | 38 | 76 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
845-036-500-101CONN EDGE SINGLE FML 36POS 0.100 |
0 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 36 | 36 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | - | -40°C ~ 125°C |
|
807-076-560-202CONN EDGE DUAL FMALE 76POS 0.156 |
0 |
|
Datasheet |
807 | Box | Active | Non Specified - Dual Edge | Female | 38 | 76 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
842-096-559-212CONN EDGE DUAL FMALE 96POS 0.100 |
0 |
|
Datasheet |
842 | Box | Active | Non Specified - Dual Edge | Female | 48 | 96 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
845-036-500-404CONN EDGE SINGLE FML 36POS 0.100 |
0 |
|
Datasheet |
845 | Box | Active | Non Specified - Single Edge | Female | 36 | 36 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.100" (2.54mm) | Single | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia | -40°C ~ 125°C |
|
887-042-500-807CONN EDGE DUAL FMALE 42POS 0.156 |
0 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Dual Edge | Female | 21 | 42 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
887-042-500-808CONN EDGE DUAL FMALE 42POS 0.156 |
0 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Dual Edge | Female | 21 | 42 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Top Mount Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
807-012-441-107CONN EDGE DUAL FMALE 24POS 0.156 |
0 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 12 | 24 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
887-042-500-207CONN EDGE DUAL FMALE 42POS 0.156 |
0 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Dual Edge | Female | 21 | 42 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
887-042-500-208CONN EDGE DUAL FMALE 42POS 0.156 |
0 |
|
Datasheet |
887 | Bulk | Active | Non Specified - Dual Edge | Female | 21 | 42 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Black | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
807-012-421-108CONN EDGE DUAL FMALE 24POS 0.156 |
0 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 12 | 24 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
807-012-401-103CONN EDGE DUAL FMALE 24POS 0.156 |
0 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Dual Edge | Female | 12 | 24 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
