Edgeboard Connectors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Card Type | Gender | Number of Positions/Bay/Row | Number of Positions | Card Thickness | Number of Rows | Pitch | Read Out | Features | Mounting Type | Termination | Contact Material | Contact Finish | Contact Finish Thickness | Contact Type | Color | Flange Feature | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
845-136-523-508CONN EDGE DUAL FML 136POS 0.100 |
0 |
|
Datasheet |
845 | Box | Active | Non Specified - Dual Edge | Female | 68 | 136 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Top Mount Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
807-078-558-202CONN EDGE DUAL FMALE 78POS 0.156 |
0 |
|
Datasheet |
807 | Box | Active | Non Specified - Dual Edge | Female | 39 | 78 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Green | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
842-112-544-208CONN EDGE DUAL FML 112POS 0.100 |
0 |
|
Datasheet |
842 | Box | Active | Non Specified - Dual Edge | Female | 56 | 112 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
845-136-541-208CONN EDGE DUAL FML 136POS 0.100 |
0 |
|
Datasheet |
845 | Box | Active | Non Specified - Dual Edge | Female | 68 | 136 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.100" (2.54mm) | Dual | - | Through Hole | Wire Wrap | Copper Alloy | Gold | 10.0µin (0.25µm) | Cantilever | Green | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
807-078-556-201CONN EDGE DUAL FMALE 78POS 0.156 |
0 |
|
Datasheet |
807 | Box | Active | Non Specified - Dual Edge | Female | 39 | 78 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | Card Extender | Board Edge, Straddle Mount | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Green | - | -40°C ~ 125°C |
|
857-014-501-112CONN EDGE DUAL FMALE 28POS 0.156 |
0 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 14 | 28 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder Eyelet(s) | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-014-521-112CONN EDGE DUAL FMALE 28POS 0.156 |
0 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 14 | 28 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
807-037-558-108CONN EDGE SGL FMALE 37POS 0.156 |
0 |
|
Datasheet |
807 | Box | Active | Non Specified - Single Edge | Female | 37 | 37 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Green | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|

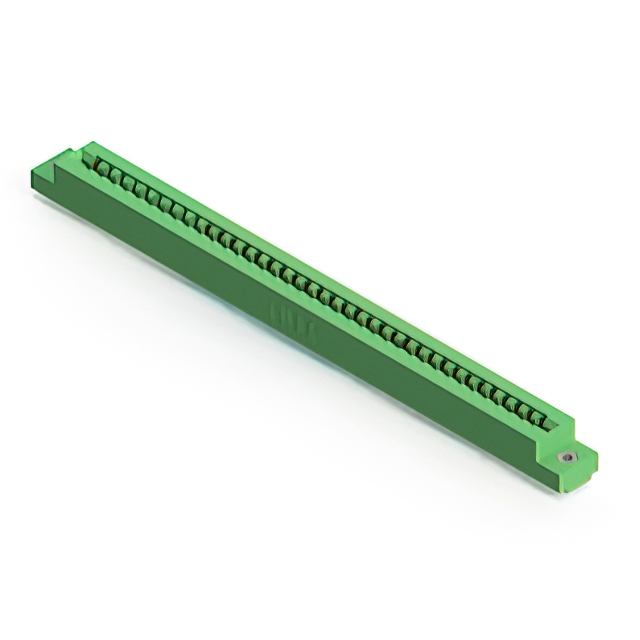

807-037-558-107CONN EDGE SGL FMALE 37POS 0.156 |
0 |
|
Datasheet |
807 | Box | Active | Non Specified - Single Edge | Female | 37 | 37 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Green | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
807-037-558-103CONN EDGE SGL FMALE 37POS 0.156 |
0 |
|
Datasheet |
807 | Box | Active | Non Specified - Single Edge | Female | 37 | 37 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Green | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
807-037-559-103CONN EDGE SGL FMALE 37POS 0.156 |
0 |
|
Datasheet |
807 | Box | Active | Non Specified - Single Edge | Female | 37 | 37 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Green | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
807-037-559-107CONN EDGE SGL FMALE 37POS 0.156 |
0 |
|
Datasheet |
807 | Box | Active | Non Specified - Single Edge | Female | 37 | 37 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Green | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
807-037-458-103CONN EDGE SGL FML 37POS 0.156 |
0 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Single Edge | Female | 37 | 37 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
807-037-458-107CONN EDGE SGL FML 37POS 0.156 |
0 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Single Edge | Female | 37 | 37 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Threaded Insert, M3 | -40°C ~ 125°C |
|
857-016-554-112CONN EDGE DUAL FMALE 32POS 0.156 |
0 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 16 | 32 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
807-037-459-108CONN EDGE SGL FML 37POS 0.156 |
0 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Single Edge | Female | 37 | 37 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
807-037-458-108CONN EDGE SGL FML 37POS 0.156 |
0 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Single Edge | Female | 37 | 37 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Top Opening, Threaded Insert, 4-40 | -40°C ~ 125°C |
|
807-037-459-103CONN EDGE SGL FML 37POS 0.156 |
0 |
|
Datasheet |
807 | Bulk | Active | Non Specified - Single Edge | Female | 37 | 37 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 1 | 0.156" (3.96mm) | Single | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Green | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia | -40°C ~ 125°C |
|
857-016-557-112CONN EDGE DUAL FMALE 32POS 0.156 |
0 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 16 | 32 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole, Right Angle | Solder | Copper Alloy | Gold | 10.0µin (0.25µm) | Semi Bellows | Black | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
|
857-016-454-112CONN EDGE DUAL FMALE 32POS 0.156 |
0 |
|
Datasheet |
857 | Bulk | Active | Non Specified - Dual Edge | Female | 16 | 32 | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) | 2 | 0.156" (3.96mm) | Dual | - | Through Hole, Right Angle | Solder | Copper Alloy | Tin | - | Semi Bellows | Black | Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia | -40°C ~ 125°C |
