Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C0805C224Z5VACTUCAP CER 0.22UF 50V Y5V 0805 |
4,900 |
|
Datasheet |
SMD Comm Y5V | Tape & Reel (TR) | Active | 0.22 µF | -20%, +80% | 50V | Y5V (F) | -30°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805C222K2RECAUTOCAP CER 0805 2.2NF 200V X7R |
4,818 |
|
Datasheet |
ESD SMD Auto X7R | Tape & Reel (TR) | Active | 2200 pF | ±10% | 200V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, ESD Protection | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|

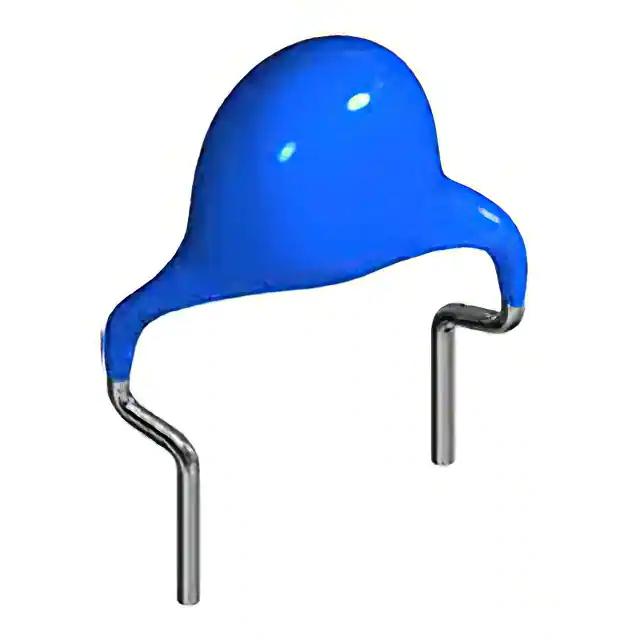

FG28X7R1H683KNT06CAP CER 0.068UF 50V X7R RADIAL |
4,594 |
|
Datasheet |
FG | Cut Tape (CT) | Not For New Designs | 0.068 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
-1,60x0,80x0,87mm.jpg)
|
C0603C220M4RACAUTOCAP CER 22PF 16V X7R 0603 |
4,517 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 22 pF | ±20% | 16V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
-0,90mm.jpg)
|
GCJ188R92A103KA01DCAP CER 10000PF 100V X8R 0603 |
4,478 |
|
Datasheet |
GCJ | Tape & Reel (TR) | Active | 10000 pF | ±10% | 100V | X8R | -55°C ~ 150°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
|
|
C0603C123K3RACTUCAP CER 0.012UF 25V X7R 0603 |
4,379 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.012 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
 W.jpg)
|
EWK107B7474MV-TCAP CER 0.47UF 16V X7R 0306 |
4,347 |
|
Datasheet |
LWDC™, LW | Tape & Reel (TR) | Not For New Designs | 0.47 µF | ±20% | 16V | X7R | -55°C ~ 125°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0306 (0816 Metric) | 0.031" L x 0.063" W (0.80mm x 1.60mm) | - | 0.022" (0.55mm) | - | - |
|
VJ0805Y104JXATW1BCCAP CER 0.1UF 50V X7R 0805 |
4,330 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 0.1 µF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.90mm) | - | - |
|
|
KGM15BR50J224KTCAP CER 0.22UF 6.3V X5R 0603 |
4,287 |
|
Datasheet |
KGM - X5R | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 6.3V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
-2,20mm-C-Series.jpg)
|
C3216X7R2J223M130AACAP CER 0.022UF 630V X7R 1206 |
4,282 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.022 µF | ±20% | 630V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.055" (1.40mm) | - | - |
|
C1608C0G2E102J080AECAP CER 1000PF 250V C0G/NP0 0603 |
4,244 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 1000 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
-0,35mm-W-BK.jpg)
|
TWK105BJ104MPHFCAP CER 0.1UF 25V X5R 0204 |
4,190 |
|
Datasheet |
W | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 25V | X5R | -55°C ~ 85°C | Low ESL | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0204 (0510 Metric) | 0.020" L x 0.039" W (0.52mm x 1.00mm) | - | 0.014" (0.35mm) | - | - |
|
|
KGM31BCG1H120JTCAP CER 12PF 50V C0G/NP0 1206 |
4,169 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 12 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
-0,95mm.jpg)
|
EMK107BC6225KA-TCAP CER 2.2UF 16V X6S 0603 |
4,166 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 16V | X6S | -55°C ~ 105°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - | - |
|
|
C0805C101J1RACTUCAP CER 100PF 100V X7R 0805 |
4,060 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 100 pF | ±5% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
.jpg)
|
CGA4J3X7R1H474M125ABCAP CER 0.47UF 50V X7R 0805 |
4,045 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
-1,45mm-C-Series.jpg)
|
C2012C0G2W331K060AACAP CER 330PF 450V C0G 0805 |
4,005 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 330 pF | ±10% | 450V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.030" (0.75mm) | - | - |
-0,95mm-C-Series.jpg)
|
C1608X7R1V684K080ACCAP CER 0.68UF 35V X7R 0603 |
4,000 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.68 µF | ±10% | 35V | X7R | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
|
C2012X7T2W333K125AACAP CER 0.033UF 450V X7T 0805 |
3,999 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.033 µF | ±10% | 450V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
-0,94mm.jpg)
|
08051C471K4T2ACAP CER 470PF 100V X7R 0805 |
3,995 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 470 pF | ±10% | 100V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
