Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CL31C332JBFNNNECAP CER 3300PF 50V C0G/NP0 1206 |
179,458 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 3300 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.055" (1.40mm) | - | - |
-0,14mm_BK.jpg)
|

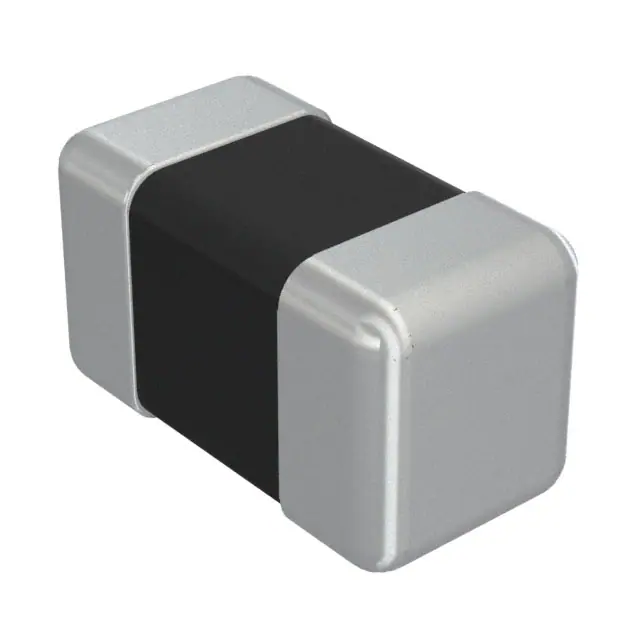

TMK021CG0R2BK-WCAP CER 0.2PF 25V C0G/NP0 008004 |
98,132 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 0.2 pF | ±0.1pF | 25V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 008004 (0201 Metric) | 0.010" L x 0.005" W (0.25mm x 0.13mm) | - | 0.006" (0.14mm) | - | - |
|
VJ0603D390JXPAJCAP CER 39PF 250V C0G/NP0 0603 |
42,011 |
|
Datasheet |
VJ HIFREQ | Tape & Reel (TR) | Active | 39 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.94mm) | - | - |
|
|
S302M33Z5UN63L6RCAP CER 3000PF 1KV Z5U RADIAL |
35,343 |
|
Datasheet |
S | Bulk | Active | 3000 pF | ±20% | 1000V (1kV) | Z5U | -30°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial, Disc | - | - | - | - | - |
|
|
C0805X103K5RACTUCAP CER 10000PF 50V X7R 0805 |
29,163 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 10000 pF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
CC0805JKNPO0BN472CAP CER 4700PF 100V C0G/NPO 0805 |
27,874 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 4700 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
C1206C223K1RACTUCAP CER 0.022UF 100V X7R 1206 |
23,031 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
VJ0805A220JXAACCAP CER 22PF 50V C0G/NP0 0805 |
20,818 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 22 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
-0,95mm.jpg)
|
GCM219R71H333KA37DCAP CER 0.033UF 50V X7R 0805 |
20,485 |
|
Datasheet |
GCM | Tape & Reel (TR) | Not For New Designs | 0.033 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
.JPG)
|
CBR04C119B5GACCAP CER 1.1PF 50V C0G/NP0 0402 |
19,985 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 1.1 pF | ±0.1pF | 50V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
K681J15C0GF5TH5CAP CER 680PF 50V C0G/NP0 RADIAL |
19,864 |
|
Datasheet |
Mono-Kap™ K | Tape & Reel (TR) | Active | 680 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.157" L x 0.102" W (4.00mm x 2.60mm) | 0.260" (6.60mm) | - | 0.197" (5.00mm) | Formed Leads |
|
A103M15X7RH5TAACAP CER 10000PF 100V X7R AXIAL |
19,799 |
|
Datasheet |
A | Tape & Reel (TR) | Active | 10000 pF | ±20% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Axial | 0.098" Dia x 0.150" L (2.50mm x 3.80mm) | - | - | - | Straight |
|
CQ0805BRNPOYBN1R6CAP CER 1.6PF 250V C0G/NPO 0805 |
19,068 |
|
Datasheet |
CQ | Tape & Reel (TR) | Active | 1.6 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.028" (0.70mm) | - | - |
|
|
KGM21BCG2A101GTCAP CER 100PF 100V C0G/NP0 0805 |
17,147 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 100 pF | ±2% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
|

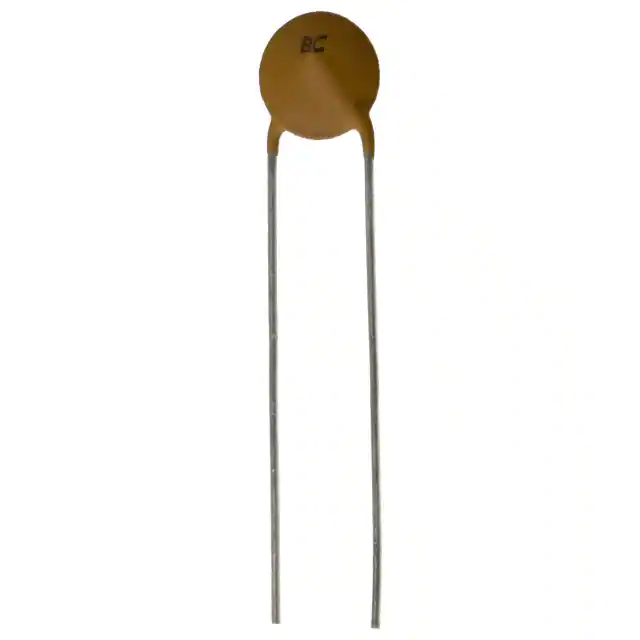

D472K33Y5PH63L6RCAP CER 4700PF 100V Y5P RADIAL |
17,134 |
|
Datasheet |
D | Bulk | Active | 4700 pF | ±10% | 100V | Y5P (B) | -30°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.348" Dia (8.83mm) | 0.236" (6.00mm) | - | 0.250" (6.35mm) | Straight |
|
|
K104M20X7RH53H5CAP CER 0.1UF 100V X7R RADIAL |
16,714 |
|
Datasheet |
Mono-Kap™ K | Bulk | Active | 0.1 µF | ±20% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.299" (7.60mm) | - | 0.197" (5.00mm) | Formed Leads |
|
|
VJ0603D330JXPAJCAP CER 33PF 250V C0G/NP0 0603 |
16,527 |
|
Datasheet |
VJ HIFREQ | Tape & Reel (TR) | Active | 33 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.94mm) | - | - |
|
|
K471J15C0GF5UH5CAP CER 470PF 50V C0G/NP0 RADIAL |
15,162 |
|
Datasheet |
Mono-Kap™ K | Cut Tape (CT) | Active | 470 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.157" L x 0.102" W (4.00mm x 2.60mm) | 0.260" (6.60mm) | - | 0.197" (5.00mm) | Formed Leads |
-0,60x0,30x0,33mm.jpg)
|
CBR02C508A5GACCAP CER 0.5PF 50V C0G/NP0 0201 |
15,057 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 0.5 pF | ±0.05pF | 50V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
|
CS0805KRX7RBBB102CAP CER 1000PF 500V X7R 0805 |
14,980 |
|
Datasheet |
CS | Tape & Reel (TR) | Active | 1000 pF | ±10% | 500V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
