Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DE1B3RA471KN4AH01FCAP CER 470PF 400V RADIAL |
2,173 |
|
Datasheet |
DE1 | Cut Tape (CT) | Active | 470 pF | ±10% | 400VAC | B | -40°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.276" Dia (7.00mm) | 0.394" (10.00mm) | - | 0.394" (10.00mm) | Straight |
|
C315C102K1G5TACAP CER 1000PF 10% 100V C0G RAD |
2,163 |
|
Datasheet |
GoldMax 300 Comm C0G | Bulk | Active | 1000 pF | ±10% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.183" (4.66mm) | - | 0.100" (2.54mm) | Straight |
|
FG26C0G2J121JNT06CAP CER 120PF 630V C0G RADIAL |
2,128 |
|
Datasheet |
FG | Cut Tape (CT) | Not For New Designs | 120 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|

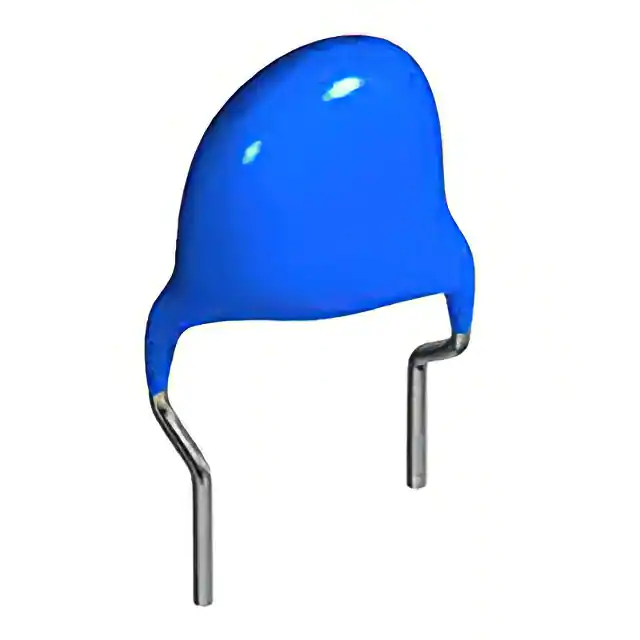

CC45SL3AD151JYVNACAP CER 150PF 1KV SL RADIAL |
2,074 |
|
Datasheet |
CC45 | Cut Tape (CT) | Active | 150 pF | ±5% | 1000V (1kV) | SL | -25°C ~ 125°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | 0.295" Dia (7.50mm) | 0.453" (11.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
.jpg)
|
CGA4J3X7T2E333K125AACAP CER 0.033UF 250V X7T 0805 |
1,980 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 0.033 µF | ±10% | 250V | X7T | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
FG18C0G1H682JNT06CAP CER 6800PF 50V C0G RADIAL |
1,893 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 6800 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads |
|
|
C0603C751J3GACTUCAP CER 750PF 25V C0G/NP0 0603 |
1,864 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 750 pF | ±5% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
C315C270J5G5TACAP CER 27PF 5% 50V C0G RADIAL |
1,842 |
|
Datasheet |
GoldMax 300 Comm C0G | Bulk | Active | 27 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.183" (4.66mm) | - | 0.100" (2.54mm) | Straight |
|
|
C0805C301J1GACTUCAP CER 300PF 100V C0G/NP0 0805 |
1,801 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 300 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
-0,95mm.jpg)
|
EMK107BC6475MA-TCAP CER 4.7UF 16V X6S 0603 |
1,793 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 16V | X6S | -55°C ~ 105°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - | - |
|
DE1B3RA101KN4AN01FCAP CER 100PF 250V RADIAL |
1,771 |
|
Datasheet |
DE1 | Cut Tape (CT) | Active | 100 pF | ±10% | 250VAC | B | -40°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.236" Dia (6.00mm) | 0.354" (9.00mm) | - | 0.394" (10.00mm) | Straight |
|
C322C472K5R5TACAP CER 4700PF 50V X7R RADIAL |
1,769 |
|
Datasheet |
GoldMax 300 Comm X7R | Bulk | Active | 4700 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.260" (6.60mm) | - | 0.200" (5.08mm) | Formed Leads |
|
SR215C103KAACAP CER 10000PF 50V X7R RADIAL |
1,613 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 10000 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
|
FG28C0G2E681JNT06CAP CER 680PF 250V C0G RADIAL |
1,609 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 680 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
FG18C0G1H562JNT00CAP CER 5600PF 50V C0G RADIAL |
1,595 |
|
Datasheet |
FG | Bulk | Not For New Designs | 5600 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads |
|
|
FG28X5R1E155KRT06CAP CER 1.5UF 25V X5R RADIAL |
1,588 |
|
Datasheet |
FG | Cut Tape (CT) | Not For New Designs | 1.5 µF | ±10% | 25V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
CGA4J3X8R1H154M125ABCAP CER 0.15UF 50V X8R 0805 |
1,559 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.15 µF | ±20% | 50V | X8R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
FA18C0G2A271JNU06CAP CER 270PF 100V C0G RADIAL |
1,515 |
|
Datasheet |
FA | Cut Tape (CT) | Not For New Designs | 270 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads |
|
VJ0603D560JXAQJHTCAP CER 56PF 50V C0G/NP0 0603 |
1,514 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 56 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.94mm) | - | - |
|
FK24X7R2E102KN000CAP CER 1000PF 250V X7R RADIAL |
1,433 |
|
Datasheet |
FK | Bulk | Not For New Designs | 1000 pF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.177" W (5.50mm x 4.50mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
