Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-1,45mm-C-Series.jpg)
|
C2012C0G2W562K125AACAP CER 5600PF 450V C0G 0805 |
2,289 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 5600 pF | ±10% | 450V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
VJ0805A332JXAATCAP CER 3300PF 50V C0G/NP0 0805 |
2,283 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 3300 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
C2012C0G2W562J125AACAP CER 5600PF 450V C0G 0805 |
2,166 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 5600 pF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
.jpg)
|
CGA4J1X8R1E105K125ADCAP CER 1UF 25V X8R 0805 EPOXY |
2,000 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 1 µF | ±10% | 25V | X8R | -55°C ~ 150°C | Epoxy Mountable, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC, Epoxy | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.059" (1.50mm) | - | - |
|
C0402C223K4PACTUCAP CER 0.022UF 16V X5R 0402 |
1,995 |
|
Datasheet |
SMD Comm X5R | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 16V | X5R | -55°C ~ 85°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
FA18C0G2A472JRU06CAP CER 4700PF 100V C0G/NP0 RAD |
1,945 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 4700 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads - Kinked |
|
C322C121K5G5TACAP CER 120PF 50V C0G/NP0 RADIAL |
1,941 |
|
Datasheet |
GoldMax 300 Comm C0G | Bulk | Active | 120 pF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.260" (6.60mm) | - | 0.200" (5.08mm) | Formed Leads |
|
C0805W472KDRACAUTOCAP CER 4700PF 1KV X7R 0805 |
1,845 |
|
Datasheet |
ArcShield SMD Auto X7R HV | Tape & Reel (TR) | Active | 4700 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage, ArcShield™ | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
|
VJ0603D0R9VXCQJHTCAP CER 0.9PF 200V C0G/NP0 0603 |
1,827 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 0.9 pF | ±0.05pF | 200V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.94mm) | - | - |
|
C322C221K1G5TACAP CER 220PF 100V NP0 RADIAL |
1,795 |
|
Datasheet |
GoldMax 300 Comm C0G | Bulk | Active | 220 pF | ±10% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.260" (6.60mm) | - | 0.200" (5.08mm) | Formed Leads |
|
C330C224K1R5TA7303CAP CER 0.22UF 100V X7R RADIAL |
1,653 |
|
Datasheet |
GoldMax 300 Comm X7R | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Formed Leads |
|
FG18X5R1E335KRT06CAP CER 3.3UF 25V X5R RADIAL |
1,606 |
|
Datasheet |
FG | Cut Tape (CT) | Not For New Designs | 3.3 µF | ±10% | 25V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads |
-3,20x1,60x1,10mm.jpg)
|
C1206C683K2RAC7800CAP CER 0.068UF 200V X7R 1206 |
1,593 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.068 µF | ±10% | 200V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.043" (1.10mm) | - | - |
.jpg)
|
CGA4C4C0G2W331J060AECAP CER 330PF 450V C0G/NP0 0805 |
1,592 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 330 pF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.030" (0.75mm) | - | - |
|
AC0603FRNPO9BN101CAP CER 100PF 50V C0G/NPO 0603 |
1,508 |
|
Datasheet |
AC | Tape & Reel (TR) | Active | 100 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
|

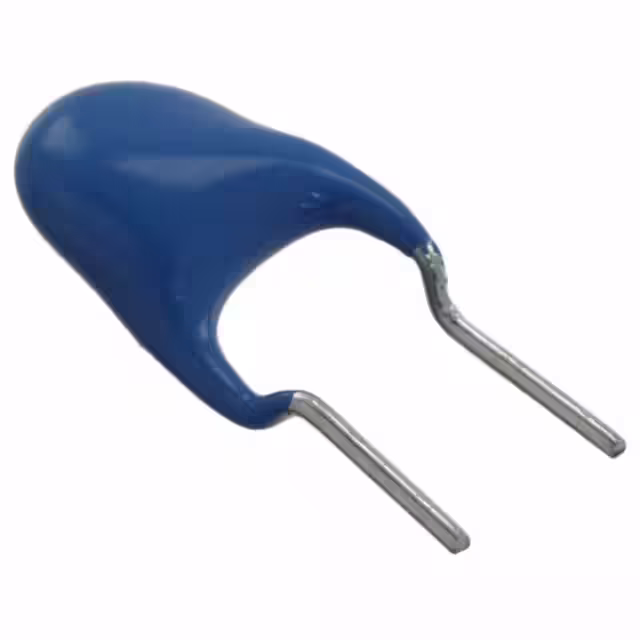

CC45SL3DD820JYGNACAP CER 82PF 2KV SL RADIAL |
1,504 |
|
Datasheet |
CC45 | Bulk | Active | 82 pF | ±5% | 2000V (2kV) | SL | -25°C ~ 125°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | 0.276" Dia (7.00mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
FG26C0G2J391JNT06CAP CER 390PF 630V C0G RADIAL |
1,472 |
|
Datasheet |
FG | Cut Tape (CT) | Not For New Designs | 390 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
KGM31BCG1H821JTCAP CER 820PF 50V C0G/NP0 1206 |
1,445 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 820 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
-1,60x0,80x0,87mm.jpg)
|
C0603X102K5RACAUTOCAP CER 1000PF 50V X7R 0603 |
1,425 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 1000 pF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
|
C0805X220J5GACTUCAP CER 22PF 50V C0G/NP0 0805 |
1,410 |
|
Datasheet |
SMD Comm C0G Flex | Tape & Reel (TR) | Active | 22 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
