Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

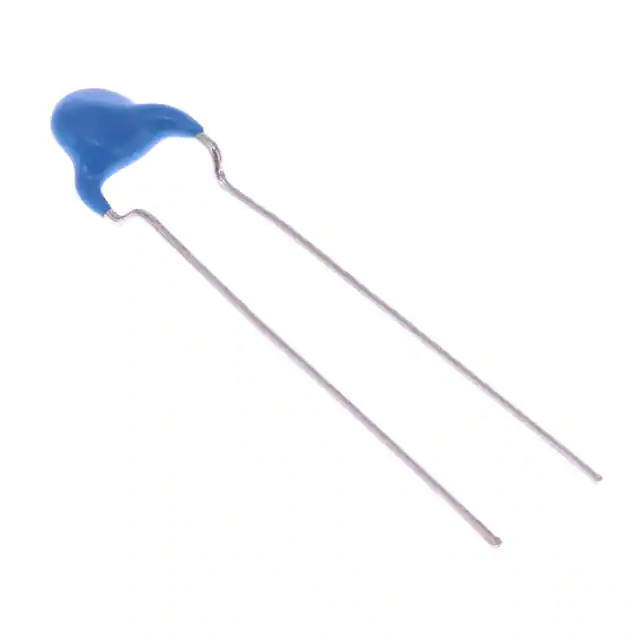

CK45-B3DD331KYGNACAP CER 330PF 2KV RADIAL |
1,122 |
|
Datasheet |
CK45 | Bulk | Active | 330 pF | ±10% | 2000V (2kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.217" Dia (5.50mm) | 0.374" (9.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
C315C331K2R5TACAP CER 330PF 200V X7R RADIAL |
1,112 |
|
Datasheet |
GoldMax 300 Comm X7R | Bulk | Active | 330 pF | ±10% | 200V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.183" (4.66mm) | - | 0.100" (2.54mm) | Straight |
|
CK45-B3AD471KYVNACAP CER 470PF 1KV RADIAL |
1,022 |
|
Datasheet |
CK45 | Cut Tape (CT) | Active | 470 pF | ±10% | 1000V (1kV) | B | -25°C ~ 105°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.217" Dia (5.50mm) | 0.374" (9.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
-0,60x0,30x0,33mm.jpg)
|
CBR02C180F3GACCAP CER 18PF 25V C0G/NP0 0201 |
91,256 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 18 pF | ±1% | 25V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
-1,00x0,50x0,55mm.jpg)
|
C0402C519C5GACAUTOCAP CER 5.1PF 50V C0G/NP0 0402 |
42,611 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 5.1 pF | ±0.25pF | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805X472K1RACAUTOCAP CER 4700PF 100V X7R 0805 |
42,605 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 4700 pF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (0.98mm) | - | - |
|
C412C223K1R5TA7200CAP CER 0.022UF 100V X7R AXIAL |
39,424 |
|
Datasheet |
AxiMax 400 Comm X7R | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Axial | 0.120" Dia x 0.170" L (3.05mm x 4.32mm) | - | - | - | Straight |
|
AC1206JRNPOYBN221CAP CER 220PF 250V C0G/NPO 1206 |
34,417 |
|
Datasheet |
AC | Tape & Reel (TR) | Active | 220 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.028" (0.70mm) | - | - |
|
VJ0805A220FXBPW1BCCAP CER 22PF 100V C0G/NP0 0805 |
30,794 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 22 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.028" (0.70mm) | - | - |
-1,00mm.jpg)
|
GRM219R71E474KA88DCAP CER 0.47UF 25V X7R 0805 |
25,568 |
|
Datasheet |
GRM | Tape & Reel (TR) | Not For New Designs | 0.47 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
-1,45mm.jpg)
|
TMK212AB7225KD-TRCAP CER 2.2UF 25V X7R 0805 |
24,996 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
|
|
AC1206JRNPOYBN101CAP CER 100PF 250V C0G/NPO 1206 |
18,568 |
|
Datasheet |
AC | Tape & Reel (TR) | Active | 100 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.028" (0.70mm) | - | - |
-0,33mm.jpg)
|
0201ZD392KAT2ACAP CER 3900PF 10V X5R 0201 |
15,701 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 3900 pF | ±10% | 10V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
|
C1206C100J1GACTUCAP CER 10PF 100V C0G/NP0 1206 |
14,368 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 10 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
CC1206KKX7RBBB223CAP CER 0.022UF 500V X7R 1206 |
14,201 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 500V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.057" (1.45mm) | - | - |
|
|
C0603C100F5GACAUTOCAP CER 10PF 50V C0G/NP0 0603 |
14,036 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 10 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
-3,20x1,60x0,88mm.jpg)
|
C1206C103KARACAUTOCAP CER 10000PF 250V X7R 1206 |
13,628 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 10000 pF | ±10% | 250V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
C0402C182K3GACTUCAP CER 1800PF 25V C0G/NP0 0402 |
13,604 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 1800 pF | ±10% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
KGM31VCG1H332JUCAP CER 3300PF 50V C0G/NP0 1206 |
13,424 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 3300 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.048" (1.22mm) | - | - |
|
|
CC1206FRNPO9BN222CAP CER 2200PF 50V C0G/NPO 1206 |
13,399 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 2200 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.028" (0.70mm) | - | - |
