Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
CGA5C2C0G1H223J060AACAP CER 0.022UF 50V C0G 1206 |
11,053 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.030" (0.75mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805C519KBGAC7800CAP CER 5.1PF 630V NP0 0805 |
10,986 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 5.1 pF | ±10% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
|

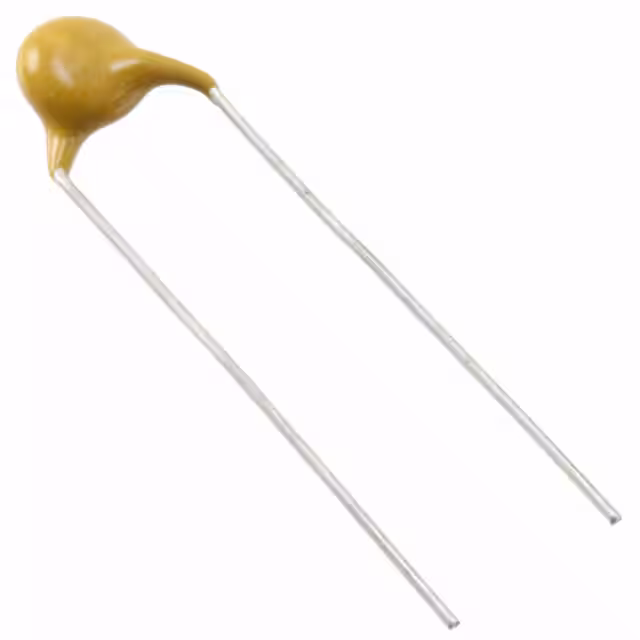

AY2331K29Y5SS63L7CAP CER 330PF 440VAC Y5S RADIAL |
10,813 |
|
Datasheet |
AY2 | Bulk | Active | 330 pF | ±10% | 440VAC | Y5S | -55°C ~ 125°C | - | AEC-Q200, X1, Y2 | Safety, Automotive | - | Through Hole | Radial, Disc | 0.295" Dia (7.50mm) | 0.413" (10.50mm) | - | 0.295" (7.50mm) | Straight |
|
C0603S103J5RACTUCAP CER 10000PF 50V X7R 0603 |
10,752 |
|
Datasheet |
SMD Comm X7R FE | Tape & Reel (TR) | Active | 10000 pF | ±5% | 50V | X7R | -55°C ~ 125°C | Floating Electrode | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
C0402C102J5HACTUCAP CER 1000PF 50V X8R 0402 |
10,602 |
|
Datasheet |
SMD Comm X8R HT150C | Tape & Reel (TR) | Active | 1000 pF | ±5% | 50V | X8R | -55°C ~ 150°C | Low ESL, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
-2,20mm-C-Series.jpg)
|
C3216C0G1H333J085AACAP CER 0.033UF 50V C0G 1206 |
10,416 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.039" (1.00mm) | - | - |
|
VJ0805D271JXAQJHTCAP CER 270PF 50V C0G/NP0 0805 |
10,389 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 270 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
06033C104K4Z4ACAP CER SMD |
10,343 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 25V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
C317C102J1G5TA7301CAP CER 1000PF 100V C0G/NP0 RAD |
10,170 |
|
Datasheet |
GoldMax 300 Comm C0G | Tape & Reel (TR) | Active | 1000 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
|

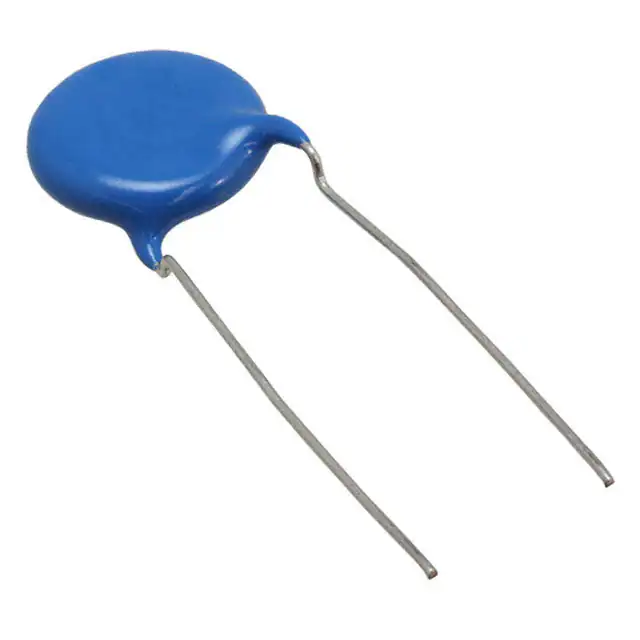

C717U102MYWDBAWL25CAP CER 1000PF 400VAC Y5U RADIAL |
9,894 |
|
Datasheet |
C700KJY SFTY X1-400 Y2-250 | Bulk | Active | 1000 pF | ±20% | 400VAC | Y5U (E) | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
|
C0402C471J3RACTUCAP CER 470PF 25V X7R 0402 |
9,835 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 470 pF | ±5% | 25V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
CGA5L2X8R1H474K160AACAP CER 0.47UF 50V X8R 1206 |
9,831 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 50V | X8R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
1C20C0G220J050BCAP CER 22PF 50V C0G/NP0 RADIAL |
9,197 |
|
Datasheet |
Monolythic®, 1C20 | Bulk | Active | 22 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.250" (6.35mm) | - | 0.200" (5.08mm) | Straight |
-1,30mm-Tan.jpg)
|
0805J1K00221KJTCAP CER |
9,132 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 220 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.054" (1.37mm) | - | - |
|
|
C1210C473K1RACTUCAP CER 0.047UF 100V X7R 1210 |
8,770 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.035" (0.88mm) | - | - |
|
|
C0805X106M9RACTUCAP CER 10UF 6.3V X7R 0805 |
8,619 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 10 µF | ±20% | 6.3V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.059" (1.50mm) | - | - |
|
|
C0402C391J5RACTUCAP CER 390PF 50V X7R 0402 |
8,467 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 390 pF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
KGM15CR51A106KMCAP CER 10UF 10V X5R 0603 |
8,446 |
|
Datasheet |
KGM - X5R | Tape & Reel (TR) | Active | 10 µF | ±10% | 10V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - | - |
|
S332K47X7RN63J7RCAP CER 3300PF 1KV X7R RADIAL |
8,396 |
|
Datasheet |
S | Bulk | Active | 3300 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial, Disc | - | - | - | - | - |
|
1C25Z5U103M050BCAP CER 10000PF 50V Z5U RADIAL |
8,289 |
|
Datasheet |
Monolythic®, 1C25 | Bulk | Active | 10000 pF | ±20% | 50V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.250" (6.35mm) | - | 0.250" (6.35mm) | Formed Leads |
