Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1206C102KCGACTUCAP CER 1000PF 500V C0G/NP0 1206 |
3,780 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 1000 pF | ±10% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.069" (1.75mm) | - | - |
|
|
C0805X331J5RACTUCAP CER 330PF 50V X7R 0805 |
3,530 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 330 pF | ±5% | 50V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
08051A101F4T2ACAP CER SMD |
3,433 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 100 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805C332J3GACAUTOCAP CER 3300PF 25V C0G/NP0 0805 |
3,300 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 3300 pF | ±5% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
|
|
C0805C270G5GACTUCAP CER 27PF 50V C0G/NP0 0805 |
3,144 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 27 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
-1,60mm.jpg)
|
GCJ31ML81C225MA01LCAP CER 2.2UF 16V X8L 1206 |
3,099 |
|
Datasheet |
GCJ | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 16V | X8L | -55°C ~ 150°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.053" (1.35mm) | - | - |
|
|
C0805C392J5GACAUTOCAP CER 3900PF 50V C0G/NP0 0805 |
2,921 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 3900 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.043" (1.10mm) | - | - |
-Formed-Leads.jpg)
|
FA16X8R1E105KNU06CAP CER 1UF 25V X8R RADIAL |
2,856 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 1 µF | ±10% | 25V | X8R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.098" (2.50mm) | Formed Leads |
|
|
C0805X154K1RACTUCAP CER SMD 0805 .15UF 100V 10% |
2,777 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 0.15 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
|
C317C759D5G5TACAP CER 7.5PF 50V NP0 RADIAL |
2,605 |
|
Datasheet |
GoldMax 300 Comm C0G | Bulk | Active | 7.5 pF | ±0.5pF | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
|
|
C0805X102KCRACAUTOCAP CER 1000PF 500V X7R 0805 |
2,500 |
|
Datasheet |
SMD Auto X7R HV Flex | Tape & Reel (TR) | Active | 1000 pF | ±10% | 500V | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
|
|
C0805C270F5GACTUCAP CER 27PF 50V C0G/NP0 0805 |
2,265 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 27 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
-Standard-MLCC.jpg)
|
060322006P80BQTLSMCAP CER 6.8PF 200V C0G/NP0 0603 |
2,173 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 6.8 pF | ±0.1pF | 200V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.031" (0.80mm) | - | - |
|
FG14C0G1H153JNT06CAP CER 0.015UF 50V C0G RADIAL |
2,148 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 0.015 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads |
|
RCER72A473K1DBH03ACAP CER 0.047UF 100V X7R RADIAL |
2,000 |
|
Datasheet |
RCE | Cut Tape (CT) | Active | 0.047 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.138" (3.50mm) | - | 0.098" (2.50mm) | Straight |
-2,1.jpg)
|

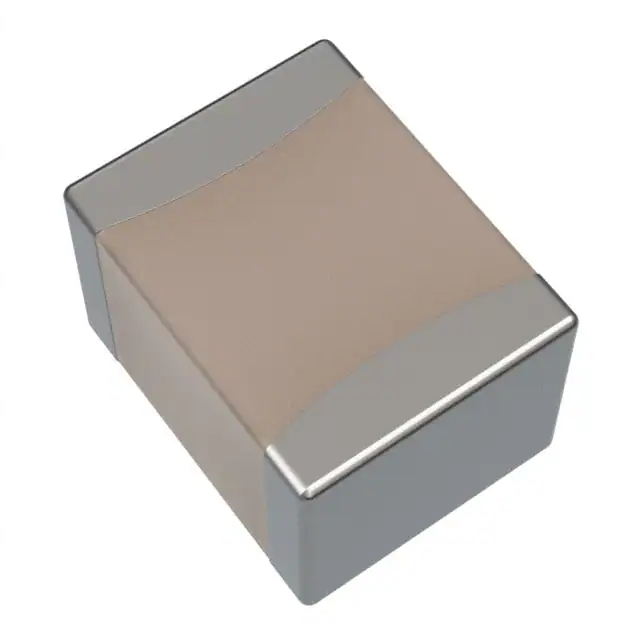

TMF325B7105MNHTCAP CER 1UF 25V X7R 1210 |
1,935 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 1 µF | ±20% | 25V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.083" (2.10mm) | - | - |
-3,20x1,60x1,35mm.jpg)
|
C1206X225K5RECAUTOCAP CER 2.2UF 50V X7R 1206 |
1,930 |
|
Datasheet |
ESD SMD Auto X7R | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive, ESD Protection | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.073" (1.85mm) | - | - |
|
RDER72E682K1M1H03ACAP CER 6800PF 250V X7R RADIAL |
1,862 |
|
Datasheet |
RDE | Cut Tape (CT) | Active | 6800 pF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) | Formed Leads |
|
|
FG14C0G1H223JNT06CAP CER 0.022UF 50V C0G RADIAL |
1,860 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 0.022 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads |
-3,20x1,60x1,90mm.jpg)
|
C1206X683KCRAC7800CAP CER 0.068UF 500V X7R 1206 |
1,565 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 0.068 µF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
