Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
CGA5L3X8R2A334K160ABCAP CER 0.33UF 100V X8R 1206 |
5,156 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 100V | X8R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
-1,20mm.jpg)
|

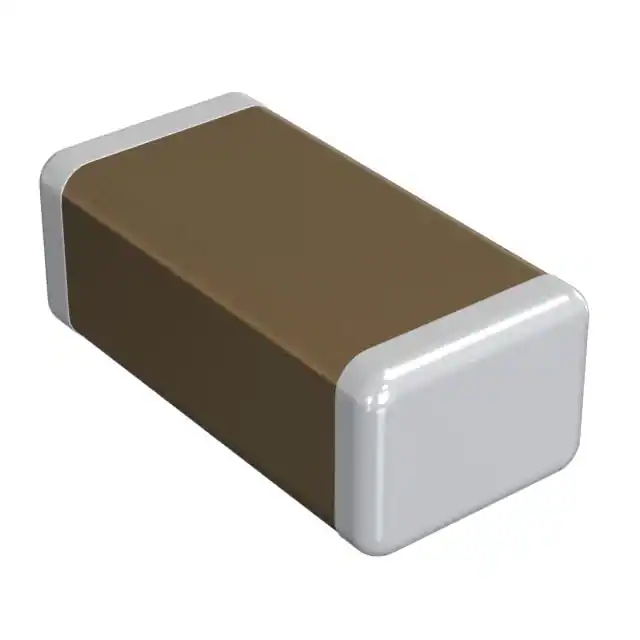

GRJ31CC71E106KE11LCAP CER 10UF 25V X7S 1206 |
4,514 |
|
Datasheet |
GRJ | Tape & Reel (TR) | Not For New Designs | 10 µF | ±10% | 25V | X7S | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.079" (2.00mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C104M2RAC7800CAP CER 0.1UF 200V X7R 1210 |
4,420 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 200V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.055" (1.40mm) | - | - |
-1,52mm-P-Code.jpg)
|
1206AC222KAZ1ACAP CER 2200PF 1KV X7R 1206 |
4,040 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 2200 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
CGA5K1X7S3D471K130AACAP CER 470PF 2KV X7S 1206 |
3,896 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 470 pF | ±10% | 2000V (2kV) | X7S | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.059" (1.50mm) | - | - |
|
C0805C564K8RACTUCAP CER 0.56UF 10V X7R 0805 |
3,743 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.56 µF | ±10% | 10V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
|
|
C0603C474K4RALTUCAP CER 0.47UF 16V X7R 0603 |
3,686 |
|
Datasheet |
SMD Comm X7R SnPb | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | High Reliability, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
-2,80mm-C-Series.jpg)
|
C3225X5R1C156M250AACAP CER 15UF 16V X5R 1210 |
3,441 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 15 µF | ±20% | 16V | X5R | -55°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
|
C0805C331F1GACTUCAP CER 330PF 100V C0G/NP0 0805 |
3,228 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 330 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
C1812C334J5RACTUCAP CER 0.33UF 50V X7R 1812 |
2,720 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.33 µF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
.JPG)
|
CBR06C820F5GACCAP CER 82PF 50V C0G/NP0 0603 |
2,486 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 82 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
|
RDER72J103K2K1H03BCAP CER 10000PF 630V X7R RADIAL |
2,470 |
|
Datasheet |
RDE | Bulk | Active | 10000 pF | ±10% | 630V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.124" W (5.50mm x 3.15mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | Formed Leads |
|
VJ1206Y104JXBTW1BCCAP CER 0.1UF 100V X7R 1206 |
2,468 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 0.1 µF | ±5% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.053" (1.35mm) | - | - |
-3,50mm_BN.jpg)
|
885342211001CAP CER 4700PF 200V X7R 1812 |
2,308 |
|
Datasheet |
WCAP-CSMH | Tape & Reel (TR) | Active | 4700 pF | ±10% | 200V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.053" (1.35mm) | - | - |
-1,30mm.jpg)
|
0805CA101KAT1ACAP CER 100PF 630V C0G/NP0 0805 |
2,230 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 100 pF | ±10% | 630V | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.083" L x 0.049" W (2.10mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
|
|
CGA5L1X7R1V475M160ACCAP CER 4.7UF 35V X7R 1206 |
2,057 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 35V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
-3,20x1,60x1,35mm.jpg)
|
C1206X225J3RECAUTOCAP CER 1206 2.2UF 25V X7R 5% |
1,855 |
|
Datasheet |
ESD SMD Auto X7R | Tape & Reel (TR) | Active | 2.2 µF | ±5% | 25V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive, ESD Protection | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.073" (1.85mm) | - | - |
-3,20x1,60x1,40mm.jpg)
|
C1206X104K1RAC3316CAP CER 1206 0.1UF 100V X7R |
1,660 |
|
Datasheet |
SMD Auto X7R VW80808 | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.055" (1.40mm) | - | - |
-3,20x1,60x1,20mm.jpg)
|
C1206X105J5RECAUTOCAP CER 1206 1UF 50V X7R 5% |
1,568 |
|
Datasheet |
ESD SMD Auto X7R | Tape & Reel (TR) | Active | 1 µF | ±5% | 50V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive, ESD Protection | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.047" (1.20mm) | - | - |
|
|
C1206F104K2RACAUTOCAP CER 0.1UF 200V X7R 1206 |
1,100 |
|
Datasheet |
SMD Auto X7R FO | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 200V | X7R | -55°C ~ 125°C | Open Mode | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.073" (1.85mm) | - | - |
