Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
CGA5L3X8R1H105M160ABCAP CER 1UF 50V X8R 1206 |
3,073 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 1 µF | ±20% | 50V | X8R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C223KCRACAUTOCAP CER 1210 22NF 500V X7R 10% |
2,990 |
|
Datasheet |
SMD Auto X7R HV | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.061" (1.55mm) | - | - |
|
C1210C273KARACTUCAP CER 0.027UF 250V X7R 1210 |
2,959 |
|
Datasheet |
SMD Comm X7R Tip-Ring | Tape & Reel (TR) | Active | 0.027 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.035" (0.88mm) | - | - |
-1,30mm-Tan.jpg)
|
0805Y1000103KXTCAP CER 10000PF 100V X7R 0805 |
2,849 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 10000 pF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.051" (1.30mm) | - | - |
-1,60x0,80x0,87mm.jpg)
|
C0603X474J4RACAUTOCAP CER 0.47UF 16V X7R 0603 |
2,805 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 0.47 µF | ±5% | 16V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
FG26C0G2A223JNT06CAP CER 0.022UF 100V C0G RADIAL |
2,758 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 0.022 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
-1,55mm-C-Series.jpg)
|
C4532X7R3D222M130KACAP CER 2200PF 2KV X7R 1812 |
2,561 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 2200 pF | ±20% | 2000V (2kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.059" (1.50mm) | - | - |
 18.jpg)
|

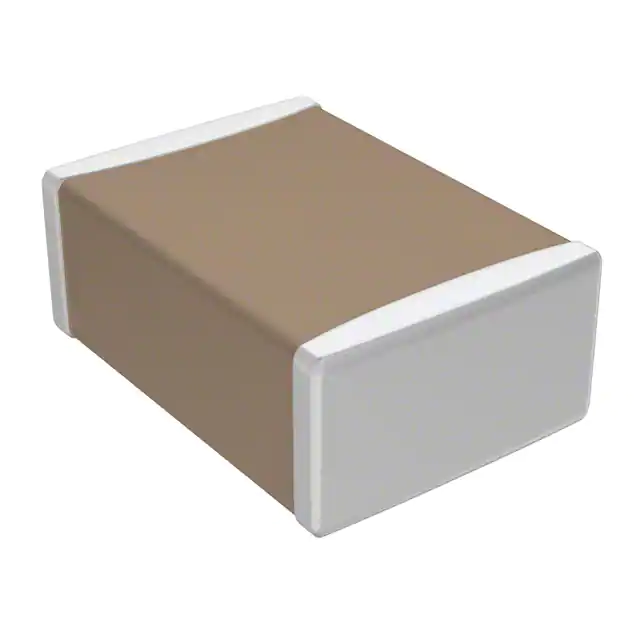

C4532X7R1H105M160KACAP CER 1UF 50V X7R 1812 |
2,465 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 1 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
-0,80mm-Tan.jpg)
|
0603Y0500103KETCAP CER 10000PF 50V X7R 0603 |
2,334 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 10000 pF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.031" (0.80mm) | - | - |
|
RDE7U3A470J2M1H03ACAP CER 47PF 1KV U2J RADIAL |
2,121 |
|
Datasheet |
RDE | Tape & Reel (TR) | Active | 47 pF | ±5% | 1000V (1kV) | U2J | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.124" W (5.50mm x 3.15mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | Formed Leads |
|
|
0805J0500101JCTCAP CER 100PF 50V C0G/NP0 0805 |
1,867 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 100 pF | ±5% | 50V | C0G, NP0 (1B) | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.051" (1.30mm) | - | - |
-2,20mm-C-Series.jpg)
|
C3216X8R1E475M160AECAP CER 4.7UF 25V X8R 1206 |
1,557 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 4.7 µF | ±20% | 25V | X8R | -55°C ~ 150°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
|
|
C3216X7R1V225K160ABCAP CER 2.2UF 35V X7R 1206 |
1,453 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 2.2 µF | ±10% | 35V | X7R | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
-1,25mm.jpg)
|
GRM31BR72E153KW01LCAP CER 0.015UF 250V X7R 1206 |
1,259 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.015 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.049" (1.25mm) | - | - |
|
SR301E474MARCAP CER 0.47UF 100V Z5U RADIAL |
1,178 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 0.47 µF | ±20% | 100V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.125" W (7.62mm x 3.18mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
|
600L1R1AT200T4KCAP CER 1.1PF 200V C0G/NP0 0402 |
113,154 |
|
Datasheet |
ATC 600L | Tape & Reel (TR) | Active | 1.1 pF | ±0.05pF | 200V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.60mm) | - | - |
|
VJ1210A472JXAATCAP CER 4700PF 50V C0G/NP0 1210 |
20,432 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 4700 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.067" (1.70mm) | - | - |
-1,52mm-P-Code.jpg)
|
12103C105KAT2ACAP CER 1UF 25V X7R 1210 |
12,447 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 1 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.098" W (3.30mm x 2.50mm) | - | 0.057" (1.45mm) | - | - |
|
|
C0603C102G5GACTUCAP CER 1000PF 50V C0G/NP0 0603 |
10,913 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 1000 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
C3216X8R1H105K160AECAP CER 1UF 50V X8R 1206 |
9,150 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X8R | -55°C ~ 150°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
