Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KGM32HR73A472KUCAP CER 4700PF 1KV X7R 1210 |
3,583 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 4700 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.098" W (3.30mm x 2.50mm) | - | 0.071" (1.80mm) | - | - |
|
|
C1206X103KCRACAUTOCAP CER 10000PF 500V X7R 1206 |
3,262 |
|
Datasheet |
SMD Auto X7R HV Flex | Tape & Reel (TR) | Active | 10000 pF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.053" (1.35mm) | - | - |
|
FA26C0G2A473JRU06CAP CER 0.047UF 100V C0G/NP0 RAD |
2,682 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.047 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
KGM32ECG2D152JUCAP CER 1500PF 200V C0G/NP0 1210 |
2,667 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 1500 pF | ±5% | 200V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.057" (1.45mm) | - | - |
-2,20mm-C-Series.jpg)
|
C3216NP02E223J160AACAP CER 0.022UF 250V NP0 1206 |
2,603 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 150°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
|
|
C1206C122GCGACTUCAP CER 1200PF 500V C0G/NP0 1206 |
2,602 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 1200 pF | ±2% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.053" (1.35mm) | - | - |
-2,70mm.jpg)
|
JMK325AC7107MM-TCAP CER 100UF 6.3V X7S 1210 |
1,913 |
|
- |
M | Tape & Reel (TR) | Not For New Designs | 100 µF | ±20% | 6.3V | X7S | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
|
C3216NP02W153J160AACAP CER 0.015UF 450V NP0 1206 |
1,286 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.015 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 150°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
-2,80mm-C-Series.jpg)
|
C3225X7S3D102M200AACAP CER 1000PF 2KV X7S 1210 |
1,169 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 1000 pF | ±20% | 2000V (2kV) | X7S | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|
|
JMK325ABJ107MMHPCAP CER 100UF 6.3V X5R 1210 |
1,043 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 100 µF | ±20% | 6.3V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
VJ1206Y103KBBAT4XCAP CER 10000PF 100V X7R 1206 |
72,280 |
|
Datasheet |
VJ OMD | Tape & Reel (TR) | Active | 10000 pF | ±10% | 100V | X7R | -55°C ~ 125°C | Open Mode, Soft Termination | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.132" L x 0.063" W (3.35mm x 1.60mm) | - | 0.067" (1.70mm) | - | - |
-1,40mm.jpg)
|
0805ZD106MAT2ACAP CER 10UF 10V X5R 0805 |
18,623 |
|
Datasheet |
KGM - X5R | Tape & Reel (TR) | Active | 10 µF | ±20% | 10V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|

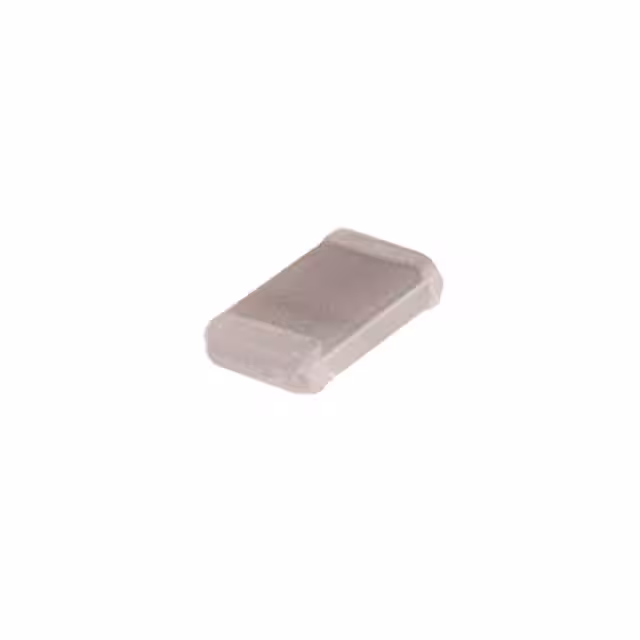

C1206C362FCGACAUTOCAP CER 3600PF 500V C0G/NP0 1206 |
15,051 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 3600 pF | ±1% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.039" (1.00mm) | - | - |
-1,25mm.jpg)
|
GCM31MR71E105KA37LCAP CER 1UF 25V X7R 1206 |
14,970 |
|
Datasheet |
GCM | Tape & Reel (TR) | Not For New Designs | 1 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.049" (1.25mm) | - | - |
|
HBE102MBBCF0KRCAP CER 1000PF 2KV RADIAL |
13,762 |
|
Datasheet |
HBE | Bulk | Active | 1000 pF | ±20% | 2000V (2kV) | - | -40°C ~ 85°C | High Voltage | - | General Purpose | - | Through Hole | Radial, Disc | 0.276" Dia (7.00mm) | 0.394" (10.00mm) | - | 0.295" (7.50mm) | Straight |
|
|
C0805C225K4RALTUCAP CER 2.2UF 16V X7R 0805 |
10,301 |
|
Datasheet |
SMD Comm X7R SnPb | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | High Reliability, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
|
|
C3216X7T2E224K160AECAP CER 0.22UF 250V X7T 1206 |
9,550 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 250V | X7T | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.063" (1.60mm) | - | - |
|
C921U681KVYDBAWL35CAP CER 680PF 400VAC Y5P RADIAL |
9,215 |
|
Datasheet |
C900AH SFTY X1-400 Y1-400 | Bulk | Active | 680 pF | ±10% | 400VAC | Y5P (B) | -40°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.354" Dia (9.00mm) | - | - | 0.394" (10.00mm) | Formed Leads - Kinked |
|
|
KGQ21HCG2D220GTCAP CER 22PF 200V NP0 0805 |
8,790 |
|
Datasheet |
KGQ | Tape & Reel (TR) | Active | 22 pF | ±2% | 200V | C0G, NP0 | -55°C ~ 125°C | Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.045" (1.15mm) | - | - |
.jpg)
|
CC1210KKX7R9BB225CAP CER 2.2UF 50V X7R 1210 |
7,770 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
