Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C330C822J1G5TACAP CER 8200PF 100V NP0 RADIAL |
1,068 |
|
Datasheet |
GoldMax 300 Comm C0G | Bulk | Active | 8200 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Formed Leads |
|
WKP471MCPEF0KRCAP CER 470PF 760VAC Y5U RADIAL |
911 |
|
Datasheet |
WKP | Bulk | Active | 470 pF | ±20% | 760VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | - | 0.492" (12.50mm) | Straight |
-3,20x1,60x1,20mm.jpg)
|
C1206X101KCRAC7800CE SMD 1206 100PF 10% 500V X7R F |
677 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 100 pF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.047" (1.20mm) | - | - |
|
|
C330C682J1G5TACAP CER 6800PF 100V NP0 RADIAL |
559 |
|
Datasheet |
GoldMax 300 Comm C0G | Bulk | Active | 6800 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Formed Leads |
|
KGQ32DCG2A102JTCAP CER 1000PF 100V NP0 1210 |
96,291 |
|
Datasheet |
KGQ | Tape & Reel (TR) | Active | 1000 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.49mm) | - | 0.055" (1.40mm) | - | - |
-Standard-MLCC.jpg)
|
1206Y1000104KXTCAP CER 0.1UF 100V X7R 1206 |
18,145 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.063" (1.60mm) | - | - |
|
|
CL32Y476MQVVPNECAP CER 47UF 6.3V X7S 1210 |
14,008 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 47 µF | ±20% | 6.3V | X7S | -55°C ~ 125°C | General Purpose | AEC-Q200 | Automotive | - | Surface Mount, MLCC, Epoxy | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
VJ1210Y223KXEATCAP CER 0.022UF 500V X7R 1210 |
11,970 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 500V | X7R | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.067" (1.70mm) | - | - |
|
W2L16C473MAT1ACAP CER 0.047UF 6.3V X7R 0508 |
8,751 |
|
Datasheet |
IDC, W | Tape & Reel (TR) | Active | 0.047 µF | ±20% | 6.3V | X7R | -55°C ~ 125°C | Low ESL (Multi-Terminal) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0508 (1220 Metric) | 0.050" L x 0.080" W (1.27mm x 2.03mm) | - | 0.037" (0.95mm) | - | - |
.jpg)
|
CC1808KKX7RCBB103CAP CER 10000PF 1KV X7R 1808 |
7,336 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 10000 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | - | 0.057" (1.45mm) | - | - |
|
|
C1206C392KCRACTUCAP CER 3900PF 500V X7R 1206 |
5,745 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 3900 pF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.053" (1.35mm) | - | - |
|
|
KGM21ACG1H562JUCAP CER 5600PF 50V C0G/NP0 0805 |
5,676 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 5600 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
-0,94mm-J-Code.jpg)
|
LD065C105KAB2ACAP CER 1UF 50V X7R 1206 |
4,687 |
|
Datasheet |
LD | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
-1,80mm.jpg)
|
GRT31CR61C106KE01LCAP CER 10UF 16V X5R 1206 |
4,669 |
|
Datasheet |
GRT | Tape & Reel (TR) | Not For New Designs | 10 µF | ±10% | 16V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|

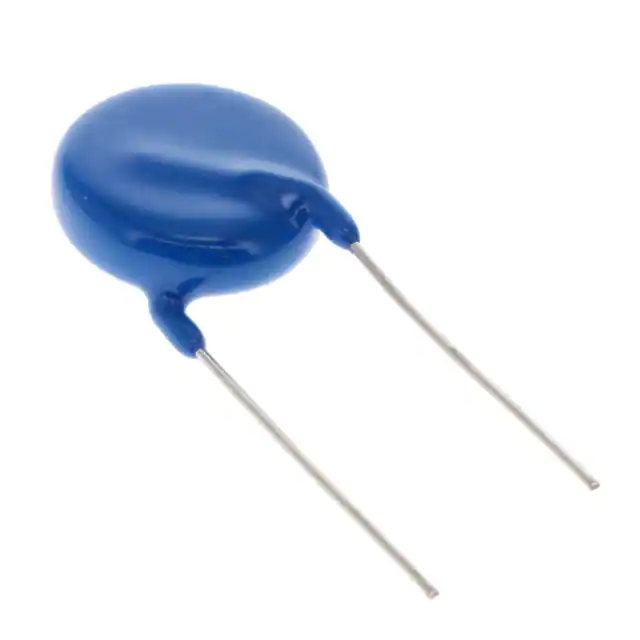

VKO222MCQCF0KRCAP CER 2200PF 440VAC Y5U RADIAL |
4,020 |
|
Datasheet |
VKO | Bulk | Active | 2200 pF | ±20% | 440VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | 0.295" (7.50mm) | Straight |
|
|
C1206X106M3RACTUCAP CER 10UF 25V X7R 1206 |
4,000 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 10 µF | ±20% | 25V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.077" (1.95mm) | - | - |
|
|
QEDB501Q101K1GV001ECAP CER 100PF 500V NP0 1111 |
3,000 |
|
Datasheet |
E | Tape & Reel (TR) | Active | 100 pF | ±10% | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, High Voltage | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
C0805C472F5GECTUCAP CER 0805 4.7NF 50V C0G 1% |
2,911 |
|
Datasheet |
ESD SMD Comm C0G | Tape & Reel (TR) | Active | 4700 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Low ESR | - | ESD Protection | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
-2,80mm.jpg)
|
18121A472JAT2ACAP CER 4700PF 100V C0G/NP0 1812 |
2,309 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 4700 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.057" (1.45mm) | - | - |
-3,20x1,60x1,35mm.jpg)
|
C1206C560JGGAC7800CAP CER 56PF 2KV NP0 1206 |
2,240 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 56 pF | ±5% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.069" (1.75mm) | - | - |
