Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C440C103J5G5TA7200CAP CER 10000PF 50V C0G/NP0 AXL |
2,477 |
|
Datasheet |
AxiMax 400 Comm C0G | Tape & Reel (TR) | Active | 10000 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Axial | 0.150" Dia x 0.400" L (3.81mm x 10.16mm) | - | - | - | Straight |
|
C1206X222KCRACTUCAP CER 2200PF 500V X7R 1206 |
2,140 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 2200 pF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.053" (1.35mm) | - | - |
-2,20mm-C-Series.jpg)
|
C3216NP02A333J160AACAP CER 0.033UF 100V NP0 1206 |
1,929 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 150°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
-2,70mm-C-Series.jpg)
|
C5750X7R2J154K160KACAP CER 0.15UF 630V X7R 2220 |
1,918 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.15 µF | ±10% | 630V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.071" (1.80mm) | - | - |
.jpg)
|
CGA5H1C0G2A473J115AECAP CER .047UF 100V C0G/NP0 1206 |
1,707 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.051" (1.30mm) | - | - |
|
RDER73A333K4M1H03ACAP CER 0.033UF 1KV X7R RADIAL |
1,544 |
|
Datasheet |
RDE | Cut Tape (CT) | Active | 0.033 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.295" L x 0.157" W (7.50mm x 4.00mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads |
 2.5.jpg)
|
CGA6N3C0G2E333J230AACAP CER 0.033UF 250V C0G 1210 |
1,537 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.098" (2.50mm) | - | - |
-2,80mm_BN.jpg)
|
885012109007CAP CER 47UF 10V X5R 1210 |
1,284 |
|
Datasheet |
WCAP-CSGP | Tape & Reel (TR) | Active | 47 µF | ±20% | 10V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
|
C1812C102J2GACTUCAP CER 1000PF 200V C0G/NP0 1812 |
1,180 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 1000 pF | ±5% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|
|
C0603T104J5RACTUCAP CER 0.1UF 50V X7R 0603 |
1,094 |
|
Datasheet |
SMD COTS X7R | Tape & Reel (TR) | Active | 0.1 µF | ±5% | 50V | X7R | -55°C ~ 125°C | - | COTS | High Reliability, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
-2,80mm.jpg)
|
1812CC473KAT1ACAP CER 0.047UF 630V X7R 1812 |
989 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 630V | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
-3,50mm.jpg)
|
HMK432BJ225KM-TCAP CER 2.2UF 100V X5R 1812 |
706 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 100V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.106" (2.70mm) | - | - |
|
|
C1206C222JGRACTUCAP CER 2200PF 2000V X7R 1206 |
684 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 2200 pF | ±5% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.069" (1.75mm) | - | - |
|
|
C1812C332J2GACTUCAP CER 3300PF 200V C0G/NP0 1812 |
653 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 3300 pF | ±5% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|
C1210C104JARACAUTOCAP CER 0.1UF 250V X7R 1210 |
375 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 0.1 µF | ±5% | 250V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.055" (1.40mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805C472F1GECAUTO7210CAP CER 0805 4.7NF 100V C0G 1% |
27,476 |
|
Datasheet |
ESD SMD Auto C0G | Tape & Reel (TR) | Active | 4700 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Low ESR | AEC-Q200 | Automotive, ESD Protection | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
|
CBR08C339BAGACCAP CER 3.3PF 250V C0G/NP0 0805 |
6,490 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 3.3 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
-2,80mm-C-Series.jpg)
|
C3225C0G2J153J160AACAP CER 0.015UF 630V C0G 1210 |
5,998 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.015 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.071" (1.80mm) | - | - |
|
|
FK22C0G2J103JN000CAP CER 10000PF 630V C0G RADIAL |
5,354 |
|
Datasheet |
FK | Bulk | Not For New Designs | 10000 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.295" L x 0.157" W (7.50mm x 4.00mm) | 0.315" (8.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|

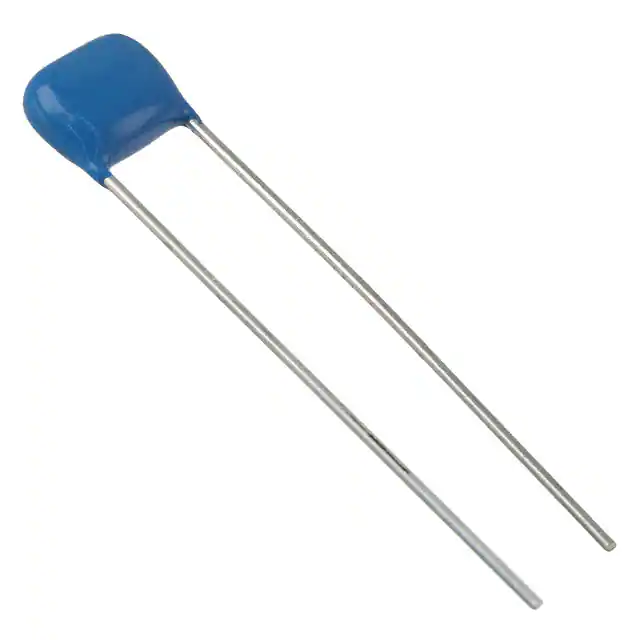

KVD101L104M32A0T00CAP CER 0.1UF 100V X8L RADIAL |
4,912 |
|
Datasheet |
KVD | Cut Tape (CT) | Active | 0.1 µF | ±20% | 100V | X8L | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.197" L x 0.138" W (5.00mm x 3.50mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | Straight |
