Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FK22C0G2A683JN000CAP CER 0.068UF 100V C0G RADIAL |
139 |
|
Datasheet |
FK | Bulk | Not For New Designs | 0.068 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.295" L x 0.157" W (7.50mm x 4.00mm) | 0.315" (8.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
 15.jpg)
|
GA342QR7GF151KW01LCAP CER 150PF 250VAC X7R 1808 |
7,520 |
|
Datasheet |
GA3 | Tape & Reel (TR) | Active | 150 pF | ±10% | 250VAC | X7R | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | - | 0.059" (1.50mm) | - | - |
-1,30mm-Tan.jpg)
|
0805Y0500104KXTM01CAP CER 0.1UF 50V X7R 0805 |
6,067 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.051" (1.30mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812X474KARAC7800CAP CER 0.47UF 250V X7R 1812 |
4,712 |
|
Datasheet |
SMD Comm X7R Tip-Ring | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 250V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.073" (1.85mm) | - | - |
|
FA20C0G2J153JNU06CAP CER 0.015UF 630V C0G RADIAL |
4,608 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.015 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
C2220C224KBRACTUCAP CER 0.22UF 630V X7R 2220 |
4,403 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 630V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.071" (1.80mm) | - | - |
-3,20x1,60x1,00mm.jpg)
|
C1206C103F3GECAUTOCAP CER 1206 10NF 25V C0G 1% |
2,566 |
|
Datasheet |
ESD SMD Auto C0G | Tape & Reel (TR) | Active | 10000 pF | ±1% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Low ESR | AEC-Q200 | Automotive, ESD Protection | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.039" (1.00mm) | - | - |
|
FA22X7R1H475KRU06CAP CER 4.7UF 50V X7R RADIAL |
2,445 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 4.7 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.335" (8.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
-1,80mm-C-Series.jpg)
|
C1825C105M5UAC7800CAP CER 1UF 50V Z5U 1825 |
2,069 |
|
Datasheet |
SMD Comm Z5U | Tape & Reel (TR) | Active | 1 µF | ±20% | 50V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.049" (1.25mm) | - | - |
|
|
FA22C0G1H154JNU06CAP CER 0.15UF 50V C0G RADIAL |
1,078 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.15 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.335" (8.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|

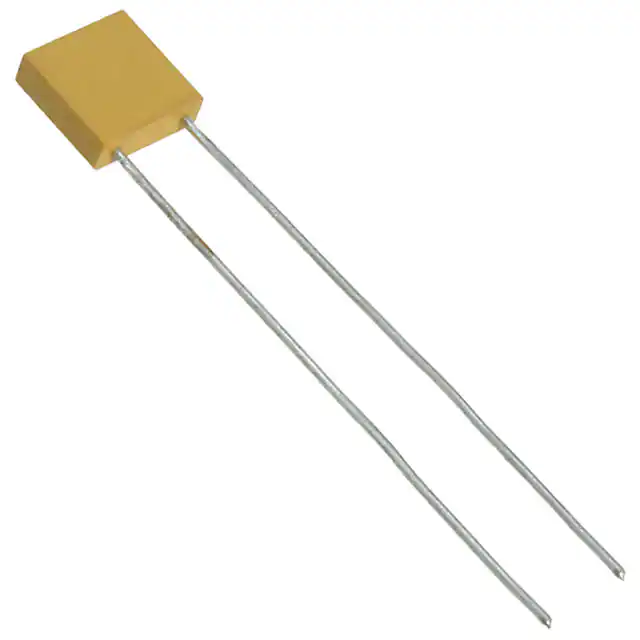

MR062X103KSACAP CER 10000PF 200V RADIAL |
585 |
|
Datasheet |
Military, MIL-PRF-39014, Ceralam® MR06 | Bulk | Active | 10000 pF | ±10% | 200V | - | - | - | - | High Reliability | S (0.001%) | Through Hole | Radial | 0.290" L x 0.090" W (7.36mm x 2.28mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
|
C1825C155M5UAC7800CAP CER 1.5UF 50V Z5U 1825 |
500 |
|
Datasheet |
SMD Comm Z5U | Tape & Reel (TR) | Active | 1.5 µF | ±20% | 50V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.051" (1.30mm) | - | - |
|
C320C112JDG5TACAP CER 1100PF 1KV NP0 RADIAL |
270 |
|
Datasheet |
GoldMax 300 Comm C0G HV | Bulk | Active | 1100 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.150" W (5.08mm x 3.81mm) | 0.290" (7.36mm) | - | 0.100" (2.54mm) | Straight |
|
V30BZ682M1SXCAP CER 6800PF 100V X7R NONS SMD |
2,800 |
|
Datasheet |
V | Tray | Active | 6800 pF | ±20% | 100V | X7R | -55°C ~ 125°C | Epoxy Mountable, Single Layer | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, SLCC, Epoxy | 0303 (0808 Metric) | 0.030" L x 0.030" W (0.76mm x 0.76mm) | - | 0.025" (0.64mm) | - | - |
|
|
C1206H272J2GACTUCAP CER 2700PF 200V C0G/NP0 1206 |
3,880 |
|
Datasheet |
SMD Indust C0G HT200C | Tape & Reel (TR) | Active | 2700 pF | ±5% | 200V | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.039" (1.00mm) | - | - |
-2,29mm-X-Code.jpg)
|
1210ZG226ZAT2ACAP CER 22UF 10V Y5V 1210 |
3,395 |
|
Datasheet |
KGM - Y5V | Tape & Reel (TR) | Active | 22 µF | -20%, +80% | 10V | Y5V (F) | -30°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.090" (2.29mm) | - | - |
-2,00mm-Tan.jpg)
|
1808JA250101JKTS2XCAP CER 100PF 250VAC C0GNP0 1808 |
2,464 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 100 pF | ±5% | 250VAC | C0G, NP0 (1B) | -55°C ~ 125°C | DC Annex H, Humidity 3B Annex I, High Voltage | AEC-Q200, X2 | Safety, Automotive | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | - | 0.059" (1.50mm) | - | - |
|
564R30GAD20CAP CER 2000PF 3KV Z5U RADIAL |
833 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 2000 pF | ±20% | 3000V (3kV) | Z5U | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | - | - | - | - | Straight |
-1,40-1,70.jpg)
|
C1210X103KBRACAUTOCAP CER 10000PF 630V X7R 1210 |
740 |
|
Datasheet |
SMD Auto X7R HV Flex | Tape & Reel (TR) | Active | 10000 pF | ±10% | 630V | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.061" (1.55mm) | - | - |
-2.3.jpg)
|
CGA9N2X7R2A105M230KACAP CER 1UF 100V X7R 2220 |
712 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 1 µF | ±20% | 100V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.098" (2.50mm) | - | - |
