Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2,20mm-C-Series.jpg)
|
C3216X5R2J153K130AACAP CER 0.015UF 630V X5R 1206 |
1,960 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.015 µF | ±10% | 630V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.059" (1.50mm) | - | - |
.jpg)
|

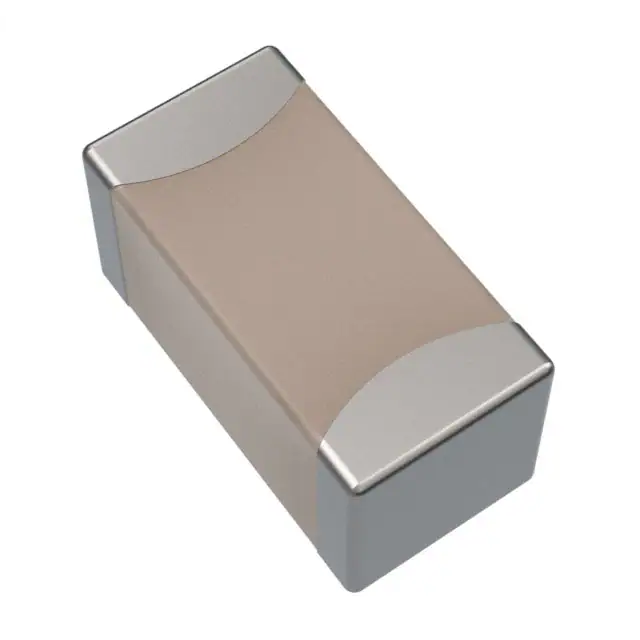

EMF316B7105MLHTCAP CER 1UF 16V X7R 1206 |
1,960 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 1 µF | ±20% | 16V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, SMPS Filtering | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
FG28C0G2A821JNT06CAP CER 820PF 100V C0G RADIAL |
1,953 |
|
Datasheet |
FG | Cut Tape (CT) | Not For New Designs | 820 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
-0,90mm.jpg)
|
TMK316BJ475KLHTCAP CER 4.7UF 25V X5R 1206 |
1,900 |
|
- |
M | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 25V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
FG18C0G2A821JNT06CAP CER 820PF 100V C0G RADIAL |
1,779 |
|
Datasheet |
FG | Cut Tape (CT) | Not For New Designs | 820 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads |
.jpg)
|
CGA5L2X5R1H684M160AACAP CER 0.68UF 50V X5R 1206 |
1,711 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 0.68 µF | ±20% | 50V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
|
|
CGA5L2X5R1H105K160AACAP CER 1UF 50V X5R 1206 |
1,644 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 1 µF | ±10% | 50V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
|
FA18X8R1H102KNU06CAP CER 1000PF 50V X8R RADIAL |
1,535 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 1000 pF | ±10% | 50V | X8R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads |
|
AC1206JRNPO0BN220CAP CER 22PF 100V C0G/NPO 1206 |
1,477 |
|
Datasheet |
AC | Tape & Reel (TR) | Active | 22 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.028" (0.70mm) | - | - |
-3,20x1,60x0,88mm.jpg)
|
C1206C821J5GAC7800CAP CER 820PF 50V C0G/NP0 1206 |
1,470 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 820 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
VJ1206Y222KXBCW1BCCAP CER 2200PF 100V X7R 1206 |
1,421 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 2200 pF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.90mm) | - | - |
|
FA28X8R1H103KNU06CAP CER 10000PF 50V X8R RADIAL |
1,390 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 10000 pF | ±10% | 50V | X8R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
C0603S471K5RACTUCAP CER 470PF 50V X7R 0603 |
1,350 |
|
Datasheet |
SMD Comm X7R FE | Tape & Reel (TR) | Active | 470 pF | ±10% | 50V | X7R | -55°C ~ 125°C | Floating Electrode | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
C0603X390J5GACTUCAP CER 39PF 50V C0G/NP0 0603 |
1,224 |
|
Datasheet |
SMD Comm C0G Flex | Tape & Reel (TR) | Active | 39 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
08055F472K4T2ACAP CER SMD |
1,180 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 4700 pF | ±10% | 50V | X8R | -55°C ~ 150°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
|
|
FG28C0G2E121JNT06CAP CER 120PF 250V C0G RADIAL |
1,153 |
|
Datasheet |
FG | Cut Tape (CT) | Not For New Designs | 120 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
-2,00x1,20x1,00mm.jpg)
|
C0805C471KARACAUTOCAP CER 470PF 250V X7R 0805 |
1,138 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 470 pF | ±10% | 250V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
EMF316B7105KLHTCAP CER 1UF 16V X7R 1206 |
1,120 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 1 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, SMPS Filtering | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
C316C472K5R5HA7301CAP CER 4700PF 50V X7R RADIAL |
1,051 |
|
Datasheet |
GoldMax 300 Comm X7R | Tape & Reel (TR) | Active | 4700 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.230" (5.84mm) | - | 0.100" (2.54mm) | Formed Leads - Kinked |
-0,22mm.jpg)
|
TVS042CG2R4BC-WCAP CER 2.4PF 25V C0G/NP0 01005 |
39,400 |
|
Datasheet |
V | Tape & Reel (TR) | Active | 2.4 pF | ±0.1pF | 25V | C0G, NP0 | -55°C ~ 125°C | - | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | 0.009" (0.22mm) | - | - |
