Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-1,00x0,50x0,55mm.jpg)
|
C0402C620J3GACAUTOCAP CER 62PF 25V C0G/NP0 0402 |
29,505 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 62 pF | ±5% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
.JPG)
|
CBR04C308B1GACCAP CER 0.3PF 100V C0G/NP0 0402 |
25,612 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 0.3 pF | ±0.1pF | 100V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
CQ0805CRNPOYBN5R6CAP CER 5.6PF 250V C0G/NP0 0805 |
19,885 |
|
Datasheet |
CQ | Tape & Reel (TR) | Active | 5.6 pF | ±0.25pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.028" (0.70mm) | - | - |
-1,78mm-Q-Code.jpg)
|
12065C105MAT4ACAP CER 1UF 50V X7R 1206 |
19,535 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 1 µF | ±20% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805X104K1RACAUTO7210CAP CER 0.1UF 100V X7R 0805 |
14,303 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.047" (1.20mm) | - | - |
-2,20mm-C-Series.jpg)
|
C3216NP02A392J060AACAP CER 3900PF 100V NP0 1206 |
11,282 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 3900 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 150°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.030" (0.75mm) | - | - |
|
KGM21BCG2A220GTCAP CER 22PF 100V C0G/NP0 0805 |
10,793 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 22 pF | ±2% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
|
|
C1206C102J4RACTUCAP CER 1000PF 16V X7R 1206 |
8,810 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 1000 pF | ±5% | 16V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
C1206C102K2RACTMCAP CER 1000PF 200V X7R 1206 |
8,000 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 1000 pF | ±10% | 200V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
C0603X431J2GACTUCAP CER 430PF 200V C0G/NP0 0603 |
7,880 |
|
Datasheet |
SMD Comm C0G Flex | Tape & Reel (TR) | Active | 430 pF | ±5% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
QCCT102Q9R1C1GV001ECAP CER 9.1PF 1KV C0G/NP0 0805 |
7,860 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 9.1 pF | ±0.25pF | 1000V (1kV) | C0G, NP0 | -55°C ~ 150°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.080" L x 0.050" W (2.03mm x 1.27mm) | - | 0.046" (1.17mm) | - | - |

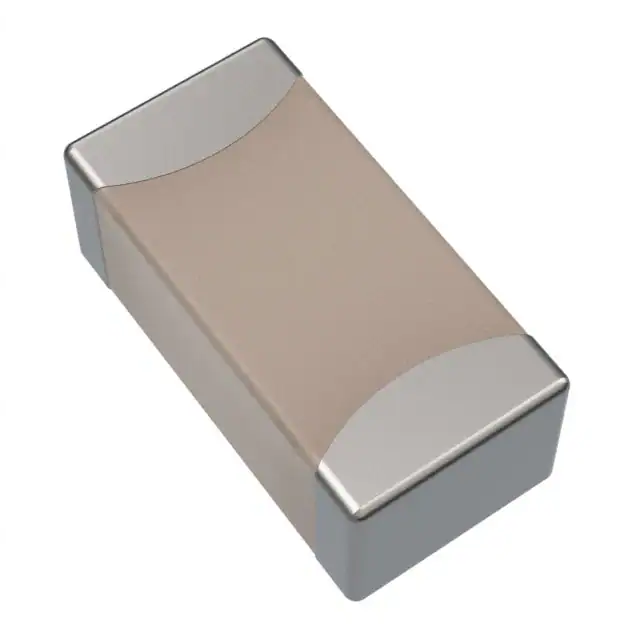

-1,25.jpg)
|
UMF316B7103MFHTCAP CER 10000PF 50V X7R 1206 |
7,837 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 10000 pF | ±20% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, SMPS Filtering | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.049" (1.25mm) | - | - |
-0,33mm-C-Series.jpg)
|
C0603X103K1RAC3121.010UF 100V |
7,825 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 10000 pF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
-1,60x0,80x0,87mm.jpg)
|
C0603X221K1RACAUTOCAP CER 220PF 100V X7R 0603 |
7,806 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 220 pF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
VJ0805A102JXBMCCAP CER 1000PF 100V C0G/NP0 0805 |
7,449 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 1000 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
.jpg)
|
CGA4C2NP01H822J060AACAP CER 8200PF 50V NP0 0805 |
7,390 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 8200 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.030" (0.75mm) | - | - |
-0,90mm.jpg)
|
LD035C222KAB2ACAP CER 2200PF 50V X7R 0603 |
7,267 |
|
Datasheet |
LD | Tape & Reel (TR) | Active | 2200 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
|
KGM21BCG2A560GTCAP CER 56PF 100V C0G/NP0 0805 |
6,955 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 56 pF | ±2% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
|
|
C1206C272J5RACTUCAP CER 2700PF 50V X7R 1206 |
6,927 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 2700 pF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
KGM32ER71H224MUCAP CER 0.22UF 50V X7R 1210 |
6,730 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.22 µF | ±20% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.098" W (3.30mm x 2.50mm) | - | 0.057" (1.45mm) | - | - |
