Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AC0603BRNPO9BN5R6CAP CER 5.6PF 50V C0G/NPO 0603 |
3,500 |
|
Datasheet |
AC | Tape & Reel (TR) | Active | 5.6 pF | ±0.1pF | 50V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
.jpg)
|
CGA4J3X8R1E474K125AECAP CER 0.47UF 25V X8R 0805 |
3,476 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 25V | X8R | -55°C ~ 150°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.059" (1.50mm) | - | - |
|
C1206C472KAGECTUCAP CER 1206 4.7NF 250V C0G |
3,350 |
|
Datasheet |
ESD SMD Comm C0G | Tape & Reel (TR) | Active | 4700 pF | ±10% | 250V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Low ESR | - | ESD Protection | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
-2,20mm-C-Series.jpg)
|
C3216X7R2E223K115AECAP CER 0.022UF 250V X7R 1206 |
3,305 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.022 µF | ±10% | 250V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.051" (1.30mm) | - | - |
|
FG24C0G2W222JNT06CAP CER 2200PF 450V C0G RADIAL |
2,938 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 2200 pF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads |
|
|
06031A6R0B4T2ACAP CER SMD |
2,860 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 6 pF | ±0.1pF | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
|
C0805X821J5GACTUCAP CER 820PF 50V C0G/NP0 0805 |
2,615 |
|
Datasheet |
SMD Comm C0G Flex | Tape & Reel (TR) | Active | 820 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (0.98mm) | - | - |
|
|
C0805X473J3GECTUCAP CER 0805 47NF 25V C0G 5% |
2,460 |
|
Datasheet |
ESD SMD Comm C0G | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination | - | Boardflex Sensitive, ESD Protection | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
-Standard-MLCC.jpg)
|
060321000120GQTLSMCAP CER 12PF 100V C0G/NP0 0603 |
2,060 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 12 pF | ±2% | 100V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.031" (0.80mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805C221KCRACAUTOCAP CER 0805 220PF 500V X7R 10% |
1,980 |
|
Datasheet |
SMD Auto X7R HV | Tape & Reel (TR) | Active | 220 pF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
-3,20x1,60x0,98mm.jpg)
|
C1206X150J5GACAUTOCAP CER 15PF 50V C0G/NP0 1206 |
1,808 |
|
Datasheet |
SMD Auto C0G Flex | Tape & Reel (TR) | Active | 15 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.039" (0.98mm) | - | - |
|
|
C0805C182J1GACTUCAP CER 1800PF 100V C0G/NP0 0805 |
1,597 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 1800 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
|
|
C1206X180J5GACAUTOCAP CER 18PF 50V C0G/NP0 1206 |
1,530 |
|
Datasheet |
SMD Auto C0G Flex | Tape & Reel (TR) | Active | 18 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.039" (0.98mm) | - | - |
|
|
C0805C221JCRACTUCAP CER 220PF 500V X7R 0805 |
1,485 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 220 pF | ±5% | 500V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
|
|
C1206X330J5GACAUTOCAP CER 33PF 50V C0G/NP0 1206 |
1,393 |
|
Datasheet |
SMD Auto C0G Flex | Tape & Reel (TR) | Active | 33 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.039" (0.98mm) | - | - |
|
|
C1206C225K4RECTUCAP CER 1206 2.2UF 16V X7R 10% |
1,384 |
|
Datasheet |
ESD SMD Comm X7R | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | ESD Protection | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
C1206X120J5GACAUTOCAP CER 12PF 50V C0G/NP0 1206 |
1,197 |
|
Datasheet |
SMD Auto C0G Flex | Tape & Reel (TR) | Active | 12 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.039" (0.98mm) | - | - |
|
|
FK14C0G1H223JN020CAP CER 0.022UF 50V C0G RADIAL |
1,140 |
|
Datasheet |
FK | Bulk | Not For New Designs | 0.022 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.177" L x 0.098" W (4.50mm x 2.50mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads - Kinked |
.jpg)
|

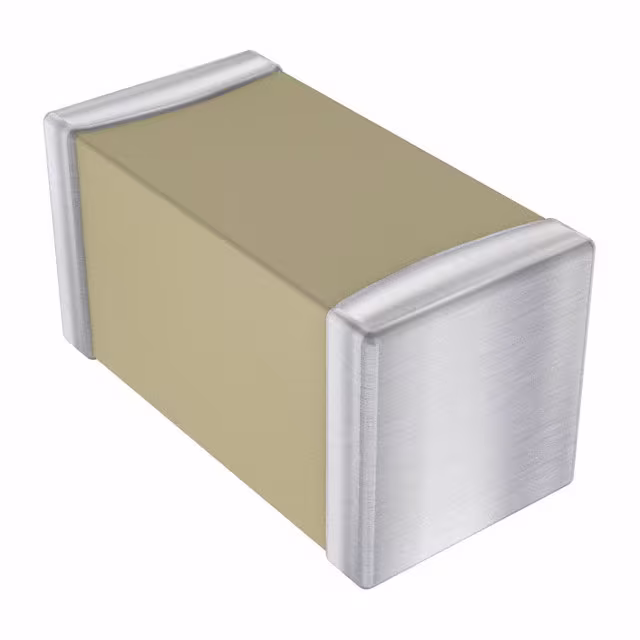

JMK021BJ103KK-WCAP CER 10000PF 6.3V X5R 008004 |
55,844 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 10000 pF | ±10% | 6.3V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 008004 (0201 Metric) | 0.010" L x 0.005" W (0.25mm x 0.13mm) | - | 0.006" (0.14mm) | - | - |
|
|
EMK021BJ102KK-WCAP CER 1000PF 16V X5R 008004 |
48,415 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 1000 pF | ±10% | 16V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 008004 (0201 Metric) | 0.010" L x 0.005" W (0.25mm x 0.13mm) | - | 0.006" (0.14mm) | - | - |
