Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

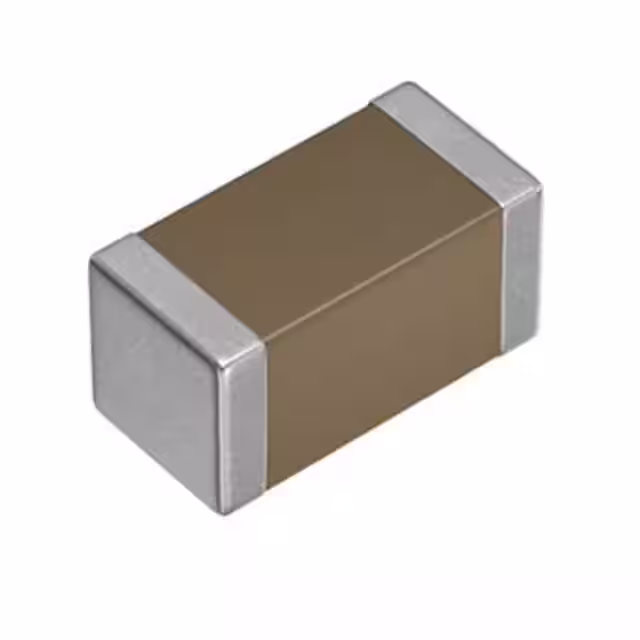

CGA3E3X7T0G106M080ABCAP CER 10UF 4V X7T 0603 |
6,712 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 10 µF | ±20% | 4V | X7T | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.043" (1.10mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805J104M5RACAUTOCAP CER 0.1UF 50V X7R 0805 |
6,487 |
|
Datasheet |
SMD Auto X7R FO | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Open Mode, Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
|
VJ0805D270JXPQJHTCAP CER 27PF 250V C0G/NP0 0805 |
6,418 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 27 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
.jpg)
|
CGA4F3NP02E332J085AACAP CER 3300PF 250V NP0 0805 |
5,892 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 3300 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
.jpg)
|
CGA4J1X7R0J106K125ADCAP CER 10UF 6.3V X7R 0805 EPOXY |
5,870 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 10 µF | ±10% | 6.3V | X7R | -55°C ~ 125°C | Epoxy Mountable | AEC-Q200 | Automotive | - | Surface Mount, MLCC, Epoxy | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.059" (1.50mm) | - | - |
-1,45mm-C-Series.jpg)
|
C2012X6S1H155M125ABCAP CER 1.5UF 50V X6S 0805 |
5,736 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 1.5 µF | ±20% | 50V | X6S | -55°C ~ 105°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
.jpg)
|
ML03V10R3AAT2ACAP CER 0.3PF 250V C0G/NP0 0603 |
5,499 |
|
Datasheet |
MLO™ | Tape & Reel (TR) | Active | 0.3 pF | ±0.05pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.033" W (1.60mm x 0.84mm) | - | 0.029" (0.74mm) | - | - |
|
RCER72A223K0M1H03ACAP CER 0.022UF 100V X7R RADIAL |
5,362 |
|
Datasheet |
RCE | Cut Tape (CT) | Active | 0.022 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.138" (3.50mm) | - | 0.197" (5.00mm) | Formed Leads |
.JPG)
|
CBR06C808BAGACCAP CER 0.8PF 250V C0G/NP0 0603 |
4,802 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 0.8 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
|
C0402C271G5GACTUCAP CER 270PF 50V C0G/NP0 0402 |
4,587 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 270 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
RDE5C2A150J0K1H03BCAP CER 15PF 100V NP0 RADIAL |
4,565 |
|
Datasheet |
RDE | Bulk | Active | 15 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | - |
-2,20mm-C-Series.jpg)
|
C3216NP01H333J085AACAP CER 0.033UF 50V NP0 1206 |
4,538 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 150°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.039" (1.00mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C104M1RAC7800CAP CER 0.1UF 100V X7R 1210 |
4,274 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.041" (1.05mm) | - | - |
|
|
C0805X153KARACTUCAP CER 0.015UF 250V X7R 0805 |
4,175 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.015 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
RCER71H473K0DBH03ACAP CER 0.047UF 50V X7R RADIAL |
4,093 |
|
Datasheet |
RCE | Cut Tape (CT) | Active | 0.047 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.138" (3.50mm) | - | 0.098" (2.50mm) | Straight |
|
|
C1206C399C5GACTUCAP CER 3.9PF 50V C0G/NP0 1206 |
4,000 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 3.9 pF | ±0.25pF | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
C322C222J1G5TA7301CAP CER 2200PF 100V C0G/NP0 RAD |
3,976 |
|
Datasheet |
GoldMax 300 Comm C0G | Tape & Reel (TR) | Active | 2200 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.260" (6.60mm) | - | 0.200" (5.08mm) | Formed Leads |
|
|
C1206C222GBGACTUCER CAP |
3,953 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 2200 pF | ±2% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
C1206C399C1GACTUCAP CER 3.9PF 100V C0G/NP0 1206 |
3,630 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 3.9 pF | ±0.25pF | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
C3216C0G1H333K085AACAP CER 0.033UF 50V C0G 1206 |
3,140 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.033 µF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.039" (1.00mm) | - | - |
