Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2,80mm_BN.jpg)
|
885012009008CAP CER 33PF 50V C0G/NP0 1210 |
2,683 |
|
Datasheet |
WCAP-CSGP | Tape & Reel (TR) | Active | 33 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.041" (1.05mm) | - | - |
.jpg)
|
CGA5F4NP02J392J085AACAP CER 3900PF 630V NP0 1206 |
2,680 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 3900 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.039" (1.00mm) | - | - |
-1,52mm-P-Code.jpg)
|
12065C334KAZ2ACAP CER 0.33UF 50V X7R 1206 |
2,639 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.060" (1.52mm) | - | - |
.JPG)
|
CBR04C129B2GACCAP CER 1.2PF 200V C0G/NP0 0402 |
2,382 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 1.2 pF | ±0.1pF | 200V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
CC1206ZRY5V7BB155CAP CER 1.5UF 16V Y5V 1206 |
2,212 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 1.5 µF | -20%, +80% | 16V | Y5V (F) | -30°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | - | - | - |
|
|
CGA5H4NP02J682J115AACAP CER 6800PF 630V NP0 1206 |
2,183 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 6800 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.051" (1.30mm) | - | - |
|
RCE5C2A120J0M1H03ACAP CER 12PF 100V C0G/NP0 RADIAL |
1,933 |
|
Datasheet |
RCE | Cut Tape (CT) | Active | 12 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.138" (3.50mm) | - | 0.197" (5.00mm) | Formed Leads |
|
RCE5C2A2R0C0DBH03ACAP CER 2PF 100V C0G/NP0 RADIAL |
1,896 |
|
Datasheet |
RCE | Cut Tape (CT) | Active | 2 pF | ±0.25pF | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.138" (3.50mm) | - | 0.098" (2.50mm) | Straight |
-0,85mm.jpg)
|

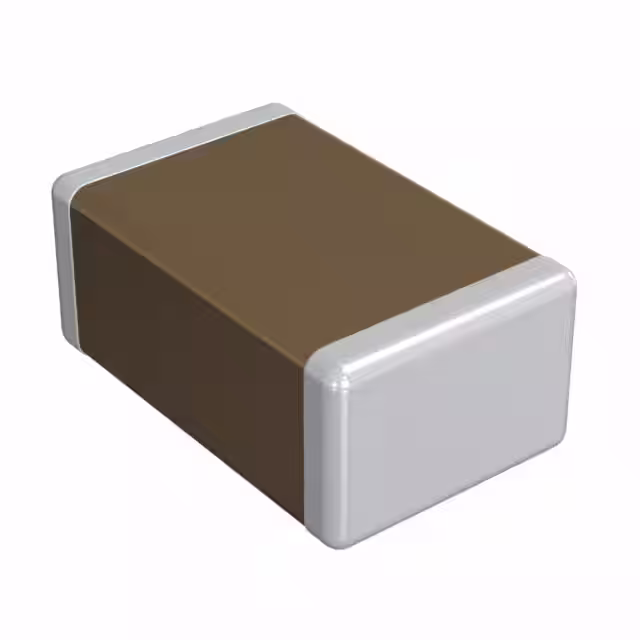

GCJ219R71H333KA01DCAP CER 0.033UF 50V X7R 0805 |
1,320 |
|
Datasheet |
GCJ | Tape & Reel (TR) | Not For New Designs | 0.033 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.033" (0.85mm) | - | - |
|
AC1206KKX7R7BB225CAP CER 2.2UF 16V X7R 1206 |
1,250 |
|
Datasheet |
AC | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
RDE5C2A681J0M1H03ACAP CER 680PF 100V C0G/NP0 RAD |
1,176 |
|
Datasheet |
RDE | Cut Tape (CT) | Active | 680 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | - |
-2,80mm-C-Series.jpg)
|
C3216NP02J562J115AACAP CER 5600PF 630V NP0 1206 |
1,160 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 5600 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 150°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.051" (1.30mm) | - | - |
|
|
RCE5C2A220J0DBH03ACAP CER 22PF 100V C0G/NP0 RADIAL |
1,091 |
|
Datasheet |
RCE | Cut Tape (CT) | Active | 22 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.138" (3.50mm) | - | 0.098" (2.50mm) | Straight |
|

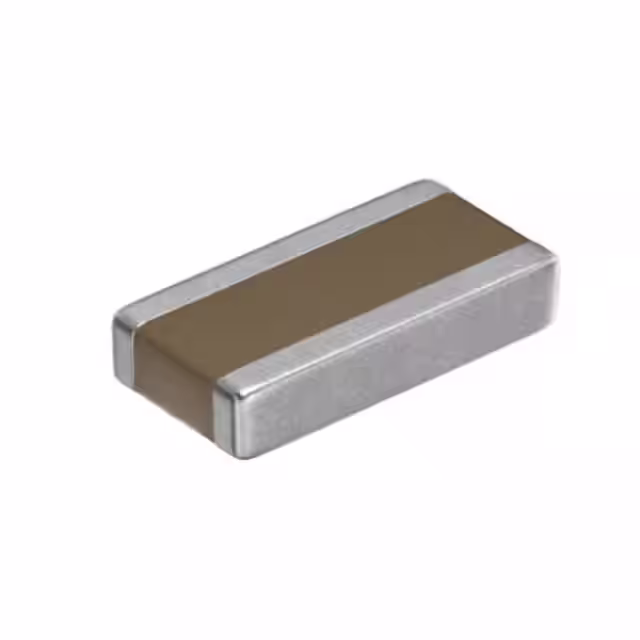

CGAEW1X7T0G104M020BCCAP CER 0.1UF 4V X7T 0204 |
29,500 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 4V | X7T | -55°C ~ 125°C | Low ESL (Reverse Geometry) | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0204 (0510 Metric) | 0.020" L x 0.039" W (0.50mm x 1.00mm) | - | 0.010" (0.25mm) | - | - |
.jpg)
|
AMK105BJ105ME-RCAP CER 1UF 4V X5R 0402 |
14,897 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 1 µF | ±20% | 4V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.008" (0.20mm) | - | - |
-3,20x1,60x0,88mm.jpg)
|
C1206Y103K2RAC7800CAP CER 10000PF 200V X7R 1206 |
12,000 |
|
Datasheet |
SMD Comm X7R FF | Tape & Reel (TR) | Active | 10000 pF | ±10% | 200V | X7R | -55°C ~ 125°C | Floating Electrode, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
C1206Y222K2RAC7800CAP CER 2200PF 200V X7R 1206 |
11,158 |
|
Datasheet |
SMD Comm X7R FF | Tape & Reel (TR) | Active | 2200 pF | ±10% | 200V | X7R | -55°C ~ 125°C | Floating Electrode, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
C1206X153K2RACAUTOCAP CER 0.015UF 200V X7R 1206 |
8,000 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 0.015 µF | ±10% | 200V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.039" (0.98mm) | - | - |
-3,20x1,60x1,35mm.jpg)
|
C1206X225K5RECAUTO7210CAP CER 1206 2.2UF 50V X7R 10% |
7,950 |
|
Datasheet |
ESD SMD Auto X7R | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive, ESD Protection | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.073" (1.85mm) | - | - |
|
SR212A220JARTR1CAP CER 22PF 200V NP0 RADIAL |
6,233 |
|
Datasheet |
SkyCap® SR | Tape & Reel (TR) | Active | 22 pF | ±5% | 200V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
