Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1206C224J3JACTUCAP CER 0.22UF 25V U2J 1206 |
1,045 |
|
Datasheet |
SMD Comm U2J | Tape & Reel (TR) | Active | 0.22 µF | ±5% | 25V | U2J | -55°C ~ 125°C | Low ESL, Low Dissipation Factor | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.069" (1.75mm) | - | - |
|
AC1210JKNPO9BN222CAP CER 2200PF 50V C0G/NPO 1210 |
1,001 |
|
Datasheet |
AC | Tape & Reel (TR) | Active | 2200 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.057" (1.45mm) | - | - |
-2,20mm-C-Series.jpg)
|
C3216X7T2J473M160AECAP CER 0.047UF 630V X7T 1206 |
11,590 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.047 µF | ±20% | 630V | X7T | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
C1206C125K8RACTUCAP CER 1.2UF 10V X7R 1206 |
7,636 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 1.2 µF | ±10% | 10V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.043" (1.10mm) | - | - |
.jpg)
|
MM031C221KCZ2ACAP CER 220PF 100V X7R 0603 |
7,466 |
|
Datasheet |
MM | Tape & Reel (TR) | Active | 220 pF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | Medical, Non-Critical | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.029" (0.74mm) | - | - |
|
FG16X7S2A225KRT06CAP CER 2.2UF 100V X7S RADIAL |
6,819 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 2.2 µF | ±10% | 100V | X7S | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.098" (2.50mm) | Formed Leads |
|
|
C1206C221G5GACTUCAP CER 220PF 50V C0G/NP0 1206 |
0 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 220 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
.jpg)
|
CC1210KKX7RBBB223CAP CER 0.022UF 500V X7R 1210 |
5,275 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 500V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.057" (1.45mm) | - | - |
-2,70mm.jpg)
|
JMK325BJ476KMHPCAP CER 47UF 6.3V X5R 1210 |
4,598 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 47 µF | ±10% | 6.3V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive, SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.106" (2.70mm) | - | - |
|
|
C1206C682J1GACTUCAP CER 6800PF 100V C0G/NP0 1206 |
3,870 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 6800 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
C1206C470KGGACTUCAP CER 47PF 2KV C0G/NP0 1206 |
3,390 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 47 pF | ±10% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.069" (1.75mm) | - | - |
|

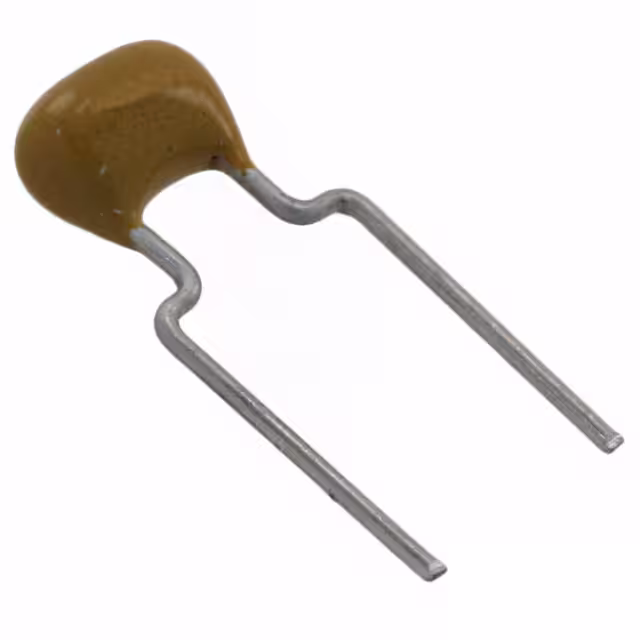

C323C104K5R5TA7301CAP CER 0.1UF 50V X7R RADIAL |
2,793 |
|
Datasheet |
GoldMax 300 Comm X7R | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Formed Leads |
|
|
SCDP302G470J4GV001ECAP CER 47PF 250VAC C0G/NP0 1808 |
2,699 |
|
Datasheet |
SC-BME | Tape & Reel (TR) | Active | 47 pF | ±5% | 250VAC | C0G, NP0 | -55°C ~ 125°C | - | X2 | Safety | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.080" W (4.70mm x 2.03mm) | - | 0.085" (2.16mm) | - | - |
-3,20x1,60x1,20mm.jpg)
|
C1206C473J5GACAUTOCAP CER 0.047UF 50V C0G/NP0 1206 |
2,312 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.047" (1.20mm) | - | - |
|
FG26X7T2E224KNT06CAP CER 0.22UF 250V X7T RADIAL |
1,718 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 0.22 µF | ±10% | 250V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
FG11C0G2A473JNT06CAP CER 0.047UF 100V C0G RADIAL |
1,292 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 0.047 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.098" (2.50mm) | Formed Leads |
|
|
C3216X7R1V335M160ABCAP CER 3.3UF 35V X7R 1206 |
1,227 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 3.3 µF | ±20% | 35V | X7R | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
C1206X102KBRAC7800CAP CER 1000PF 630V X7R 1206 |
4,991 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 1000 pF | ±10% | 630V | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.047" (1.20mm) | - | - |
|
WKP470MCPEF0KRCAP CER 47PF 760VAC Y5S RADIAL |
4,670 |
|
Datasheet |
WKP | Bulk | Active | 47 pF | ±20% | 760VAC | Y5S | -40°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | - | 0.492" (12.50mm) | Straight |
-2,80mm_BN.jpg)
|
885012009001CAP CER 0.015UF 16V C0G/NP0 1210 |
3,000 |
|
Datasheet |
WCAP-CSGP | Tape & Reel (TR) | Active | 0.015 µF | ±5% | 16V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.053" (1.35mm) | - | - |
