Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2,80mm.jpg)
|
1812AA101KAT2ACAP CER 100PF 1KV C0G/NP0 1812 |
1,390 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 100 pF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.057" (1.45mm) | - | - |
-0,94mm-J-Code.jpg)
|
12067A680GAT2ACAP CER 68PF 500V C0G/NP0 1206 |
1,029 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 68 pF | ±2% | 500V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
|

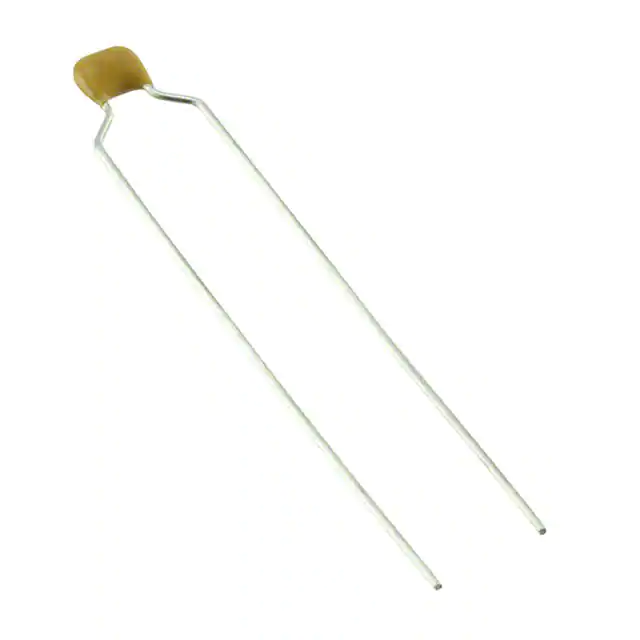

SR225C224KARCAP CER 0.22UF 50V X7R RADIAL |
1,000 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 0.22 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.300" (7.62mm) | - | 0.250" (6.35mm) | Formed Leads |
|
VKP332MCQERUKRCAP CER 3300PF 760VAC Y5U RADIAL |
5,496 |
|
Datasheet |
VKP | Tape & Reel (TR) | Active | 3300 pF | ±20% | 760VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.591" Dia (15.00mm) | 0.709" (18.00mm) | - | 0.492" (12.50mm) | Straight |
|
C1210C123JFRACTUCAP CER 0.012UF 1.5KV X7R 1210 |
2,000 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.012 µF | ±5% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.091" (2.30mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812C105K5RACTMCAP CER 1UF 50V X7R 1812 |
1,990 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.055" (1.40mm) | - | - |
.jpg)
|
600S110JT250XTCAP CER 11PF 250V NP0 0603 |
1,470 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 11 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
-1,55mm-C-Series.jpg)
|
C4532X5R1E156M250KACAP CER 15UF 25V X5R 1812 |
1,380 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 15 µF | ±20% | 25V | X5R | -55°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.110" (2.80mm) | - | - |
 2.5.jpg)
|
CGA6L3NP02E223J160AACAP CER 0.022UF 250V NP0 1210 |
1,000 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.071" (1.80mm) | - | - |
|
|
VJ1812Y473KXETW1BCCAP CER 0.047UF 500V X7R 1812 |
900 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 500V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | - | - | - |
|
CNC6P1X7R1H475K250AECAP 1210 X7R 50V 4.7UF 10% 2.50M |
635 |
|
Datasheet |
CNC | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805H180J5GACT500CAP CER 18PF 50V C0G/NP0 0805 |
374 |
|
Datasheet |
SMD Indust C0G HT200C | Tape & Reel (TR) | Active | 18 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
.jpg)
|

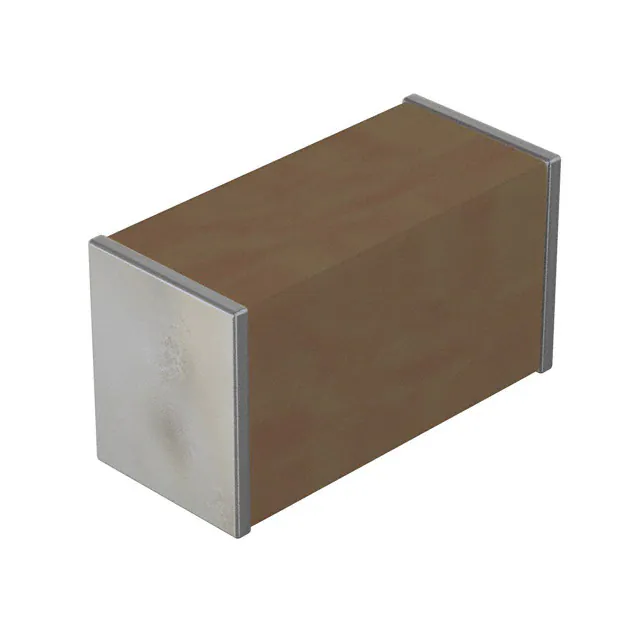

0201BB103K160YTCAP CER 10000PF 16V X7R 0201 |
13,710 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10000 pF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
-1,50mm.jpg)
|
C1210X104KARACAUTOCAP CER 0.1UF 250V X7R 1210 |
4,905 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 250V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.057" (1.45mm) | - | - |
|
|
C1812F104K2RACTUCAP CER 0.1UF 200V X7R 1812 |
2,669 |
|
Datasheet |
SMD Comm X7R FO | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 200V | X7R | -55°C ~ 125°C | Open Mode | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|
|
C1210V333KCRACTUCAP CER 0.033UF 500V X7R 1210 |
2,474 |
|
Datasheet |
ArcShield SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.033 µF | ±10% | 500V | X7R | -55°C ~ 125°C | High Voltage, ArcShield™ | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.055" (1.40mm) | - | - |
|
SR305E105ZARTR1CAP CER 1UF 50V Z5U RADIAL |
1,964 |
|
Datasheet |
SkyCap® SR | Tape & Reel (TR) | Active | 1 µF | -20%, +80% | 50V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.150" W (7.62mm x 3.81mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Straight |
-1.6.jpg)
|
CGA8L1X7T2J154M160KCCAP CER 0.15UF 630V X7T 1812 |
1,651 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 0.15 µF | ±20% | 630V | X7T | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
-2,00mm-Tan.jpg)
|
1210Y5000104KJTCAP CER 0.1UF 500V X7R 1210 |
299 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 500V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.079" (2.00mm) | - | - |
-3,20x1,60x1,35mm.jpg)
|
C1206X103KBRAC7800CAP CER 10000PF 630V X7R 1206 |
186 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 10000 pF | ±10% | 630V | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | - | - | - |
