Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-5,60x6,40x1,80mm.jpg)
|
C2225C105KARACAUTOCAP CER 1UF 250V X7R 2225 |
752 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 1 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.061" (1.55mm) | - | - |
-1,80mm-C-Series.jpg)
|
C1825C153J5GAC7800CAP CER 0.015UF 50V C0G/NP0 1825 |
2,166 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.015 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.049" (1.25mm) | - | - |
|
C1808C680JHGACTUCAP CER 68PF 3KV C0G/NP0 1808 |
489 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 68 pF | ±5% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
.jpg)
|
C1210X201JBGACAUTOCAP CER 1210 200PF 630V C0G 5% F |
2,275 |
|
Datasheet |
SMD Auto C0G HV Flex | Tape & Reel (TR) | Active | 200 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.057" (1.45mm) | - | - |
-4,50x6,40x2,70mm.jpg)
|
C1825C104KDRAC7800CAP CER 0.1UF 1KV X7R 1825 |
367 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
|
VJ1812Y105JXAATCAP CER 1UF 50V X7R 1812 |
14,830 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 1 µF | ±5% | 50V | X7R | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.086" (2.18mm) | - | - |
|
|
502S47W122KV3ESCCAP CER 1200PF 250V X7R 2220 |
1,420 |
|
Datasheet |
SC | Tape & Reel (TR) | Active | 1200 pF | ±10% | 250VAC | X7R | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.225" L x 0.200" W (5.72mm x 5.08mm) | - | 0.150" (3.81mm) | - | - |
-1,55mm-C-Series.jpg)
|
C4532C0G2J103K160KACAP CER 10000PF 630V C0G 1812 |
368 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 10000 pF | ±10% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C102FBGAC7800CAP CER 1000PF 630V C0G/NP0 1210 |
311 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 1000 pF | ±1% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
.jpg)
|
LS1808N221J302NTMCAP CER 220PF 250VAC C0G 1808 |
727 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 220 pF | ±5% | 250VAC | C0G, NP0 | -55°C ~ 125°C | - | X2, Y3 | Safety | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.180" L x 0.080" W (4.57mm x 2.03mm) | - | 0.065" (1.65mm) | - | - |
|
|
C2220C334K1RACTUCAP CER 0.33UF 100V X7R 2220 |
1,700 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.049" (1.25mm) | - | - |
|
|
C2220C474K5RACTUCAP CER 0.47UF 50V X7R 2220 |
1,048 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.049" (1.25mm) | - | - |
|

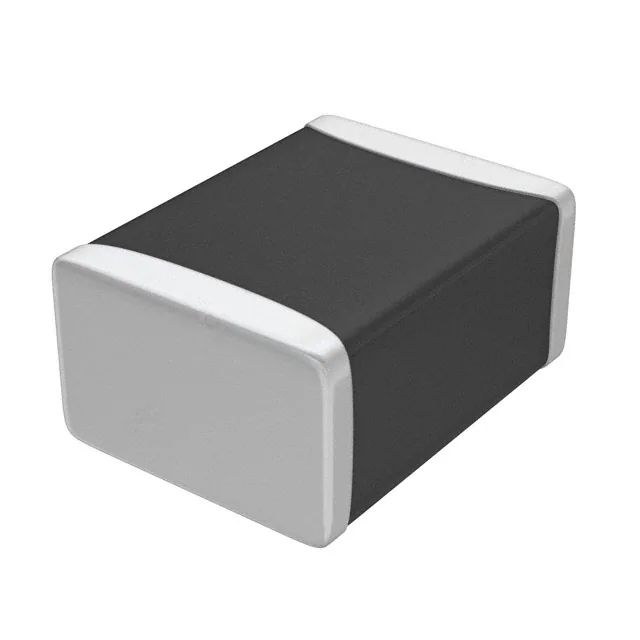

GR343DD72J683KW01KCAP CER 0.068UF 630V X7T 1812 |
1,525 |
|
Datasheet |
GR3 | Tape & Reel (TR) | Active | 0.068 µF | ±10% | 630V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.079" (2.00mm) | - | - |
 2.5.jpg)
|
CGA6P3X8R1E475K250AECAP CER 4.7UF 25V X8R 1210 |
1,200 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 25V | X8R | -55°C ~ 150°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
C2220C474K5RACAUTOCAP CER 0.47UF 50V X7R 2220 |
340 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.045" (1.15mm) | - | - |
|
|
S0AC500G0R4A1S2001WCAP CER 0.4PF 50V SMD |
400 |
|
Datasheet |
- | Tray | Active | 0.4 pF | ±0.05pF | 50V | N | -55°C ~ 125°C | High Q, Low Loss, Bonding Mountable, Low Profile, Single Layer | - | RF, Microwave, High Frequency | - | Surface Mount, SLCC | Nonstandard SMD | 0.012" L x 0.010" W (0.30mm x 0.25mm) | - | 0.008" (0.20mm) | - | - |
-1,00x0,50x0,55mm.jpg)
|
C0402H102J3GAFT1K0CAP CER 1000PF 25V C0G/NP0 0402 |
2,833 |
|
Datasheet |
SMD Indust C0G HT200C | Tape & Reel (TR) | Active | 1000 pF | ±5% | 25V | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
-2,80mm.jpg)
|
18122A682GAT2ACAP CER 6800PF 200V C0G/NP0 1812 |
2,298 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 6800 pF | ±2% | 200V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.057" (1.45mm) | - | - |
|
CBR08C180FAGACCAP CER 18PF 250V C0G/NP0 0805 |
1,665 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 18 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
|
SR305C105MARTR1CAP CER 1UF 50V X7R RADIAL |
1,205 |
|
Datasheet |
SkyCap® SR | Tape & Reel (TR) | Active | 1 µF | ±20% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.150" W (7.62mm x 3.81mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Straight |
