Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CQ0201ARNPO9BN1R6CAP CER 1.6PF 50V C0G/NP0 0201 |
29,760 |
|
Datasheet |
CQ | Tape & Reel (TR) | Active | 1.6 pF | ±0.05pF | 50V | C0G, NP0 | -55°C ~ 125°C | High Q | - | General Purpose | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
|
|
CS0603KPX7R9BB224CAP CER 0.22UF 50V X7R 0603 |
29,596 |
|
Datasheet |
CS | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
CQ0402ARNPO9BN1R1CAP CER 1.1PF 50V C0G/NPO 0402 |
29,450 |
|
Datasheet |
CQ | Tape & Reel (TR) | Active | 1.1 pF | ±0.05pF | 50V | C0G, NP0 | -55°C ~ 125°C | High Q | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
MAAST063SB7101KFCA01CAP CER 100PF 25V X7R 0201 |
29,000 |
|
Datasheet |
MAAS | Tape & Reel (TR) | Active | 100 pF | ±10% | 25V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) | 0.013" (0.33mm) | - | - |
.jpg)
|
CC0201JRX7R9BB471CAP CER 470PF 50V X7R 0201 |
20,850 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 470 pF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
.jpg)
|
CGA2B2NP02A471J050BACAP CER 470PF 100V NP0 0402 |
20,000 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 470 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - | - |
|
CC0805MFX7R7BB105CAP CER 1UF 16V X7R 0805 |
20,000 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 1 µF | ±20% | 16V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|

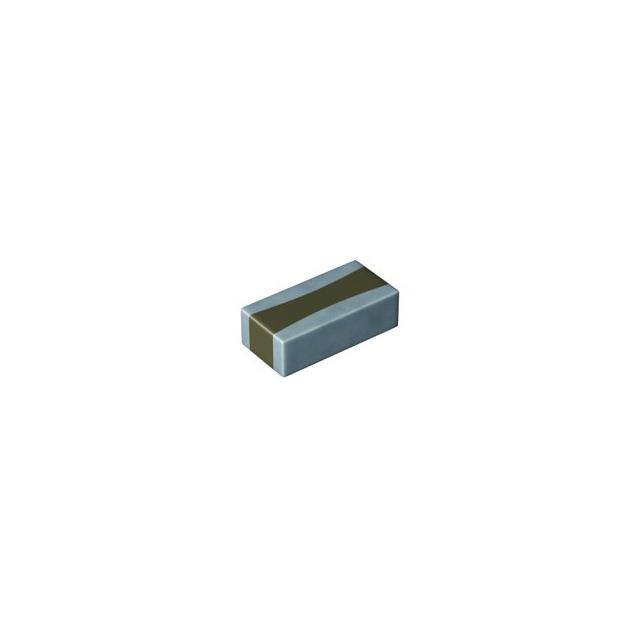

MCRLL103SC7104MFNA01CAP CER 0.1UF 10V X7S 0204 |
20,000 |
|
Datasheet |
MCRL | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 10V | X7S | -55°C ~ 125°C | Low ESL (Reverse Geometry) | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0204 (0510 Metric) | 0.020" L x 0.039" W (0.52mm x 1.00mm) | - | 0.014" (0.35mm) | - | - |
|
|
AC0402FRNPO9BN820CAP CER 82PF 50V C0G/NP0 0402 |
20,000 |
|
Datasheet |
AC | Tape & Reel (TR) | Active | 82 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
CL10C8R2DC81PNCCAP CER 8.2PF 100V C0G 0603 |
20,000 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 8.2 pF | ±0.5pF | 100V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.88mm) | - | - |
|
|
C2012X7R1H224K125DACOMMERCIAL GRADE,0805,X7R,50V,0. |
20,000 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
MCASJ105BB5475MFNA01CAP CER 4.7UF 6.3V X5R 0402 |
19,980 |
|
Datasheet |
MCAS | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 6.3V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
CQ0402JRNPO9BN300CAP CER 30PF 50V C0G/NPO 0402 |
19,975 |
|
Datasheet |
CQ | Tape & Reel (TR) | Active | 30 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | High Q | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
CBR04C519C5GACCAP CER 5.1PF 50V C0G/NP0 0402 |
19,910 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 5.1 pF | ±0.25pF | 50V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
-0.70mm-C-Series.jpg)
|
C1005X7R1E154K050BBCAP CER 0.15UF 25V X7R 0402 |
19,892 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.15 µF | ±10% | 25V | X7R | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
CC0603KRX5R5BB224CAP CER 0.22UF 6.3V X5R 0603 |
19,830 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 6.3V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
|
AC0603KRX7R9BB273CAP CER 0.027UF 50V X7R 0603 |
19,735 |
|
Datasheet |
AC | Tape & Reel (TR) | Active | 0.027 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
|
|
CQ0402JRNPO9BN560CAP CER 56PF 50V C0G/NP0 0402 |
19,566 |
|
Datasheet |
CQ | Tape & Reel (TR) | Active | 56 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | High Q | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
MSAST105SB5105MFNA01CAP CER 1UF 25V X5R 0402 |
19,457 |
|
Datasheet |
MSAS | Tape & Reel (TR) | Active | 1 µF | ±20% | 25V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
AC0805KRX7R9BB183CAP CER 0.018UF 50V X7R 0805 |
19,450 |
|
Datasheet |
AC | Tape & Reel (TR) | Active | 0.018 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | - | - | - |
