Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-0,60x0,30x0,33mm.jpg)
|
CBR02C339B5GACCAP CER 3.3PF 50V C0G/NP0 0201 |
14,000 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 3.3 pF | ±0.1pF | 50V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
|
CBR02C109B5GACCAP CER 1PF 50V C0G/NP0 0201 |
13,974 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 1 pF | ±0.1pF | 50V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
|
CC0805KRX7RZBB102CAP CER 1000PF 630V X7R 0805 |
11,336 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 1000 pF | ±10% | 630V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
|
QCCP501Q180J1GV001TCAP CER 18PF 500V C0G/NP0 0603 |
11,290 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 18 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 150°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.062" L x 0.032" W (1.57mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
-1,52mm-P-Code.jpg)
|
1206SC102KAT2ACAP CER 1000PF 1.5KV X7R 1206 |
10,872 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 1000 pF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
QCCP501Q150J1GV001TCAP CER 15PF 500V C0G/NP0 0603 |
10,868 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 15 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 150°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.062" L x 0.032" W (1.57mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
|
MSASL063BB5105MFNB33CAP CER 1UF 10V X5R 0201 |
10,640 |
|
Datasheet |
MSAS | Tape & Reel (TR) | Active | 1 µF | ±20% | 10V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.015" (0.39mm) | - | - |
|
|
GA0402Y153KXXAC31GCAP CER 0.015UF 25V X7R 0402 |
10,000 |
|
Datasheet |
GA | Tape & Reel (TR) | Active | 0.015 µF | ±10% | 25V | X7R | -55°C ~ 150°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - | - |
|
MAASL105AD7474KFCA01CAP CER 0.47UF 10V X7T 0402 |
10,000 |
|
Datasheet |
MAAS | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 10V | X7T | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
MCRLL103SC6224MFNA01CAP CER 0.22UF 10V X6S 0204 |
10,000 |
|
Datasheet |
MCRL | Tape & Reel (TR) | Active | 0.22 µF | ±20% | 10V | X6S | -55°C ~ 105°C | Low ESL (Reverse Geometry) | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0204 (0510 Metric) | 0.020" L x 0.039" W (0.52mm x 1.00mm) | - | 0.014" (0.35mm) | - | - |
|

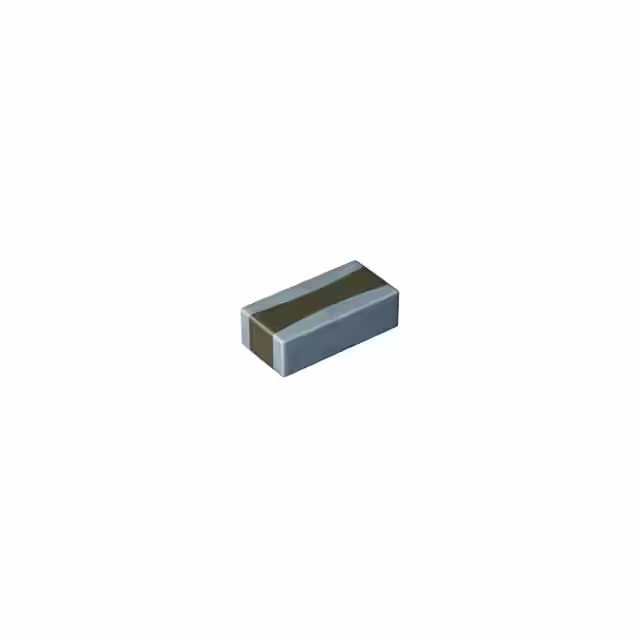

MSRLA103SC6105MFNA01CAP CER 1UF 4V X6S 0204 |
10,000 |
|
Datasheet |
MSRL | Tape & Reel (TR) | Active | 1 µF | ±20% | 4V | X6S | -55°C ~ 105°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0204 (0510 Metric) | 0.020" L x 0.039" W (0.52mm x 1.00mm) | - | 0.014" (0.35mm) | - | - |
|
|
C0402C101K2GACTUCAP CER 100PF 200V C0G/NP0 0402 |
10,000 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 100 pF | ±10% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | - | - | - |
-1,00x0,50x0,55mm.jpg)
|
C0402C121K3JACAUTOCAP CER 120PF 25V U2J 0402 |
9,980 |
|
Datasheet |
SMD Auto U2J | Tape & Reel (TR) | Active | 120 pF | ±10% | 25V | U2J | -55°C ~ 125°C | Low ESL, Low Dissipation Factor | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
-3,20x1,60x0,88mm.jpg)
|
C1206C103K4REC7210CAP CER 1206 10NF 16V X7R 10% |
9,930 |
|
Datasheet |
ESD SMD Comm X7R | Tape & Reel (TR) | Active | 10000 pF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | ESD Protection | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
KGM05ACG1C4R7CHCAP CER 4.7PF 16V C0G/NP0 0402 |
9,917 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 4.7 pF | ±0.25pF | 16V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
CM05X6S106M04AH0402 X6S 10UF20% 4V |
9,880 |
|
- |
CM | Tape & Reel (TR) | Active | 10 µF | ±20% | 4V | X6S | -55°C ~ 105°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.028" (0.70mm) | - | - |
|
MCASE105SB7223KFNA01CAP CER 0.022UF 16V X7R 0402 |
9,850 |
|
Datasheet |
MCAS | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
VJ0603A330KXAACCAP CER 33PF 50V C0G/NP0 0603 |
9,830 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 33 pF | ±10% | 50V | C0G, NP0 | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.038" (0.97mm) | - | - |
|
|
CBR04C809B3GACCAP CER 8PF 25V C0G/NP0 0402 |
9,755 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 8 pF | ±0.1pF | 25V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
C1206C223MMREC7210CAP CER 1206 22NF 63V X7R 20% |
9,751 |
|
Datasheet |
ESD SMD Comm X7R | Tape & Reel (TR) | Active | 0.022 µF | ±20% | 63V | X7R | -55°C ~ 125°C | - | - | ESD Protection | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
