Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C0603C103J3GEC7411CAP CER 0603 |
14,877 |
|
Datasheet |
ESD SMD Comm C0G | Tape & Reel (TR) | Active | 10000 pF | ±5% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Low ESR | - | ESD Protection | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | - | - | - |
|
K101K15C0GH5TK2CAP CER 100PF 100V C0G/NP0 RAD |
12,000 |
|
Datasheet |
Mono-Kap™ K | Tape & Reel (TR) | Active | 100 pF | ±10% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.157" L x 0.102" W (4.00mm x 2.60mm) | 0.295" (7.50mm) | - | 0.098" (2.50mm) | Formed Leads - Kinked |
|
CC1206KKX5R7BB105CAP CER 1UF 16V X5R 1206 |
11,999 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 1 µF | ±10% | 16V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.049" (1.25mm) | - | - |
|
|
CC1206JKNPOCBN200CAP CER 20PF 1KV C0G/NPO 1206 |
11,600 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 20 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | - | - | - |
|
|
C0603C471K3GACTUCAP CER 470PF 25V C0G/NP0 0603 |
11,581 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 470 pF | ±10% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
C0603C224M3VACTUCAP CER 0.22UF 25V Y5V 0603 |
11,260 |
|
Datasheet |
SMD Comm Y5V | Tape & Reel (TR) | Active | 0.22 µF | ±20% | 25V | Y5V (F) | -30°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
CC1206GRNPOABN101CAP CER 100PF 200V C0G/NPO 1206 |
11,028 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 100 pF | ±2% | 200V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.028" (0.70mm) | - | - |
|
|
KGQ15ACG1H2R0BTCAP CER 2PF 50V NP0 0603 |
10,957 |
|
Datasheet |
KGQ | Tape & Reel (TR) | Active | 2 pF | ±0.1pF | 50V | C0G, NP0 | -55°C ~ 125°C | Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.060" L x 0.030" W (1.52mm x 0.76mm) | - | 0.036" (0.91mm) | - | - |
|
|
C0603C202J2GACTUCAP CER 2000PF 200V C0G/NP0 0603 |
10,205 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 2000 pF | ±5% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | - | - | - |
|
CQ0402BRNPOYBN3R3CAP CER 3.3PF 250V C0G/NPO 0402 |
10,000 |
|
Datasheet |
CQ | Tape & Reel (TR) | Active | 3.3 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|

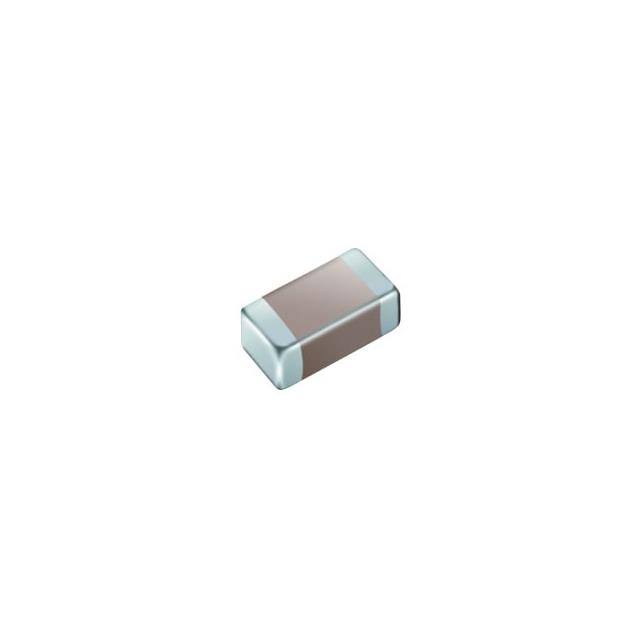

MSAYU105SSD471KFNA01CAP CER 470PF 50V 0402 |
10,000 |
|
Datasheet |
MSAY | Tape & Reel (TR) | Active | 470 pF | ±10% | 50V | - | -55°C ~ 125°C | Low Distortion | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
KGM21ACG1C103KLCAP CER 10000PF 16V C0G/NP0 0805 |
9,940 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 10000 pF | ±10% | 16V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
CBR04C200G3GACCAP CER 20PF 25V C0G/NP0 0402 |
9,900 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 20 pF | ±2% | 25V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
-1,45mm.jpg)
|
GCJ21BR71H105MA01KCAP CER |
9,750 |
|
Datasheet |
GCJ | Tape & Reel (TR) | Active | 1 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
.JPG)
|
CBR04C109A3GACCAP CER 1PF 25V C0G/NP0 0402 |
9,730 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 1 pF | ±0.05pF | 25V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
GA0805Y103KBABT31GCAP CER 10000PF 50V X7R 0805 |
9,000 |
|
Datasheet |
GA | Tape & Reel (TR) | Active | 10000 pF | ±10% | 50V | X7R | -55°C ~ 150°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|

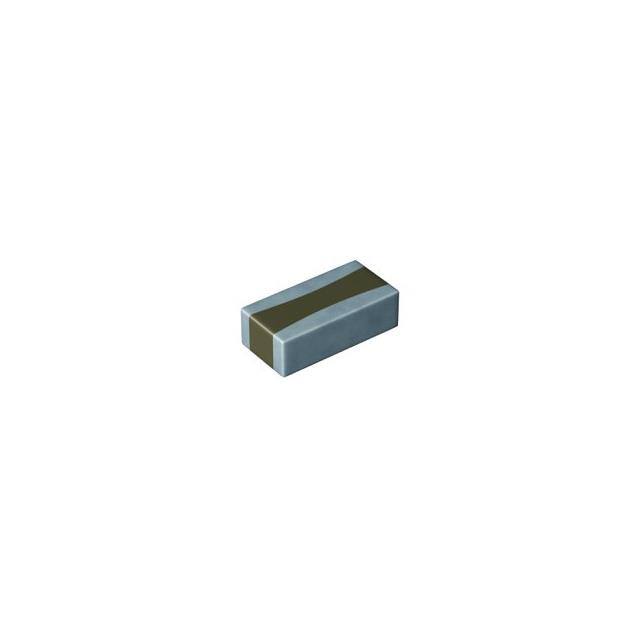

MSRLA103SC6225MFNA01CAP CER 2.2UF 4V X6S 0204 |
9,000 |
|
Datasheet |
MSRL | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 4V | X6S | -55°C ~ 105°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0204 (0510 Metric) | 0.020" L x 0.039" W (0.52mm x 1.00mm) | - | 0.014" (0.35mm) | - | - |
|
|
ACC0805X105K050TXCAP CER 0805 X7R 1UF 50V AUTO |
9,000 |
|
Datasheet |
ACC | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
ACC0805X225K025TXCAP CER 0805 X7R 2.2UF 25V AUTO |
9,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C0603C683J1RACAUTOCAP CER 0603 68NF 100VDC X7R |
8,320 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 0.068 µF | ±5% | 100V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.94mm) | - | - |
