Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CQ0201ARNPO8BN2R7CAP CER 2.7PF 25V C0G/NPO 0201 |
29,990 |
|
Datasheet |
CQ | Tape & Reel (TR) | Active | 2.7 pF | ±0.05pF | 25V | C0G, NP0 | -55°C ~ 125°C | High Q | - | General Purpose | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
|
VJ0805Y104KXJATCAP CER 0.1UF 16V X7R 0805 |
24,794 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 16V | X7R | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
GA0402A221JXAAC31GCAP CER 220PF 50V C0G/NP0 0402 |
20,000 |
|
Datasheet |
GA | Tape & Reel (TR) | Active | 220 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 150°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - | - |
|
MSAYE105SSD182KFNA01CAP CER 1800PF 16V 0402 |
19,890 |
|
Datasheet |
MSAY | Tape & Reel (TR) | Active | 1800 pF | ±10% | 16V | - | -55°C ~ 125°C | Low Distortion | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
C0402C820K3GACTUCAP CER 82PF 25V C0G/NP0 0402 |
19,800 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 82 pF | ±10% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
C0402C102M8RACTUCAP CER 1000PF 10V X7R 0402 |
19,640 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 1000 pF | ±20% | 10V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|

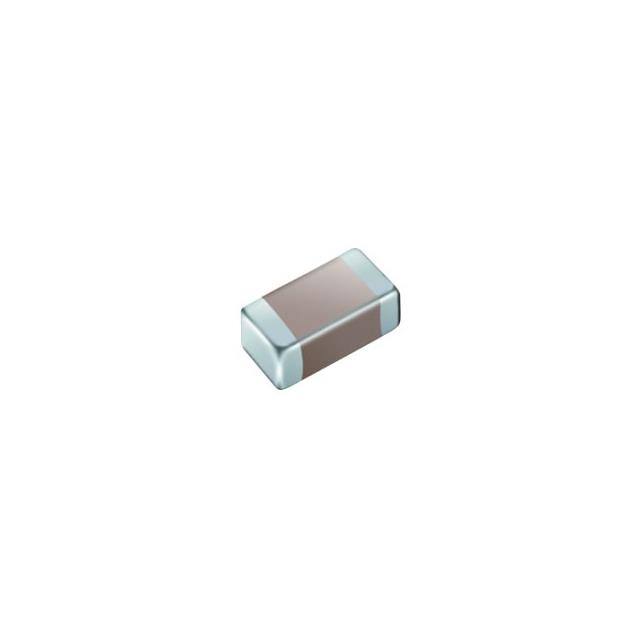

MSAYE105SSD222KFNA01CAP CER 2200PF 16V 0402 |
19,586 |
|
Datasheet |
MSAY | Tape & Reel (TR) | Active | 2200 pF | ±10% | 16V | - | -55°C ~ 125°C | Low Distortion | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
MSAYE105SSD272KFNA01CAP CER 2700PF 16V 0402 |
19,300 |
|
Datasheet |
MSAY | Tape & Reel (TR) | Active | 2700 pF | ±10% | 16V | - | -55°C ~ 125°C | Low Distortion | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
CC1206KFX7R7BB225CAP CER 2.2UF 16V X7R 1206 |
19,000 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.049" (1.25mm) | - | - |
-1,45mm.jpg)
|
CS1206JKNPOCBN100CAP CER 10PF 1KV C0G/NPO 1206 |
17,430 |
|
Datasheet |
CS | Tape & Reel (TR) | Active | 10 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.057" (1.45mm) | - | - |
|
|
C3216X7R1E475K160DCCOMMERCIAL GRADE,1206,X7R,25V,4. |
16,000 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 25V | X7R | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
KGM15AR71H223JMCAP CER 0.022UF 50V X7R 0603 |
15,000 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
|
KGM15AR71H153JMCAP CER 0.015UF 50V X7R 0603 |
14,990 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.015 µF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
-0,60x0,30x0,33mm.jpg)
|
CBR02C808A3GACCAP CER 0.8PF 25V C0G/NP0 0201 |
14,950 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 0.8 pF | ±0.05pF | 25V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
|
|
CBR02C208A5GACCAP CER 0.2PF 50V C0G/NP0 0201 |
14,840 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 0.2 pF | ±0.05pF | 50V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
|
|
KGM15AR71C333JMCAP CER 0.033UF 16V X7R 0603 |
14,790 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 16V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
|
CBR02C708A5GACCAP CER 0.7PF 50V C0G/NP0 0201 |
14,686 |
|
Datasheet |
CBR-SMD RF C0G | Tape & Reel (TR) | Active | 0.7 pF | ±0.05pF | 50V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
|
MSASL1LHXB5104MRNA01CAP CER 0.1UF 10V X5R 0402 |
14,640 |
|
Datasheet |
MSAS | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 10V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.006" (0.15mm) | - | - |
-1,60x0,80x0,87mm.jpg)
|
C0603C201JAGAC7411CAP CER 200PF 250V C0G/NP0 0603 |
14,545 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 200 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
KGM03AR51C152KHCAP CER 1500PF 16V X5R 0201 |
14,370 |
|
Datasheet |
KGM - X5R | Tape & Reel (TR) | Active | 1500 pF | ±10% | 16V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
