Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAASL21GSB7475KTNA01CAP CER 4.7UF 10V X7R 0805 |
2,800 |
|
Datasheet |
MAAS | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 10V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.053" (1.35mm) | - | - |
|
C322C103M1R5TACAP CER 10000PF 100V X7R RADIAL |
2,790 |
|
Datasheet |
GoldMax 300 Comm X7R | Bulk | Active | 10000 pF | ±20% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.260" (6.60mm) | - | 0.200" (5.08mm) | Formed Leads |
|
KGM15AR71E123JTCAP CER 0.012UF 25V X7R 0603 |
2,748 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.012 µF | ±5% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
-0,94mm.jpg)
|
08055C184KAT2ACAP CER SMD |
2,717 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.18 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | - | - | - |
|

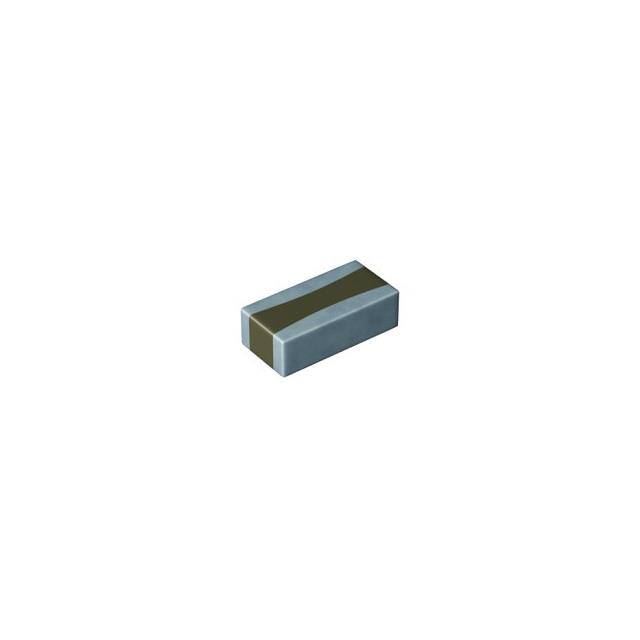

MSRLT219SB7225MTNA01CAP CER 2.2UF 25V X7R 0508 |
2,690 |
|
Datasheet |
MSRL | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 25V | X7R | -55°C ~ 125°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0508 (1220 Metric) | 0.049" L x 0.079" W (1.25mm x 2.00mm) | - | 0.037" (0.95mm) | - | - |
|
CC1206JKNPODBN181CAP CER 180PF 2KV C0G/NPO 1206 |
2,608 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 180 pF | ±5% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.057" (1.45mm) | - | - |
-2,00x1,20x1,00mm.jpg)
|
C0805C473J4RECAUTOCAP CER 0805 47NF 16V X7R 5% |
2,470 |
|
Datasheet |
ESD SMD Auto X7R | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 16V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, ESD Protection | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
|
C315C102K5R5TA7303CAP CER 1000PF 50V X7R RADIAL |
2,450 |
|
Datasheet |
GoldMax 300 Comm X7R | Tape & Reel (TR) | Active | 1000 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.183" (4.66mm) | - | 0.100" (2.54mm) | Straight |
|
|
C317C101K5R5TA7301CAP CER RAD MONO |
2,448 |
|
Datasheet |
GoldMax 300 Comm X7R | Tape & Reel (TR) | Active | 100 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
-1,40mm.jpg)
|
GCM21BR71C475MA73LCAP CER 4.7UF 16V X7R 0805 |
2,410 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 16V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
|
C317C101K1R5TACAP CER 100PF 100V X7R RADIAL |
2,358 |
|
Datasheet |
GoldMax 300 Comm X7R | Bulk | Active | 100 pF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
|
|
KGM21ACG1E222KUCAP CER 2200PF 25V C0G/NP0 0805 |
2,340 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 2200 pF | ±10% | 25V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
MCAST31LSB5475KTNA01CAP CER 4.7UF 25V X5R 1206 |
2,000 |
|
Datasheet |
MCAS | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 25V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
MCASE31LSB5106MTNA01CAP CER 10UF 16V X5R 1206 |
1,982 |
|
Datasheet |
MCAS | Tape & Reel (TR) | Active | 10 µF | ±20% | 16V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
0805YC104K4Z2ACAP CER 0.1UF 16V X7R 0805 |
1,980 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 16V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
-0,91mm.jpg)
|
06031U1R0BAT2ACAP CER 1PF 100V NP0 0603 |
1,980 |
|
Datasheet |
KGQ | Tape & Reel (TR) | Active | 1 pF | ±0.1pF | 100V | C0G, NP0 | -55°C ~ 125°C | Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.060" L x 0.030" W (1.52mm x 0.76mm) | - | 0.036" (0.91mm) | - | - |
|
MCASG31LSB5225KTNA01CAP CER 2.2UF 35V X5R 1206 |
1,980 |
|
Datasheet |
MCAS | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 35V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
KAM31AR72J103KUCAP CER 10000PF 630V X7R 1206 |
1,818 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10000 pF | ±10% | 630V | X7R | -55°C ~ 125°C | High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.060" (1.52mm) | - | - |
|
|
CC1206JKNPOZBN152CAP CER 1500PF 630V C0G/NPO 1206 |
1,800 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 1500 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.057" (1.45mm) | - | - |
|
|
KGQ15ACG1H5R6BTCAP CER 5.6PF 50V NP0 0603 |
1,777 |
|
Datasheet |
KGQ | Tape & Reel (TR) | Active | 5.6 pF | ±0.1pF | 50V | C0G, NP0 | -55°C ~ 125°C | Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.060" L x 0.030" W (1.52mm x 0.76mm) | - | 0.036" (0.91mm) | - | - |
