Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C0603C100G5GACAUTOCAP CER 0603 |
3,800 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 10 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | - | - | - |
|
|
KGM31AR72D473MUCAP CER 0.047UF 200V X7R 1206 |
3,790 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.047 µF | ±20% | 200V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
1808AC222KAT2A-62CAP CER SMD |
3,750 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2200 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.181" L x 0.079" W (4.60mm x 2.00mm) | - | - | - | - |
|
|
KGM15AR71A393JTCAP CER 0.039UF 10V X7R 0603 |
3,749 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.039 µF | ±5% | 10V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
|
KGF21BR71E103JTCAP CER 10000PF 25V X7R 0805 |
3,738 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 10000 pF | ±5% | 25V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
|
|
KGM15CT71C475KT0603 X7T 4.7UF10% 16V |
3,700 |
|
Datasheet |
KGM - CM | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 16V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - | - |
|
|
C0402C150K4GACTUCAP CER 15PF 16V C0G/NP0 0402 |
3,597 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 15 pF | ±10% | 16V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
GRM2195C2A273JE01DCAP CER 0.027UF 100V C0GNP0 0805 |
3,446 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.027 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
-1,00mm.jpg)
|
GRM21A5C2J331JWA1DCAP CER MLCC |
3,320 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 330 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
|
|
KGM15ACG2A681JTCAP CER 680PF 100V C0G/NP0 0603 |
3,120 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 680 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
-1,60mm.jpg)
|
GCJ31BR72J682KXJ1LCAP CER 6800PF 630V X7R 1206 |
3,000 |
|
Datasheet |
GCJ | Tape & Reel (TR) | Active | 6800 pF | ±10% | 630V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.061" (1.55mm) | - | - |
|
|
GRM21BZ71C106ME15LCAP CER 10UF 16V X7R 0805 |
2,800 |
|
Datasheet |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C0603C109C3GACTUCAP CER 1PF 25V C0G/NP0 0603 |
2,762 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 1 pF | ±0.25pF | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
C410C821K1R5TACAP CER 820PF 100V X7R AXIAL |
2,636 |
|
Datasheet |
AxiMax 400 Comm X7R | Bulk | Active | 820 pF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Axial | 0.100" Dia x 0.170" L (2.54mm x 4.32mm) | - | - | - | Straight |
|
C316C104M5U5TA7301CAP CER 0.1UF 50V Z5U RADIAL |
2,500 |
|
Datasheet |
GoldMax 300 Comm Z5U | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 50V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.230" (5.84mm) | - | 0.100" (2.54mm) | Formed Leads - Kinked |
|
|
C317C103M5R5TACAP CER RAD MONO |
2,500 |
|
Datasheet |
GoldMax 300 Comm X7R | Bulk | Active | 10000 pF | ±20% | 50V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
|
|
C315C221K2G5TACAP CER 220PF 200V C0G/NP0 RAD |
2,491 |
|
Datasheet |
GoldMax 300 Comm C0G | Bulk | Active | 220 pF | ±10% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.183" (4.66mm) | - | 0.100" (2.54mm) | Straight |
|
MSAST219LB5106KTNA01CAP CER 10UF 25V X5R 0805 |
2,380 |
|
Datasheet |
MSAS | Tape & Reel (TR) | Active | 10 µF | ±10% | 25V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
|

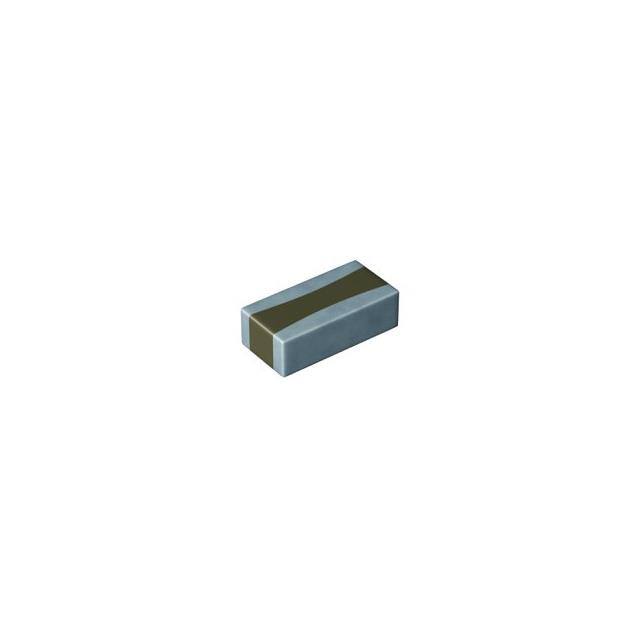

MCRLL165SB5105MTNA01CAP CER 1UF 10V X5R 0306 |
2,375 |
|
Datasheet |
MCRL | Tape & Reel (TR) | Active | 1 µF | ±20% | 10V | X5R | -55°C ~ 85°C | Low ESL (Reverse Geometry) | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0306 (0816 Metric) | 0.031" L x 0.063" W (0.80mm x 1.60mm) | - | 0.022" (0.55mm) | - | - |
|
|
GRM21BZ71H475ME15LCAP CER 4.7UF 50V X7R 0805 |
2,292 |
|
Datasheet |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
