Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1206X475K025TCAP CER 4.7UF 25V X7R 1206 |
2,000 |
|
Datasheet |
HCC | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | - |
|
MCJCG21GCB7105KTPA01CAP CER 1UF 35V X7R 0805 |
1,935 |
|
Datasheet |
MCJC | Tape & Reel (TR) | Active | 1 µF | ±10% | 35V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.053" (1.35mm) | - | - |
|
MSASL168BC6106MTNA01CAP CER 10UF 10V X6S 0603 |
1,900 |
|
Datasheet |
MSAS | Tape & Reel (TR) | Active | 10 µF | ±20% | 10V | X6S | -55°C ~ 105°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - | - |
|
|
C1808X222K202TCAP CER 2200PF 2KV X7R 1808 |
1,825 |
|
Datasheet |
HVC | Tape & Reel (TR) | Active | 2200 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | High Voltage | - | SMPS Filtering | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.181" L x 0.079" W (4.60mm x 2.00mm) | - | 0.181" L x 0.079" W (4.60mm x 2.00mm) | - | - |
|
C410C209DAG5TACAP CER 2PF 250V C0G/NP0 AXIAL |
1,735 |
|
Datasheet |
AxiMax 400 Comm C0G | Bulk | Active | 2 pF | ±0.5pF | 250V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Axial | 0.095" Dia x 0.170" L (2.41mm x 4.32mm) | - | - | - | Straight |
-0,90mm.jpg)
|
06035C223JAZ2ACAP CER 0.022UF 50V X7R 0603 |
1,450 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 50V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
-1,00mm.jpg)
|
GCM31A5C2J152JX01DCAP CER 1500PF 630V C0G/NP0 1206 |
1,300 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 1500 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.039" (1.00mm) | - | - |
|
|
KGM05AR71E473KNCAP CER 0.047UF 25V X7R 0402 |
49,886 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
-0,14T-GRM.jpg)
|

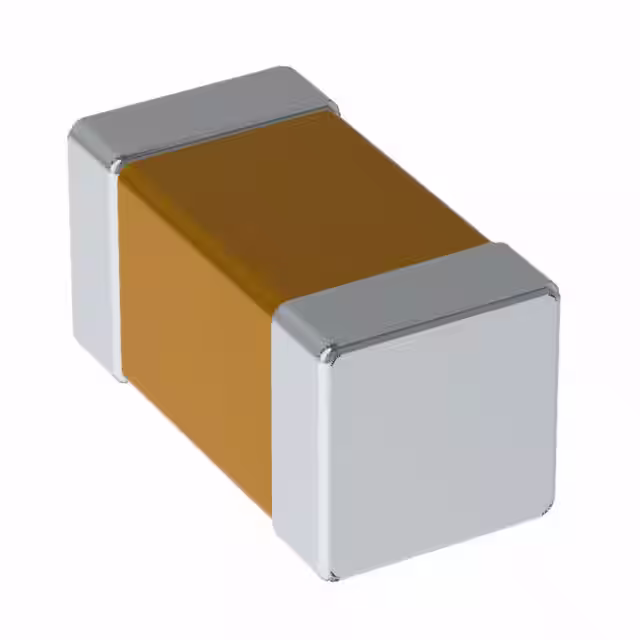

GRM0115C1E5R0CE01LCAP CER 5PF 25V C0G/NP0 008004 |
49,700 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 5 pF | ±0.25pF | 25V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 008004 (0201 Metric) | 0.010" L x 0.005" W (0.25mm x 0.13mm) | - | 0.005" (0.14mm) | - | - |
|
CQ0201ARNPO9BN1R5CAP CER 1.5PF 50V C0G/NPO 0201 |
30,000 |
|
Datasheet |
CQ | Tape & Reel (TR) | Active | 1.5 pF | ±0.05pF | 50V | C0G, NP0 | -55°C ~ 125°C | High Q | - | General Purpose | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
-1,00x0,50x0,55mm.jpg)
|
C0402C160J5GACAUTOCAP CER 16PF 50V C0G/NP0 0402 |
28,272 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 16 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
C0402C183K4RACAUTOCAP CER 0.018UF 16V X7R 0402 |
27,000 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 0.018 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
CL21C220JHC3PNCCAP CER 22PF 630V C0G 0805 |
20,000 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 22 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
|
|
0402N3R3C500NTMULTILAYER CERAMIC CAPACITOR |
19,830 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 3.3 pF | ±0.25pF | 50V | C0G, NP0 (1B) | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - | - |
|
|
KGM03ACG1E390JHCAP CER 39PF 25V C0G/NP0 0201 |
17,672 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 39 pF | ±5% | 25V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
|
|
C0402C620J3GACTUCAP CER 62PF 25V C0G/NP0 0402 |
17,549 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 62 pF | ±5% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
GCM31A5C2J331JX01DCAP CER 330PF 630V C0G/NP0 1206 |
16,400 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 330 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.039" (1.00mm) | - | - |
|
|
CGA4J1X7R0J106K125DCAUTOMOTIVE GRADE,0805,X7R,6.3V,1 |
15,328 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 10 µF | ±10% | 6.3V | X7R | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
KGM03ACG1H680JHCAP CER 68PF 50V C0G/NP0 0201 |
15,000 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 68 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
-1,40mm.jpg)
|
0805YG105ZAT4ACAP CER 1UF 16V Y5V 0805 |
14,870 |
|
Datasheet |
KGM - Y5V | Tape & Reel (TR) | Active | 1 µF | -20%, +80% | 16V | Y5V (F) | -30°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
