Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C322C102K1G5TACAP CER 1000PF 100V C0G/NP0 RAD |
1,982 |
|
Datasheet |
GoldMax 300 Comm C0G | Bulk | Active | 1000 pF | ±10% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.260" (6.60mm) | - | 0.200" (5.08mm) | Formed Leads |
|
C323C271K2G5TACAP CER 270PF 200V C0G/NP0 RAD |
1,780 |
|
Datasheet |
GoldMax 300 Comm C0G | Bulk | Active | 270 pF | ±10% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Formed Leads |
|
MSASE32NSB7106KTNA01CAP CER 10UF 16V X7R 1210 |
1,695 |
|
Datasheet |
MSAS | Tape & Reel (TR) | Active | 10 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.083" (2.10mm) | - | - |
|
|
06033C683K4T2ACAP CER 0.068UF 25V X7R 0603 |
1,694 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.068 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
C1206X475K050TCAP CER 4.7UF 50V X7R 1206 |
1,575 |
|
Datasheet |
HCC | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | - |
|
CS45-E2GA152M-NKACAP CER 1500PF 440VAC RADIAL |
1,570 |
|
Datasheet |
CS45 | Bulk | Active | 1500 pF | ±20% | 440VAC | E | -25°C ~ 125°C | High Voltage | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.295" Dia (7.50mm) | - | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
|
C0603C222J1RACTUCAP CER 2200PF 100V X7R 0603 |
1,052 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 2200 pF | ±5% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
VJ0402D8R2CXCAJCAP CER 8.2PF 200V C0G/NP0 0402 |
128,055 |
|
Datasheet |
VJ HIFREQ | Tape & Reel (TR) | Active | 8.2 pF | ±0.25pF | 200V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.61mm) | - | - |
|
|
C0603C102K1RALTUCAP CER 1000PF 100V X7R 0603 |
42,645 |
|
Datasheet |
SMD Comm X7R SnPb | Tape & Reel (TR) | Active | 1000 pF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | High Reliability, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
KGM05ACG1H121GHCAP CER 120PF 50V C0G/NP0 0402 |
40,000 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 120 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
CL21C101JHC3PNCCAP CER 100PF 630V C0G 0805 |
19,946 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 100 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
|
|
AY2102M29Y5US63L0CERAMIC CAP RAD DISC |
18,930 |
|
Datasheet |
AY2 | Bulk | Active | 1000 pF | ±20% | 440VAC | Y5U (E) | -55°C ~ 125°C | - | AEC-Q200, X1, Y2 | Safety, Automotive | - | Through Hole | Radial, Disc | 0.295" Dia (7.50mm) | 0.413" (10.50mm) | - | 0.394" (10.00mm) | Straight |
|
|
12065C105K4Z4ACAP CER ADVANCE PRODUCT |
15,315 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | - | - | - |
|

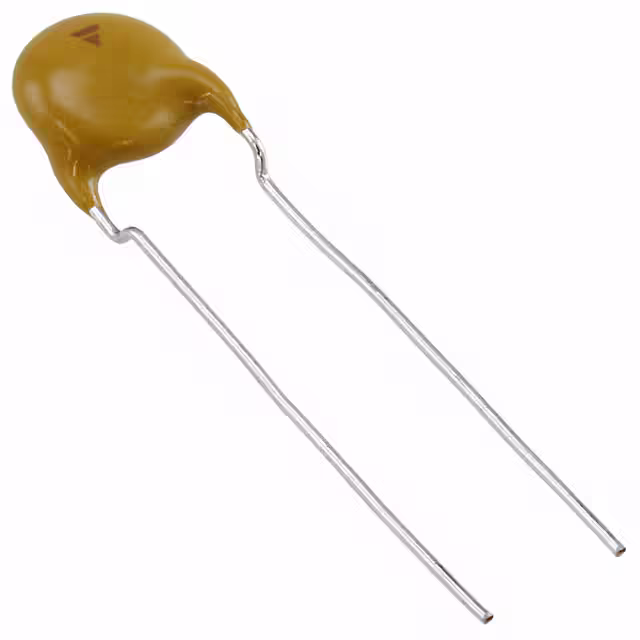

VY2222M35Y5UG63V7CAP CER 2200PF 300VAC Y5U RADIAL |
15,035 |
|
Datasheet |
VY2 | Bulk | Active | 2200 pF | ±20% | 440VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.354" Dia (9.00mm) | 0.512" (13.00mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
F102K39Y5RN6TK5RCAP CER 1000PF 1KV Y5R RADIAL |
13,140 |
|
Datasheet |
F | Tape & Reel (TR) | Active | 1000 pF | ±10% | 1000V (1kV) | Y5R | -30°C ~ 125°C | High Voltage | - | SMPS Filtering | - | Through Hole | Radial, Disc | 0.394" Dia (10.00mm) | - | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
C0805C569C1GACTUCAP CER 5.6PF 100V C0G/NP0 0805 |
11,200 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 5.6 pF | ±0.25pF | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
KGM21BCG1H102GMCAP CER 1000PF 50V C0G/NP0 0805 |
10,000 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 1000 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
|
|
KGM21AR51A475KLCAP CER 4.7UF 10V X5R 0805 |
9,990 |
|
Datasheet |
KGM - X5R | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 10V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
KGM05ACG1H151GHCAP CER 150PF 50V C0G/NP0 0402 |
9,975 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 150 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
KGM05ACG1H331GHCAP CER 330PF 50V C0G/NP0 0402 |
9,285 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 330 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
