Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-3,20x2,50x2,80mm.jpg)
|
C1210C473KDRACAUTOCOMSMDHIVOLTAGE.047UF 1000V |
5,737 |
|
Datasheet |
SMD Auto X7R HV | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 1000V (1kV) | X7R | -55°C ~ 85°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
|
KGM21AS72A105KUCAP CER 1UF 100V X7S 0805 |
5,352 |
|
Datasheet |
KGM - X7S | Tape & Reel (TR) | Active | 1 µF | ±10% | 100V | X7S | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
KGM03ACG1E2R2BHCAP CER 2.2PF 25V C0G/NP0 0201 |
4,810 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 2.2 pF | ±0.1pF | 25V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
-3,20x1,60x1,80mm.jpg)
|
C1206C225K5RECAUTO7210CAP CER 1206 2.2UF 50V X7R 10% |
4,415 |
|
Datasheet |
ESD SMD Auto X7R | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, ESD Protection | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
KGM15BCG1H272JTCAP CER 2700PF 50V C0G/NP0 0603 |
4,193 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 2700 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.037" (0.95mm) | - | - |
|
|
KGM15ACG1E390FTCAP CER 39PF 25V C0G/NP0 0603 |
4,000 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 39 pF | ±1% | 25V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
-1,00mm.jpg)
|
GCM21A7U2E561JX01DCAP CER 560PF 250V U2J 0805 |
4,000 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 560 pF | ±5% | 250V | U2J | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
|
|
KGF21KR71H154KUCAP CER 0.15UF 50V X7R 0805 |
4,000 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 0.15 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
.jpg)
|
CGA5L2X7R1E225M160AECAP CER 2.2UF 25V X7R 1206 |
4,000 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 25V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
|
|
C0805X332K2RACTUCAP CER 3300PF 200V X7R 0805 |
4,000 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 3300 pF | ±10% | 200V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (0.98mm) | - | - |
-1,27mm.jpg)
|
08051C153K4Z2ACAP CER SMD |
4,000 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 0.015 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | - | - | - |
|
|
KGM15AR70J154JTCAP CER 0.15UF 6.3V X7R 0603 |
4,000 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.15 µF | ±5% | 6.3V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|

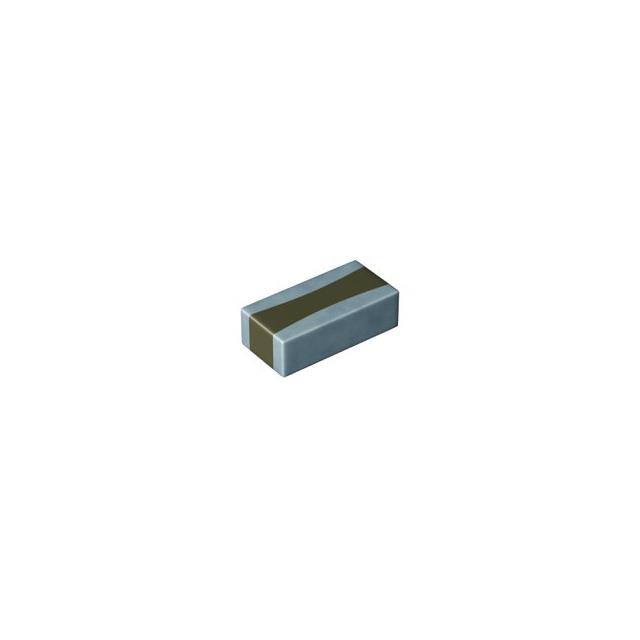

MCRLL219SB5475KTNA01CAP CER 4.7UF 10V X5R 0508 |
4,000 |
|
Datasheet |
MCRL | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 10V | X5R | -55°C ~ 85°C | Low ESL (Reverse Geometry) | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0508 (1220 Metric) | 0.049" L x 0.079" W (1.25mm x 2.00mm) | - | 0.037" (0.95mm) | - | - |
|
MSASG168BB5475MTNA01CAP CER 4.7UF 35V X5R 0603 |
4,000 |
|
Datasheet |
MSAS | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 35V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - | - |
|
|
GCG2195G1H682JA01DCAP CER 6800PF 50V X8G 0805 |
4,000 |
|
Datasheet |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KAF15AR71C103KTCAP CER 10000PF 16V X7R 0603 |
3,999 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 10000 pF | ±10% | 16V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
|
KGM15ACG1C101FTCAP CER 100PF 16V C0G/NP0 0603 |
3,996 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 100 pF | ±1% | 16V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
|
KGM15ACG1E271FTCAP CER 270PF 25V C0G/NP0 0603 |
3,995 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 270 pF | ±1% | 25V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
|
KGM15ACG1C120FTCAP CER 12PF 16V C0G/NP0 0603 |
3,986 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 12 pF | ±1% | 16V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
|
KGM15BR71A334KTCAP CER 0.33UF 10V X7R 0603 |
3,941 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 10V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.037" (0.95mm) | - | - |
