Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C317C681J1G5TA7301CAP CER RAD MONO |
1,750 |
|
Datasheet |
GoldMax 300 Comm C0G | Tape & Reel (TR) | Active | 680 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
-2,00x1,20x1,00mm.jpg)
|
C0805F224M5RACAUTO7210CAP CER 0.22UF 50V X7R 0805 |
19,724 |
|
Datasheet |
SMD Auto X7R FO | Tape & Reel (TR) | Active | 0.22 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Open Mode | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
|
|
CC1206MFX5R6BB106CAP CER 10UF 10V X5R 1206 |
16,000 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 10 µF | ±20% | 10V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
CC1206JRNPOBBN560CAP CER 56PF 500V C0G/NPO 1206 |
15,860 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 56 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | - | - | - |
|
|
C0805C181J5RACAUTOCAP CER 180PF 50V X7R 0805 |
15,820 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 180 pF | ±5% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
-0,33mm-C-Series.jpg)
|
C0603C104J5RACAUTO7411CAP CER 0.1UF 50V X7R 0603 |
12,340 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 0.1 µF | ±5% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
KGM05ACG1H102KHCAP CER 1000PF 50V C0G/NP0 0402 |
9,999 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 1000 pF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
1C30X7R103K050BCAP CER 10000PF 50V X7R RADIAL |
9,891 |
|
Datasheet |
Monolythic®, 1C30 | Bulk | Active | 10000 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.250" (6.35mm) | - | 0.300" (7.62mm) | Formed Leads |
|
|
GRT188R6YA475KE13JCAP CER 4.7UF 35V X5R 0603 |
9,537 |
|
Datasheet |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
VY1222M43Y5UC63L0CAP CER 2200PF 760VAC Y5U RADIAL |
8,180 |
|
Datasheet |
VY1 | Bulk | Active | 2200 pF | ±20% | 760VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.433" Dia (11.00mm) | 0.551" (14.00mm) | - | 0.394" (10.00mm) | Straight |
|
|
C0603C823J4RACTUCAP CER 0.082UF 16V X7R 0603 |
7,990 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.082 µF | ±5% | 16V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
AC0805KFX7R9BB105CAP CER 1UF 50V X7R 0805 |
6,800 |
|
Datasheet |
AC | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
KGM32ECG2A152JUCAP CER 1500PF 100V C0G/NP0 1210 |
6,000 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 1500 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.057" (1.45mm) | - | - |
|

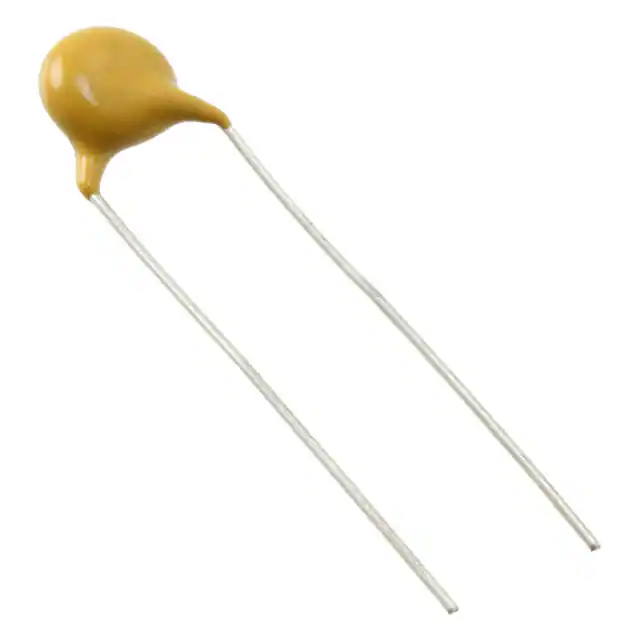

AY2471K29Y5SS63L7CAP CER 470PF 440VAC Y5S RADIAL |
6,000 |
|
Datasheet |
AY2 | Bulk | Active | 470 pF | ±10% | 440VAC | Y5S | -55°C ~ 125°C | - | AEC-Q200, X1, Y2 | Safety, Automotive | - | Through Hole | Radial, Disc | 0.295" Dia (7.50mm) | 0.413" (10.50mm) | - | 0.295" (7.50mm) | Straight |
|
|
C1206C101K2RACAUTOCAP CER 1206 |
5,375 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 100 pF | ±10% | 200V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | - | - | - |
|
|
C0805C681J2RACTUCAP CER 680PF 200V X7R 0805 |
4,000 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 680 pF | ±5% | 200V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
-0,94mm.jpg)
|
08055A750GAT2ACAP CER 75PF 50V NP0 0805 |
3,990 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 75 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.037" (0.94mm) | - | - |
|
|
C0603C829C3GACTUCAP CER 8.2PF 25V C0G/NP0 0603 |
3,990 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 8.2 pF | ±0.25pF | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
C1206C390J2GACTUCAP CER 39PF 200V C0G/NP0 1206 |
3,950 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 39 pF | ±5% | 200V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
|
C0805C103MARACTUCAP CER 10000PF 250V X7R 0805 |
3,950 |
|
Datasheet |
SMD Comm X7R Tip-Ring | Tape & Reel (TR) | Active | 10000 pF | ±20% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
