Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

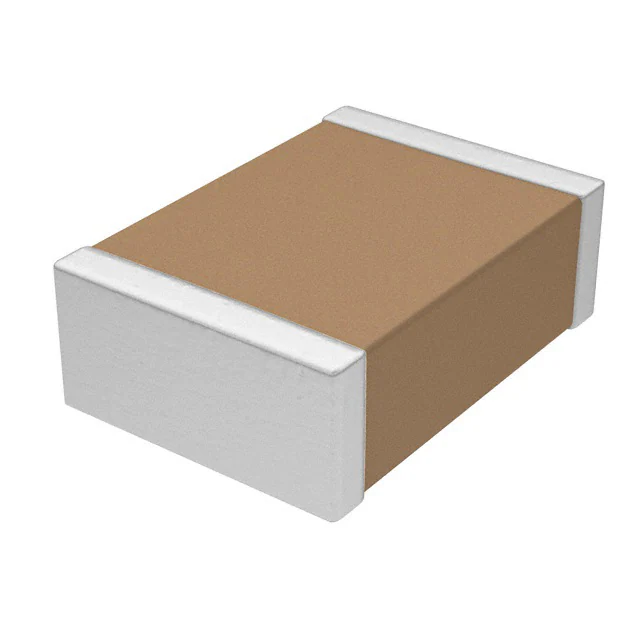

CDR34BX473BKURAJCAP CER 0.047UF 100V BX 1812 |
1,585 |
|
Datasheet |
Military, MIL-PRF-55681, CDR34 | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 100V | BX | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.059" (1.50mm) | - | - |
|
C340C564M1R5TA7303CAP CER 0.56UF 100V X7R RADIAL |
738 |
|
Datasheet |
GoldMax 300 Comm X7R | Tape & Reel (TR) | Active | 0.56 µF | ±20% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Through Hole | Radial | 0.290" L x 0.160" W (7.36mm x 4.07mm) | 0.500" (12.70mm) | - | 0.200" (5.08mm) | Straight |
|
CGP5C102KDYDAA7301CAP CER DISC 1NF 1000V Y5P 10% |
19,999 |
|
Datasheet |
CGP DISC Comm HV | Tape & Reel (TR) | Active | 1000 pF | ±10% | 1000V (1kV) | Y5P (B) | -25°C ~ 85°C | High Voltage | - | Bypass, Decoupling | - | Through Hole | Radial, Disc | 0.295" Dia (7.50mm) | 0.413" (10.50mm) | - | 0.197" (5.00mm) | Straight |
|
|
KTF350B475M32NHT00CAP CER 4.7UF 35V X7R 1210 |
3,200 |
|
Datasheet |
NTF | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 35V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
|
KTS250B335K32N0T00CERAMIC CAP |
3,200 |
|
Datasheet |
NTS | Tape & Reel (TR) | Active | 3.3 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
.jpg)
|
KTF250B335M32NHT00CAP CER 3.3UF 25V X7R 1210 |
3,190 |
|
Datasheet |
NTF | Tape & Reel (TR) | Active | 3.3 µF | ±20% | 25V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
-2,20mm-GCM-Series.jpg)
|
GCM32EC71H106MA03KCAP CER 10UF 50V X7S 1210 |
1,542 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 10 µF | ±20% | 50V | X7S | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.106" (2.70mm) | - | - |
.jpg)
|
C1812C474KARACAUTOCAP CER 0.47UF 250V X7R 1812 |
917 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.073" (1.85mm) | - | - |
|
|
C727U152MZWDBAWL50CAP CER 1.5NF X1/Y2 440V/300V |
917 |
|
Datasheet |
C700KJY SFTY X1-440 Y2-300 | Bag | Active | 1500 pF | ±20% | 440VAC | Y5U (E) | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.354" Dia (9.00mm) | 0.512" (13.00mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
-2,00mm-Tan.jpg)
|
1210Y2K00102KXTCAP CER 1000PF 2KV X7R 1210 |
40,000 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 1000 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.079" (2.00mm) | - | - |
|
|
C0603T474K4RBLTUCAP CER 0603 |
6,396 |
|
Datasheet |
SMD COTS X7R | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | COTS | High Reliability, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.034" (0.87mm) | - | - |
|
|
KTF250B335K32NHT00CAP CER 3.3UF 25V X7R 1210 |
3,200 |
|
Datasheet |
NTF | Tape & Reel (TR) | Active | 3.3 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
|
KVF250L225K32NHT00CERAMIC CAP |
3,200 |
|
Datasheet |
KVF | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 25V | X8L | -55°C ~ 150°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
|
KTF251B154K32NLT00CERAMIC CAP |
3,200 |
|
Datasheet |
NTF | Tape & Reel (TR) | Active | 0.15 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
|
KTS350B475K32N0T00CERAMIC CAP |
3,160 |
|
Datasheet |
NTS | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 35V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
|
CC1812JKX7RYBB224CAP CER 0.22UF 250V X7R 1812 |
2,000 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 0.22 µF | ±5% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | - | - | - |
|
|
C1206C102JDTACAUTOCAP CER 1206 |
2,000 |
|
Datasheet |
SMD Comm X8G HVHT150C | Tape & Reel (TR) | Active | 1000 pF | ±5% | 1000V (1kV) | X8G | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.069" (1.75mm) | - | - |
|
KTD251B104M32A0T00CAP CER 0.1UF 250V X7R RADIAL |
1,978 |
|
Datasheet |
NTD | Cut Tape (CT) | Active | 0.1 µF | ±20% | 250V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Through Hole | Radial | 0.197" L x 0.138" W (5.00mm x 3.50mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | Straight |
|
|
C1808C681JGGACAUTOCAP CER 1808 |
1,950 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 680 pF | ±5% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | - | - | - |
|
|
KTS251B154K32N0T00CAP CER 0.15UF 250V X7R 1210 |
1,580 |
|
Datasheet |
NTS | Tape & Reel (TR) | Active | 0.15 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.102" (2.60mm) | - | - |
