Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1812JA250222KJTSYXCAP CER 2200PF 250VAC X7R 1812 |
1,060 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2200 pF | ±10% | 250VAC | X7R | -55°C ~ 125°C | DC Annex H, Humidity 3B Annex I, High Voltage | X1, Y2 | Safety | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.195" L x 0.126" W (4.95mm x 3.20mm) | - | - | - | - |
-3,20mm-Tan.jpg)
|
1812J3K00220JCTCAP CER 22PF 3KV C0G/NP0 1812 |
1,029 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 22 pF | ±5% | 3000V (3kV) | C0G, NP0 (1B) | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
1812Y1K00221JCTCAP CER 220PF 1KV C0G/NP0 1812 |
1,001 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 220 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
1812J3K00151MXTCAP CER 150PF 3KV X7R 1812 |
1,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 150 pF | ±20% | 3000V (3kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
1812J3K00222MXTCAP CER 2200PF 3KV X7R 1812 |
1,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2200 pF | ±20% | 3000V (3kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
1812J5000103JCTCAP CER 10000PF 500V C0G 1812 |
1,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10000 pF | ±5% | 500V | C0G, NP0 (1B) | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
1812J5000124KXTCAP CER 0.12UF 500V X7R 1812 |
1,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.12 µF | ±10% | 500V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
1812J5000222JCTCAP CER 2200PF 500V C0G/NP0 1812 |
1,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2200 pF | ±5% | 500V | C0G, NP0 (1B) | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
-2,5.jpg)
|

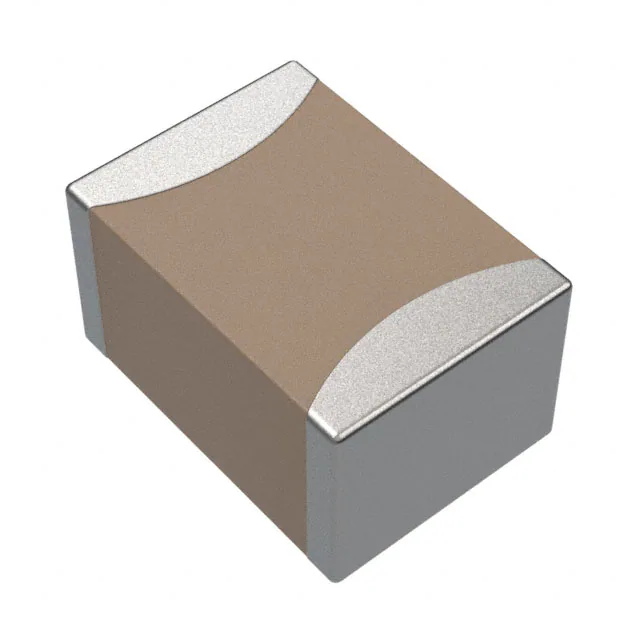

1812Y1000334KXTCAP CER 0.33UF 100V X7R 1812 |
1,000 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
1812Y2000104KXTCAP CER 0.1UF 200V X7R 1812 |
1,000 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 200V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
1812Y2K00332KXTCAP CER 3300PF 2KV X7R 1812 |
1,000 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 3300 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
1812Y3K00102KXTCAP CER 1000PF 3KV X7R 1812 |
1,000 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 1000 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
1812Y3K00470JCTCAP CER 47PF 3KV C0G/NP0 1812 |
1,000 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 47 pF | ±5% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
-4,2mm-Tan.jpg)
|
2220J5000223KXTCAP CER 0.022UF 500V X7R 2220 |
1,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 500V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.098" (2.50mm) | - | - |
|
|
MD0402N820F500YHT-EMCAP CER 82PF 50V C0G/NP0 0402 |
1,000 |
|
Datasheet |
MD | Tape & Reel (TR) | Active | 82 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | Medical, Non-Critical | - | Surface Mount, MLCC | 0402 (1005 Metric) | - | - | - | - | - |
|
|
1812Y3K00150JCTCAP CER 15PF 3KV C0G/NP0 1812 |
984 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 15 pF | ±5% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
1812J2K00332KXTCAP CER 3300PF 2KV X7R 1812 |
975 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 3300 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
2220J1K00473KXTCAP CER 0.047UF 1KV X7R 2220 |
970 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.098" (2.50mm) | - | - |
|
|
1812Y1000224KXTCAP CER 0.22UF 100V X7R 1812 |
950 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.22 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
1812J2K00101JCTCAP CER 100PF 2KV C0G/NP0 1812 |
930 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 100 pF | ±5% | 2000V (2kV) | C0G, NP0 (1B) | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
