Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
22205C106KAR1-EM-EM , NON FLIGHT ENGINEERING MOD |
560 |
|
Datasheet |
Prototype, MIL-PRF-32535 | Tape & Reel (TR) | Active | 10 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.69mm x 5.00mm) | - | 0.110" (2.80mm) | - | - |
|
|
22203C226KAR1-EM-EM , NON FLIGHT ENGINEERING MOD |
559 |
|
Datasheet |
Prototype, MIL-PRF-32535 | Tape & Reel (TR) | Active | 22 µF | ±10% | 25V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.69mm x 5.00mm) | - | 0.110" (2.80mm) | - | - |
|
|
22201C475KAR1-EM-EM , NON FLIGHT ENGINEERING MOD |
510 |
|
Datasheet |
Prototype, MIL-PRF-32535 | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.69mm x 5.00mm) | - | 0.110" (2.80mm) | - | - |
-4,2mm-Tan.jpg)
|
2220Y0250104FFTCAP CER 0.1UF 25V C0G/NP0 2220 |
1,000 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.1 µF | ±1% | 25V | C0G, NP0 | -55°C ~ 125°C | Soft Termination, High Temperature | - | High Reliability, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.098" (2.50mm) | - | - |
|
|
404027K00101FQRAF9LM4040 SIZE - 2 SINTERED SILVER WI |
500 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
404026K00221FQRAF9LM4040 SIZE - 2 SINTERED SILVER WI |
500 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
404026K00181FQRAF9LM4040 SIZE - 2 SINTERED SILVER WI |
500 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
404027K00121FQRAF9LM4040 SIZE - 2 SINTERED SILVER WI |
500 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
404027K00680FQRAF9LM4040 SIZE - 2 SINTERED SILVER WI |
500 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
404027K00151FQRAF9LM4040 SIZE - 2 SINTERED SILVER WI |
500 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
404027K00820FQRAF9LM4040 SIZE - 2 SINTERED SILVER WI |
500 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
404027K00910FQRAF9LM4040 SIZE - 2 SINTERED SILVER WI |
500 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
660R20AZD10660 |
87 |
|
Datasheet |
Cera-Mite 660R | Box | Active | 1000 pF | ±20% | 20000V (20kV) | N4700 | -30°C ~ 85°C | High Voltage | - | General Purpose | - | Through Hole | Axial | 1.457" Dia x 0.669" L (37.00mm x 17.00mm) | - | - | - | Straight |
|
|
M39014/05-2131CAP CER 1UF 100V BR AXIAL |
79 |
|
Datasheet |
Military, MIL-PRF-39014, CKR16 | Bulk | Active | 1 µF | ±10% | 100V | BR | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | Axial | 0.350" Dia x 0.690" L (8.89mm x 17.53mm) | - | - | - | Straight |
|
|
700E221JAR3600XJ16CAP 220PF 3600V AXIAL |
512 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
100E101GTN3600XJ24CAP CER 100PF 3.6KV P90 3838 |
41 |
|
Datasheet |
100E | Bulk | Active | 100 pF | ±2% | 3600V (3.6kV) | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL, Non-Magnetic, High Voltage | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 3838 (9797 Metric) | 0.380" L x 0.380" W (9.65mm x 9.65mm) | - | 0.170" (4.32mm) | - | - |
|
L1GN70G473KA10KPS-MCL SMPS STACK CC70 47NF 200 |
40 |
|
Datasheet |
KPS-MCL Indust C0G HT200C | Tray | Active | 0.047 µF | ±10% | 2000V (2kV) | C0G, NP0 | -55°C ~ 200°C | Low ESL (Stacked), High Temperature | - | SMPS Filtering | - | Through Hole | Stacked DIP, 20 Lead | 1.059" L x 0.300" W (26.90mm x 7.62mm) | 0.340" (8.64mm) | - | 0.100" (2.54mm) | Straight |
|
|
767623K00103GQBAF9LM7676 SIZE - 2 SINTERED SILVER WI |
500 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

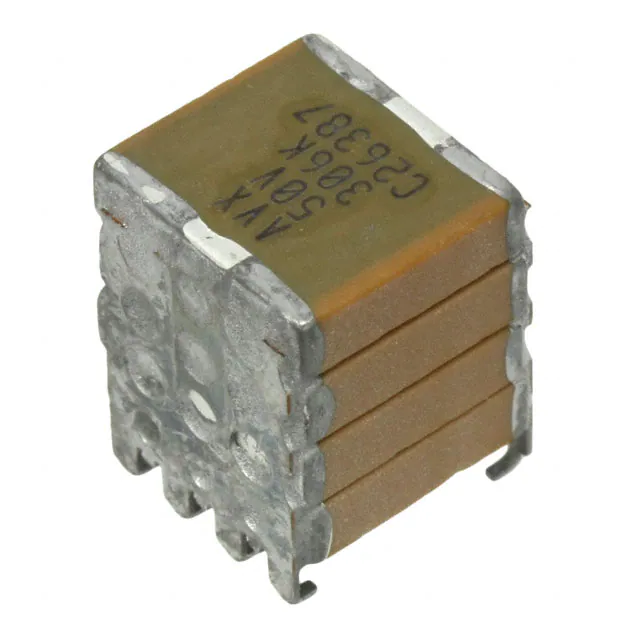

RM045C306KAJ480CAP CER 30UF 50V X7R SMD |
72 |
|
Datasheet |
RM | Bulk | Active | 30 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 8 J-Lead | 0.402" L x 0.441" W (10.20mm x 11.20mm) | - | 0.560" (14.22mm) | - | J-Lead |
|
GMC02CG101J25NTCAP CER 100PF 25V C0G/NP0 0201 |
3,975,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 100 pF | ±5% | 25V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
