Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-1,45mm-C-Series.jpg)
|
C2012C0G2E182K125AACAP CER 1800PF 250V C0G 0805 |
1,186 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 1800 pF | ±10% | 250V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
SA102C103KAACAP CER 10000PF 200V X7R AXIAL |
0 |
|
Datasheet |
SpinGuard® SA | Tape & Reel (TR) | Active | 10000 pF | ±10% | 200V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Axial | 0.100" Dia x 0.170" L (2.54mm x 4.32mm) | - | - | - | Straight |
|
0805N1R5C500ADCap.,SMD,0805,NP0,1.5pF,0.25pF,5 |
20,000 |
|
Datasheet |
0805 | Tape & Reel (TR) | Active | 1.5 pF | ±0.25pF | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.027" (0.68mm) | - | - |
|
|
0603B105K500XDCAP. SMD,0603,X7R,1UF,10%,50V |
12,000 |
|
Datasheet |
0603 | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - | - |
|
|
SA105C103JAACAP CER 10000PF 50V X7R AXIAL |
0 |
|
Datasheet |
SpinGuard® SA | Tape & Reel (TR) | Obsolete | 10000 pF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Axial | 0.100" Dia x 0.170" L (2.54mm x 4.32mm) | - | - | - | Straight |
-0,90mm.jpg)
|
LD035C682KAB2ACAP CER 6800PF 50V X7R 0603 |
0 |
|
Datasheet |
LD | Tape & Reel (TR) | Active | 6800 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.90mm) | - | - |
|
GMC10CG682F50NTCAP CER 6800PF 50V C0G/NP0 0603 |
20,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 6800 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
CHV1812N1K0473KXTCAP CER 0.047UF 1KV X7R 1812 |
6,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.118" (3.00mm) | - | - |
|

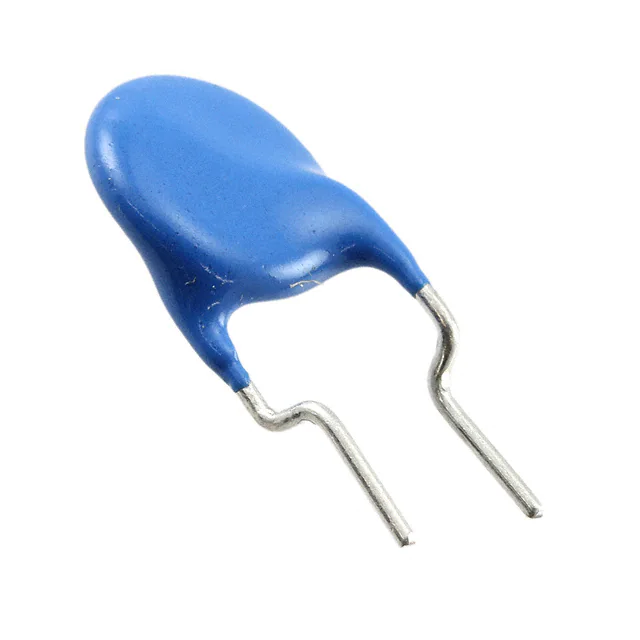

CK45-R3AD102K-VRACAP CER 1000PF 1KV RADIAL |
228,360 |
|
Datasheet |
CK45-RR | Cut Tape (CT) | Obsolete | 1000 pF | ±10% | 1000V (1kV) | R | -25°C ~ 125°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | 0.354" Dia (9.00mm) | 0.512" (13.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
GMC31X7R475K100NTCAP CER 4.7UF 100V X7R 1206 |
128,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
NMC0805X5R106K6.3TRPLP2KFCAP SMT080510F6.3VDC |
98,535 |
|
Datasheet |
NMC High CV | Tape & Reel (TR) | Active | 10 µF | ±10% | 6.3V | X5R | -55°C ~ 85°C | Low ESL, Low ESR | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
NMC0805X7R104K100TRPLPFCAP SMT08050.1F100VDC |
60,725 |
|
Datasheet |
NMC | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Low ESL, Low ESR | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.053" (1.35mm) | - | - |
|
|
QLCD250Q680G1GV001TCAP CER 68PF 25V C0G/NP0 0201 |
36,724 |
|
Datasheet |
L | Tape & Reel (TR) | Obsolete | 68 pF | ±2% | 25V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.013" (0.33mm) | - | - |
|
|
GMC10X7R105K50NTCAP0603 X7R 1UF 10% 50V |
34,903 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
|
NMC0402X5R105K25TRPFCAP SMT04021F25VDC |
27,598 |
|
Datasheet |
NMC High CV | Tape & Reel (TR) | Active | 1 µF | ±10% | 25V | X5R | -55°C ~ 85°C | Low ESL, Low ESR | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - | - |
|
|
C2012C0G1H562K060AACAP CER 5600PF 50V C0G 0805 |
26,044 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 5600 pF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.030" (0.75mm) | - | - |
|
GMC01CG6R8B16NTCAP01005 COG 6.8PF .1PF 16V |
20,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 6.8 pF | ±0.1pF | 16V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | 0.009" (0.22mm) | - | - |
|
|
CL31A475KOCLNNCCAP CER 4.7UF 16V X5R 1206 |
18,241 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 16V | X5R | -55°C ~ 85°C | Low Profile | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.95mm) | - | - |
|
|
GMC02X5R225M10NTCAP0201 X5R 2.2UF 20% 10V |
17,930 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 10V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | 0.015" (0.39mm) | - | - |
|
|
GMC31X5R685K16NTCAP CER 6.8UF 16V X5R 1206 |
12,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 6.8 µF | ±10% | 16V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
