Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GMC21CG8R0C50NTCAP0805 COG 8PF .25PF 50V |
4,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 8 pF | ±0.25pF | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.028" (0.70mm) | - | - |
|
GMC10CG272J100NTCAP0603 COG 2700PF 5% 100V |
3,996 |
|
Datasheet |
GMC | Cut Tape (CT) | Active | 2700 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|

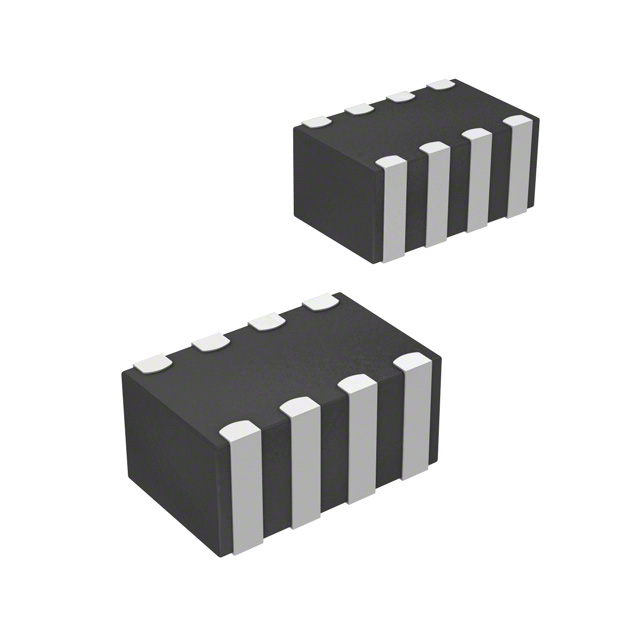

CLLE1AX7R0G473M050ACCAP CER 0.047UF 4V X7R 0805 |
3,990 |
|
Datasheet |
CLL | Tape & Reel (TR) | Obsolete | 0.047 µF | ±20% | 4V | X7R | -55°C ~ 125°C | Low ESL (Multi-Terminal) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.022" (0.55mm) | - | - |
-0,90mm.jpg)
|
QMK316BJ473KL-TCAP CER 0.047UF 250V X5R 1206 |
3,990 |
|
- |
M | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 250V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
CHV0603N2506R8CCTHVCAP0603 COG 6.8PF .25PF 250V |
3,954 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 6.8 pF | ±0.25pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
|
CHV1206N500471JCTHVCAP1206 COG 470PF 5% 500V |
3,950 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 470 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
.jpg)
|
CGJ3E2X7R1E154K080AACAP CER 0.15UF 25V X7R 0603 |
3,902 |
|
Datasheet |
CGJ | Tape & Reel (TR) | Obsolete | 0.15 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
|
CHV0805N250122JCTHVCAP0805 COG 1200PF 5% 250V |
3,900 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 1200 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
CHV0603N2504R7CCTHVCAP0603 COG 4.7PF .25PF 250V |
3,880 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 4.7 pF | ±0.25pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | SMPS Filtering | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
|
GMC10X7R334K50NTCAP0603 X7R .33UF 10% 50V |
3,880 |
|
Datasheet |
GMC | Cut Tape (CT) | Active | 0.33 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
|
GMC21CG151G50NTCAP0805 COG 150PF 2% 50V |
3,850 |
|
Datasheet |
GMC | Cut Tape (CT) | Active | 150 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.028" (0.70mm) | - | - |
-0,95mm-C-Series.jpg)
|
C1608JB1V334M080ABCAP CER 0.33UF 35V JB 0603 |
3,813 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 0.33 µF | ±20% | 35V | JB | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
|
|
CHV0603N2501R3BCTHVCAP0603 COG 1.3PF .1PF 250V |
3,710 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 1.3 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | General Purpose | - | General Purpose | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
|
CHV0603N2503R9CCTHVCAP0603 COG 3.9PF .25PF 250V |
3,700 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 3.9 pF | ±0.25pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
|
CHV0603N2501R2BCTHVCAP0603 COG 1.2PF .1PF 250V |
3,680 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 1.2 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | General Purpose | - | General Purpose | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
GMC31X7R103K200NTCAP1206 X7R .01UF 10% 200V |
3,675 |
|
Datasheet |
GMC | Cut Tape (CT) | Active | 10000 pF | ±10% | 200V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
CLLE1AX7S0G104M050ACCAP CER 0.1UF 4V X7S 0805 |
3,668 |
|
Datasheet |
CLL | Tape & Reel (TR) | Obsolete | 0.1 µF | ±20% | 4V | X7S | -55°C ~ 125°C | Low ESL (Multi-Terminal) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.022" (0.55mm) | - | - |
-1,45mm-C-Series.jpg)
|
C2012CH2W221K060AACAP CER 220PF 450V CH 0805 |
3,559 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 220 pF | ±10% | 450V | CH | -25°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.030" (0.75mm) | - | - |
.jpg)
|
CGA4J2X8R1H683M125AACAP CER 0.068UF 50V X8R 0805 |
3,385 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 0.068 µF | ±20% | 50V | X8R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
C1608C0G1E562J080AACAP CER 5600PF 25V C0G 0603 |
3,250 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 5600 pF | ±5% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
