Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FG18C0G1H822JNT06CAP CER 8200PF 50V C0G RADIAL |
1,096 |
|
Datasheet |
FG | Cut Tape (CT) | Not For New Designs | 8200 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads |
|
GMC32X7S106K100NTCAP CER 10UF 100V X7S 1210 |
56,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 10 µF | ±10% | 100V | X7S | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
GMC32X7R475K35NTCAP CER 4.7UF 35V X7R 1210 |
226,500 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 35V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
|
GMC43X5R226M25NTCAP CER 22UF 25V X5R 1812 |
214,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 22 µF | ±20% | 25V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.118" (3.00mm) | - | - |
|
CC0805KRX5R6BB475CAP CER 4.7UF 10V X5R 0805 |
66,924 |
|
Datasheet |
CC | Tape & Reel (TR) | Discontinued at Digi-Key | 4.7 µF | ±10% | 10V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
GMC31CG682G50NTCAP CER 6800PF 50V C0G/NP0 1206 |
57,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 6800 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.039" (1.00mm) | - | - |
|

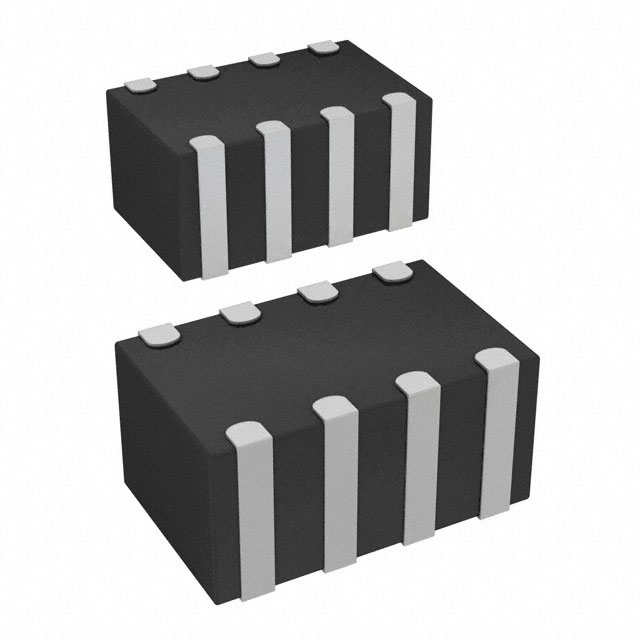

LLA219C70G225MA01LCAP CER 2.2UF 4V X7S 0805 |
47,544 |
|
Datasheet |
LLA | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 4V | X7S | -55°C ~ 125°C | Low ESL (Multi-Terminal) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
|
|
GMC21CG562G50NTCAP CER 5600PF 50V C0G/NP0 0805 |
39,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 5600 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
CGB2T1X5R0G474M022BCCAP CER 0.47UF 4V X5R 0402 |
10,000 |
|
Datasheet |
CGB | Tape & Reel (TR) | Obsolete | 0.47 µF | ±20% | 4V | X5R | -55°C ~ 85°C | Low Profile | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.009" (0.22mm) | - | - |
|
C967U392MZWDCA7317CAP CER 3900PF 440VAC Y5U RADIAL |
9,950 |
|
Datasheet |
C900AC SFTY X1-440 Y2-300 | Cut Tape (CT) | Obsolete | 3900 pF | ±20% | 440VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.512" Dia (13.00mm) | - | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
|
CGB2T3X5R0J474M022BBCAP CER 0.47UF 6.3V X5R 0402 |
9,472 |
|
Datasheet |
CGB | Tape & Reel (TR) | Obsolete | 0.47 µF | ±20% | 6.3V | X5R | -55°C ~ 85°C | Low Profile | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.009" (0.22mm) | - | - |
|
C941U392MYVDBA7317CAP CER 3900PF 400VAC Y5V RADIAL |
0 |
|
Datasheet |
C900AC SFTY X1-400 Y2-250 | Tape & Reel (TR) | Active | 3900 pF | ±20% | 400VAC | Y5V (F) | -40°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.472" Dia (12.00mm) | - | - | 0.394" (10.00mm) | Formed Leads - Kinked |
|
CHV2220N250684KXTCAP CER 0.68UF 250V X7R 2220 |
9,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 0.68 µF | ±10% | 250V | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.118" (3.00mm) | - | - |
|
|
CGB2T3X5R0J224M022BBCAP CER 0.22UF 6.3V X5R 0402 |
8,646 |
|
Datasheet |
CGB | Tape & Reel (TR) | Obsolete | 0.22 µF | ±20% | 6.3V | X5R | -55°C ~ 85°C | Low Profile | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.009" (0.22mm) | - | - |
|
C927U152MZWDBA7317CAP CER 1500PF 440VAC Y5U RADIAL |
8,217 |
|
Datasheet |
C900AC SFTY X1-440 Y2-300 | Cut Tape (CT) | Obsolete | 1500 pF | ±20% | 440VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.433" Dia (11.00mm) | - | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
CQ0603GRNPOYBN100CAP CER 10PF 250V C0G/NPO 0603 |
7,900 |
|
Datasheet |
CQ | Tape & Reel (TR) | Active | 10 pF | ±2% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
-1,45mm-C-Series.jpg)
|
C2012X6S1E225K085ABCAP CER 2.2UF 25V X6S 0805 |
7,789 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 2.2 µF | ±10% | 25V | X6S | -55°C ~ 105°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.039" (1.00mm) | - | - |
|
VJ0805Y103MXCACCAP CER 10000PF 200V X7R 0805 |
4,863 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 10000 pF | ±20% | 200V | X7R | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
C921U222MZWDBA7317CAP CER 2200PF 440VAC Y5U RADIAL |
4,790 |
|
Datasheet |
C900AC SFTY X1-440 Y2-300 | Cut Tape (CT) | Obsolete | 2200 pF | ±20% | 440VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.354" Dia (9.00mm) | - | - | 0.394" (10.00mm) | Formed Leads - Kinked |
.jpg)
|
CGJ3E3X7R1C105K080ABCAP CER 1UF 16V X7R 0603 |
4,688 |
|
Datasheet |
CGJ | Tape & Reel (TR) | Obsolete | 1 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - | - |
