Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLLE1AX7S0J155M085ACCAP CER 1.5UF 6.3V X7S 0805 |
3,197 |
|
Datasheet |
CLL | Tape & Reel (TR) | Obsolete | 1.5 µF | ±20% | 6.3V | X7S | -55°C ~ 125°C | Low ESL (Multi-Terminal) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
|
CHV0805N1K0102JXTHVCAP0805 X7R 1000PF 5% 1KV |
3,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 1000 pF | ±5% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
CHV1206N1K0151KXTHVCAP1206 X7R 150PF 10% 1KV |
3,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 150 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.057" (1.45mm) | - | - |
|
|
CHV0805N500223KXTHVCAP0805 X7R .022UF 10% 500V |
3,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 500V | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
CHV1206N250822JCTHVCAP1206 COG 8200PF 5% 250V |
3,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 8200 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
|
CHV1206N500560JCTHVCAP1206 COG 56PF 5% 500V |
2,995 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 56 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
CHV0603N250220FCTHVCAP0603 COG 22PF 1% 250V |
2,810 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 22 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | General Purpose | - | General Purpose | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
VJ0805Y274MXXTW1BCCAP CER 0.27UF 25V X7R 0805 |
2,649 |
|
Datasheet |
VJ W1BC | Tape & Reel (TR) | Active | 0.27 µF | ±20% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.053" (1.35mm) | - | - |
|

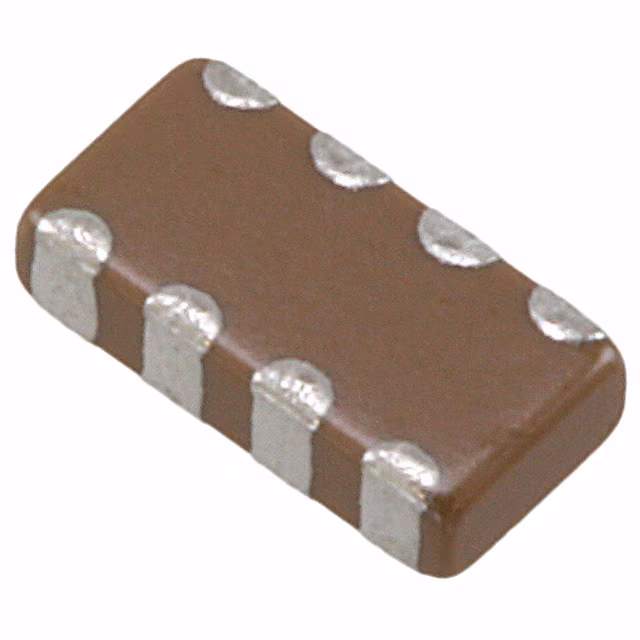

CLLG1AX7R1A105M085ACCAP CER 1UF 10V X7R 1206 |
2,114 |
|
Datasheet |
CLL | Tape & Reel (TR) | Obsolete | 1 µF | ±20% | 10V | X7R | -55°C ~ 125°C | Low ESL (Multi-Terminal) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.95mm) | - | - |
|
FA26X7R2J152KNU06CAP CER 1500PF 630V X7R RADIAL |
1,975 |
|
Datasheet |
FA | Cut Tape (CT) | Not For New Designs | 1500 pF | ±10% | 630V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
FA18X7S2A104KRU06CAP CER 0.1UF 100V X7S RADIAL |
1,929 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 0.1 µF | ±10% | 100V | X7S | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads |
-1,45mm-C-Series.jpg)
|
C2012X6S1E335M125ACCAP CER 3.3UF 25V X6S 0805 |
1,883 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 3.3 µF | ±20% | 25V | X6S | -55°C ~ 105°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
C2012NP02W392J125AACAP CER 3900PF 450V NP0 0805 |
1,776 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 3900 pF | ±5% | 450V | C0G, NP0 | -55°C ~ 150°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
FG24X7T2E333KNT06CAP CER 0.033UF 250V X7T RADIAL |
1,737 |
|
Datasheet |
FG | Cut Tape (CT) | Not For New Designs | 0.033 µF | ±10% | 250V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads |
.jpg)
|
CGA5L2X7R1E225M160ADCAP CER 2.2UF 25V X7R 1206 EPOXY |
1,355 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 25V | X7R | -55°C ~ 125°C | Epoxy Mountable | AEC-Q200 | Automotive | - | Surface Mount, MLCC, Epoxy | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
|
|
GMC43X7R226K50NTCAP1812 X7R 22UF 10% 50V |
94,500 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 22 µF | ±10% | 50V | X7R | -55°C ~ 125°C | General Purpose | - | General Purpose | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.110" (2.80mm) | - | - |
|
|
CL31C331JIHNNNECAP CER 330PF 1KV C0G/NP0 1206 |
48,700 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 330 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
K331K15X7RF53H5GK 50V 330PF 10% X7R BULK GREEN A |
20,000 |
|
Datasheet |
K...G | Bulk | Active | 330 pF | ±10% | 50V | X7R | -55°C ~ 160°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.134" L x 0.083" W (3.40mm x 2.10mm) | 0.252" (6.40mm) | - | 0.197" (5.00mm) | Formed Leads |
-0,95mm-C-Series.jpg)
|
C1608JB1A226M080ACCAP CER 22UF 10V JB 0603 |
13,387 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 22 µF | ±20% | 10V | JB | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - | - |
|
|
GMC04CG680G100NTCAP0402 COG 68PF 2% 100V |
9,978 |
|
Datasheet |
GMC | Cut Tape (CT) | Active | 68 pF | ±2% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
