Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHV1812N1K0681JCTHVCAP1812 COG 680PF 5% 1KV |
945 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 680 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | SMPS Filtering | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.102" (2.60mm) | - | - |
-2,15mm-C-Series.jpg)
|
C4520X7S3A222K160KACAP CER 2200PF 1KV X7S 1808 |
918 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 2200 pF | ±10% | 1000V (1kV) | X7S | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | - | 0.071" (1.80mm) | - | - |
|
CHV1812N500221JCTHVCAP1812 COG 220PF 5% 500V |
903 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 220 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | SMPS Filtering | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
GMC31X5R226M35NTCAP1206 X5R 22UF 20% 35V |
901 |
|
Datasheet |
GMC | Cut Tape (CT) | Active | 22 µF | ±20% | 35V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812C274K1RAC7800CAP CER 0.27UF 100V X7R 1812 |
818 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.27 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.065" (1.65mm) | - | - |
|
|
C4520X7S3A222M160KACAP CER 2200PF 1KV X7S 1808 |
695 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 2200 pF | ±20% | 1000V (1kV) | X7S | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | - | 0.071" (1.80mm) | - | - |
|
VJ0603Y471JLAAJ32CAP CER 470 PF 50V X7R 0603 PB T |
643 |
|
Datasheet |
VJ Pb-Bearing | Tape & Reel (TR) | Active | 470 pF | ±5% | 50V | X7R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.038" (0.97mm) | - | - |
|
|
C4520X7S3A472M160KACAP CER 4700PF 1KV X7S 1808 |
623 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 4700 pF | ±20% | 1000V (1kV) | X7S | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | - | 0.071" (1.80mm) | - | - |
-0,94mm.jpg)
|
08055C474J4Z2ACAP CER ADVANCE PRODUCT |
0 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 0.47 µF | ±5% | 50V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | - | - | - |
|
|
08055C103J4Z2ACAP CER SMD |
0 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 10000 pF | ±5% | 50V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | - | - | - |
|
GMC43X7R106K25NTCAP1812 X7R 10UF 10% 25V |
322 |
|
Datasheet |
GMC | Cut Tape (CT) | Active | 10 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.110" (2.80mm) | - | - |
|

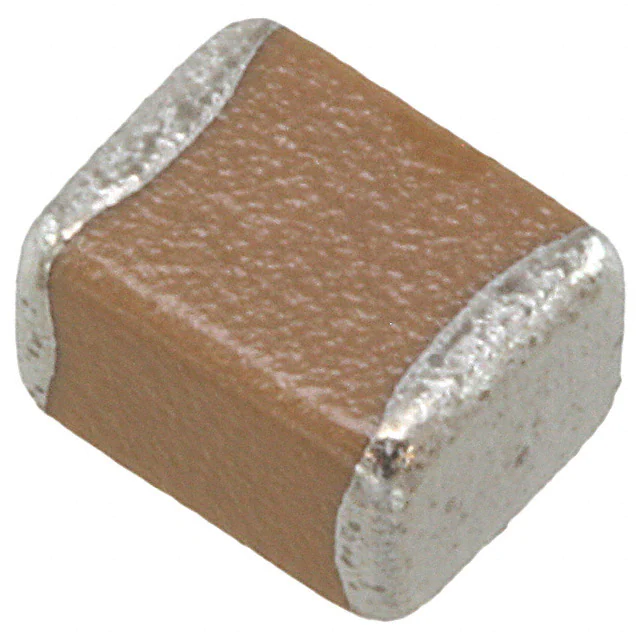

CGJ6M3X7R2D224K200AACAP CER 0.22UF 200V X7R 1210 |
17,553 |
|
Datasheet |
CGJ | Tape & Reel (TR) | Obsolete | 0.22 µF | ±10% | 200V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
.jpg)
|
CGJ5L2X7R1A155K160AACAP CER 1.5UF 10V X7R 1206 |
3,217 |
|
Datasheet |
CGJ | Tape & Reel (TR) | Obsolete | 1.5 µF | ±10% | 10V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
|
|
CGJ5L2X7R1C155K160AACAP CER 1.5UF 16V X7R 1206 |
2,662 |
|
Datasheet |
CGJ | Tape & Reel (TR) | Obsolete | 1.5 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
|
C1812X204KDRLCAUTO7210CAP CER 0.2UF 1KV X7R 1812 |
2,000 |
|
Datasheet |
KONNEKT Auto X7R | Tape & Reel (TR) | Active | 0.2 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Low ESL (Stacked), Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.150" (3.80mm) | - | - |
-1,45mm-C-Series.jpg)
|
C2012JB1A476M125ACCAP CER 47UF 10V JB 0805 |
74,287 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 47 µF | ±20% | 10V | JB | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
-2,20mm-C-Series.jpg)
|
C3216JB1H685K160ABCAP CER 6.8UF 50V JB 1206 |
66,816 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 6.8 µF | ±10% | 50V | JB | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
SA405C334KARCAP CER 0.33UF 50V X7R AXIAL |
5,000 |
|
Datasheet |
SpinGuard® SA | Tape & Reel (TR) | Obsolete | 0.33 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Axial | 0.150" Dia x 0.400" L (3.81mm x 10.16mm) | - | - | - | Straight |
-3,20x2,50x0,88mm.jpg)
|
C1210C184K5JAC7800CAP CER 0.18UF 50V U2J 1210 |
0 |
|
Datasheet |
SMD Comm U2J | Tape & Reel (TR) | Active | 0.18 µF | ±10% | 50V | U2J | -55°C ~ 125°C | Low ESL, Low Dissipation Factor | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.035" (0.88mm) | - | - |
|
|
C3216JB1A476M160ABCAP CER 47UF 10V JB 1206 |
4,578 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 47 µF | ±20% | 10V | JB | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
