Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHV1210N630472GCTHVCAP1210 COG 4700PF 2% 630V |
2,000 |
|
Datasheet |
CHV | Tape & Reel (TR) | Active | 4700 pF | ±2% | 630V | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|
FG20C0G2A683JNT06CAP CER 0.068UF 100V C0G RADIAL |
1,395 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 0.068 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
0603N1R1BW251.060 X.030 1.1 PF .1PF 250 VOLTS |
948 |
|
Datasheet |
0603N | Tape & Reel (TR) | Active | 1.1 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 175°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.062" L x 0.032" W (1.57mm x 0.81mm) | - | 0.038" (0.96mm) | - | - |
-1,55mm-C-Series.jpg)
|
C4532CH3F181K160KACAP CER 180PF 3KV CH 1812 |
731 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 180 pF | ±10% | 3000V (3kV) | CH | -25°C ~ 85°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
FG11X5R0J686MRT06CAP CER 68UF 6.3V X5R RADIAL |
693 |
|
Datasheet |
FG | Cut Tape (CT) | Obsolete | 68 µF | ±20% | 6.3V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.098" (2.50mm) | Formed Leads |
-2,20mm-C-Series.jpg)
|
C3216JB0J107M160ABCAP CER 100UF 6.3V JB 1206 |
37,333 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 100 µF | ±20% | 6.3V | JB | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.074" (1.90mm) | - | - |
|
|
C3216JB1C336M160ABCAP CER 33UF 16V JB 1206 |
14,152 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 33 µF | ±20% | 16V | JB | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
GMC21CG473G25NTDCAP0805 COG .047UF 2% 25V |
10,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 0.047 µF | ±2% | 25V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
C3216JB0J686M160ABCAP CER 68UF 6.3V JB 1206 |
9,908 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 68 µF | ±20% | 6.3V | JB | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.074" (1.90mm) | - | - |
-1,45mm-C-Series.jpg)
|
C2012JB1A336M125ACCAP CER 33UF 10V JB 0805 |
9,693 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 33 µF | ±20% | 10V | JB | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
C3216JB1E226M160ABCAP CER 22UF 25V JB 1206 |
7,612 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 22 µF | ±20% | 25V | JB | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
.jpg)
|

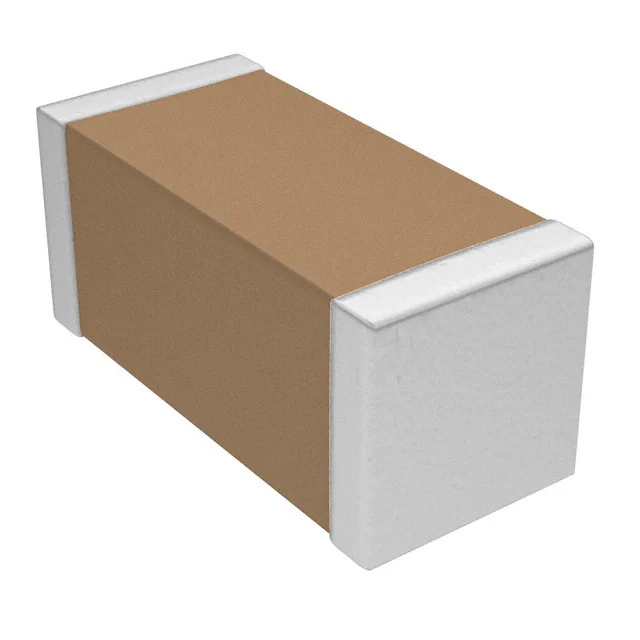

CDR03BX333BMWSATCAP CER 0.033UF 100V BX 1808 |
4,158 |
|
Datasheet |
Military, MIL-PRF-55681, CDR03 | Tape & Reel (TR) | Active | 0.033 µF | ±20% | 100V | BX | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Surface Mount, MLCC | 1808 (4520 Metric) | 0.180" L x 0.080" W (4.57mm x 2.03mm) | - | 0.080" (2.03mm) | - | - |
-3,20x1,60x1,35mm.jpg)
|
C1206C182G1GACAUTOCAP CER 1800PF 100V C0G/NP0 1206 |
0 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 1800 pF | ±2% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.043" (1.10mm) | - | - |
-2,80mm-C-Series.jpg)
|
C3225CH2A153K125AACAP CER 0.015UF 100V CH 1210 |
1,930 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 0.015 µF | ±10% | 100V | CH | -25°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.057" (1.45mm) | - | - |
|
|
C3225CH2A223J160AACAP CER 0.022UF 100V CH 1210 |
1,910 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 0.022 µF | ±5% | 100V | CH | -25°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.071" (1.80mm) | - | - |
.jpg)
|
CGA5L3X5R1V685M160ABCAP CER 6.8UF 35V X5R 1206 |
1,690 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 6.8 µF | ±20% | 35V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.075" (1.90mm) | - | - |
|
|
C3225CH2W333J250AACAP CER 0.033UF 450V CH 1210 |
1,490 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 0.033 µF | ±5% | 450V | CH | -25°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
|
C3216JB1E156M160ABCAP CER 15UF 25V JB 1206 |
1,169 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 15 µF | ±20% | 25V | JB | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
|
C3225CH2A153J125AACAP CER 0.015UF 100V CH 1210 |
524 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 0.015 µF | ±5% | 100V | CH | -25°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.057" (1.45mm) | - | - |
|
|
C3225CH2W223K230AACAP CER 0.022UF 450V CH 1210 |
300 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 0.022 µF | ±10% | 450V | CH | -25°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.098" (2.50mm) | - | - |
