Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W2L14D155MAT1ACAP CER 1.5UF 4V X5R 0508 |
2,752 |
|
Datasheet |
IDC, W | Tape & Reel (TR) | Active | 1.5 µF | ±20% | 4V | X5R | -55°C ~ 85°C | Low ESL (Multi-Terminal) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0508 (1220 Metric) | 0.050" L x 0.080" W (1.27mm x 2.03mm) | - | 0.037" (0.95mm) | - | - |
|
FG16X5R1E476MRT06CAP CER 47UF 25V X5R RADIAL |
576 |
|
Datasheet |
FG | Cut Tape (CT) | Discontinued at Digi-Key | 47 µF | ±20% | 25V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.098" (2.50mm) | Formed Leads |
|
GMC21CG122F200NTCAP0805 COG 1200PF 1% 200V |
4,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 1200 pF | ±1% | 200V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.037" (0.95mm) | - | - |
|
|
CHV0805N500681FCTHVCAP0805 COG 680PF 1% 500V |
3,980 |
|
Datasheet |
CHV | Cut Tape (CT) | Active | 680 pF | ±1% | 500V | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
GMC21CG682G50NTCAP0805 COG 6800PF 2% 50V |
3,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 6800 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812C334K3JAC7800CAP CER 0.33UF 25V U2J 1812 |
0 |
|
Datasheet |
SMD Comm U2J | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 25V | U2J | -55°C ~ 125°C | Low ESL, Low Dissipation Factor | - | General Purpose | - | Surface Mount, MLCC | 1810 (4525 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|
VJ0805Y102KLBAJ32CAP CER 1000 PF 100V X7R 0805 PB |
1,150 |
|
Datasheet |
VJ Pb-Bearing | Tape & Reel (TR) | Active | 1000 pF | ±10% | 100V | X7R | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C472MFRAC7800CAP CER 4700PF 1.5KV X7R 1210 |
956 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 4700 pF | ±20% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.061" (1.55mm) | - | - |
|

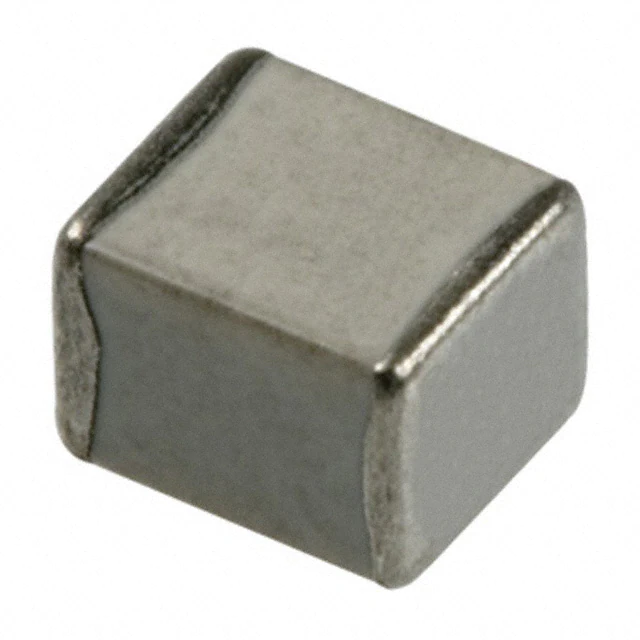

SQCB2M471KAJME\500CAP CER 470PF 200V 1111 |
2,000 |
|
Datasheet |
SQ | Tape & Reel (TR) | Obsolete | 470 pF | ±10% | 200V | M | -55°C ~ 125°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
C1812C274K3JAC7800CAP CER 0.27UF 25V U2J 1812 |
0 |
|
Datasheet |
SMD Comm U2J | Tape & Reel (TR) | Active | 0.27 µF | ±10% | 25V | U2J | -55°C ~ 125°C | Low ESL, Low Dissipation Factor | - | General Purpose | - | Surface Mount, MLCC | 1810 (4525 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
-1,55mm-C-Series.jpg)
|
C4532JB1C226M200KACAP CER 22UF 16V JB 1812 |
1,206 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 22 µF | ±20% | 16V | JB | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
|
|
C4532CH1H473K160KACAP CER 0.047UF 50V CH 1812 |
990 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 0.047 µF | ±10% | 50V | CH | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
C4532CH1H104K200KACAP CER 0.1UF 50V CH 1812 |
950 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 0.1 µF | ±10% | 50V | CH | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
|
|
C4532CH1H104J200KACAP CER 0.1UF 50V CH 1812 |
787 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 0.1 µF | ±5% | 50V | CH | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
|
|
C4532CH1H473J160KACAP CER 0.047UF 50V CH 1812 |
685 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 0.047 µF | ±5% | 50V | CH | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
C4532JB1H685M250KACAP CER 6.8UF 50V JB 1812 |
404 |
|
Datasheet |
C | Tape & Reel (TR) | Last Time Buy | 6.8 µF | ±20% | 50V | JB | -25°C ~ 85°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.110" (2.80mm) | - | - |
-2,70mm-C-Series.jpg)
|
C5750X5R2J224K230KACAP CER 0.22UF 630V X5R 2220 |
219 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.22 µF | ±10% | 630V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.098" (2.50mm) | - | - |
|
GMC10CG682G50NTCAP0603 COG 6800PF 2% 50V |
11,890 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 6800 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
GMC10CG222F100NTCAP0603 COG 2200PF 1% 100V |
4,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 2200 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - | - |
|
GMC21CG3R0B200NTCAP0805 COG 3PF .1PF 200V |
4,000 |
|
Datasheet |
GMC | Tape & Reel (TR) | Active | 3 pF | ±0.1pF | 200V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.028" (0.70mm) | - | - |
