Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C0805C153F5GACTUCAP CER 0.015UF 50V C0G/NP0 0805 |
95 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.015 µF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
-2,54.jpg)
|
1825GC103KAZ1ACAP CER 10000PF 2KV X7R 1825 |
30 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 10000 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.248" W (4.60mm x 6.30mm) | - | 0.134" (3.40mm) | - | - |
-2,70mm-C-Series.jpg)
|
C5750X6S2W105K250KACAP CER 1UF 450V X6S 2220 |
72 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 1 µF | ±10% | 450V | X6S | -55°C ~ 105°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.110" (2.80mm) | - | - |
|
|
560W104MTTCAP CER 0.1UF 6.3V 01005 |
54 |
|
Datasheet |
560 | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 6.3V | - | - | - | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | 0.009" (0.22mm) | - | - |
-2,54mm.jpg)
|
2225WC223KAT1ACAP CER 0.022UF 2.5KV X7R 2225 |
40 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 2500V (2.5kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.225" L x 0.250" W (5.72mm x 6.35mm) | - | 0.100" (2.54mm) | - | - |
-3,30mm.jpg)
|
2220WC183KAT1ACAP CER 0.018UF 2.5KV X7R 2220 |
33 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 0.018 µF | ±10% | 2500V (2.5kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.130" (3.30mm) | - | - |
|
CGA9N1X7R1V476M230KCCAP CER 47UF 35V X7R 2220 |
61 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 47 µF | ±20% | 35V | X7R | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.098" (2.50mm) | - | - |
-4,2mm-Tan.jpg)
|
2220YA250103KXTB16CAP CER 10000PF 250V X7R 2220 |
92 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Not For New Designs | 10000 pF | ±10% | 250V | X7R | -55°C ~ 125°C | Soft Termination | X1, Y2 | Safety, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.177" (4.50mm) | - | - |
|
100A8R2BT150XT1KCAP CER 8.2PF 150V P90 0505 |
79 |
|
Datasheet |
Porcelain Superchip® ATC 100A | Tape & Reel (TR) | Active | 8.2 pF | ±0.1pF | 150V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
MSASA32MAC6337MPCDT1CAP CER 330UF 4V X6S 1210 |
39 |
|
Datasheet |
MSAS | Tape & Reel (TR) | Active | 330 µF | ±20% | 4V | X6S | -55°C ~ 105°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
LD05ZC106KAB2ACAP CER SMD |
63 |
|
Datasheet |
LD | Tape & Reel (TR) | Active | 10 µF | ±10% | 10V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.060" (1.52mm) | - | - |
|
SR501C225KARCAP CER 2.2UF 100V X7R RADIAL |
80 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 2.2 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.500" (12.70mm) | - | 0.400" (10.16mm) | Straight |
|
M39014/02-1415VCAP CER 1UF 50V BX RADIAL |
60 |
|
Datasheet |
Military, MIL-PRF-39014, CKR06 | Bulk | Active | 1 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | Radial | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
M39014/22-0832CAP CER 0.1UF 100V X7R 2-DIP |
100 |
|
Datasheet |
Military, MIL-PRF-39014, CKR22 | Bulk | Active | 0.1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | 2-DIP | 0.260" L x 0.092" W (6.60mm x 2.34mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
|
SV05AC104KARCAP CER 0.1UF 1KV X7R RADIAL |
61 |
|
Datasheet |
SV | Bulk | Active | 0.1 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.469" L x 0.200" W (11.90mm x 5.08mm) | 0.402" (10.20mm) | - | 0.375" (9.52mm) | Straight |
|
CAA573X7R1E157M670LHCAP CER 150UF 25V X7R 2SMD |
25 |
|
Datasheet |
MEGACAP, CA | Tape & Reel (TR) | Active | 150 µF | ±20% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.295" L x 0.246" W (7.50mm x 6.25mm) | 0.272" (6.90mm) | - | - | J-Lead |
|
KTD101B476M99A0B00CAP CER 47UF 100V X7R RADIAL |
24 |
|
Datasheet |
NTD | Bulk | Active | 47 µF | ±20% | 100V | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Through Hole | Radial | 1.122" L x 0.295" W (28.50mm x 7.50mm) | 0.787" (20.00mm) | - | 0.984" (25.00mm) | Straight |
|
|
404027K00101GQRAF9LMCAP CER 100PF 7KV C0G NONSTD SMD |
13 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 100 pF | ±2% | 7000V (7kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 4040 (1010 Metric) | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | 0.197" (5.00mm) | - | - |
|
CKC33C144KEGLC7805CAP CER 0.14UF 1.2KV C0G 3640 |
65 |
|
Datasheet |
KC Link Comm C0G | Tape & Reel (TR) | Active | 0.14 µF | ±10% | 1200V (1.2kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | - | General Purpose | - | Surface Mount, MLCC | 3640 (9110 Metric) | 0.366" L x 0.402" W (9.30mm x 10.20mm) | - | 0.327" (8.30mm) | - | - |
|

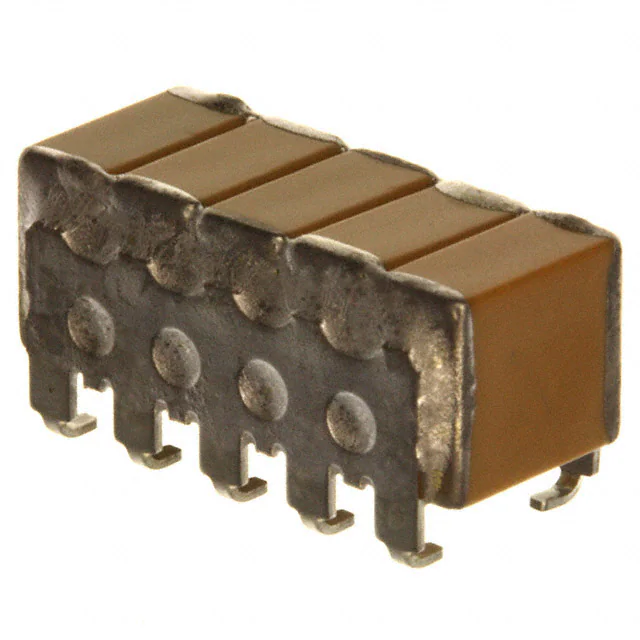

ST201C226MAJ05CAP CER 22UF 100V X7R SMD |
81 |
|
Datasheet |
TurboCap™ | Bulk | Active | 22 µF | ±20% | 100V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 10 J-Lead | 0.525" L x 0.300" W (13.34mm x 7.62mm) | - | 0.220" (5.59mm) | - | J-Lead |
