Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

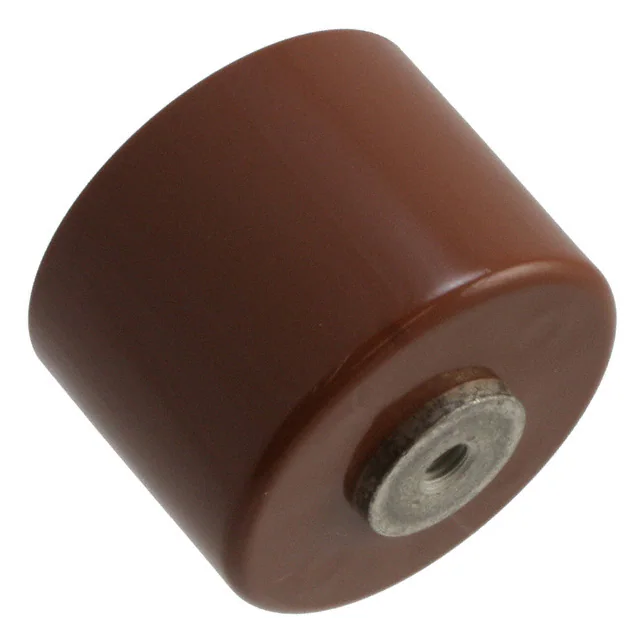

UHV-7ACAP CER 700PF 40KV Z5T DISK |
3 |
|
Datasheet |
UHV | Bulk | Active | 700 pF | ±10% | 40000V (40kV) | Z5T | -30°C ~ 85°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Requires Holder | Disk, Metal Fitting - Threaded | 1.496" Dia x 1.299" L (38.00mm x 33.00mm) | - | - | - | - |
|
SV2220BB107M500LLW-10RCAP CER 100UF 50V X7R SMD |
11 |
|
Datasheet |
SV2220 | Bulk | Active | 100 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | SMPS Filtering | - | Surface Mount, MLCC | Stacked SMD, 10 L-Lead | 1.075" L x 0.300" W (27.30mm x 7.62mm) | - | 0.300" (7.62mm) | 0.100" (2.54mm) | L-Lead |
|
L1GN402105KA03CAP CER 1UF 200V C0G/NP0 8 LEAD |
8 |
|
Datasheet |
KPS-MCC Indust C0G HT200C | Tray | Active | 1 µF | ±10% | 200V | C0G, NP0 | -55°C ~ 200°C | Low ESL (Stacked), High Temperature | - | SMPS Filtering | - | Through Hole | Stacked DIP, 8 Lead | 0.400" L x 0.440" W (10.16mm x 11.18mm) | 0.390" (9.91mm) | - | 0.400" (10.16mm) | Straight |
|
|
L1GN30D334KA04CAP CER 0.33UF 1KV C0G 20 LEAD |
8 |
|
Datasheet |
KPS-MCC Indust C0G HT200C | Tray | Active | 0.33 µF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 200°C | Low ESL (Stacked), High Temperature | - | SMPS Filtering | - | Through Hole | Stacked DIP, 20 Lead | 1.009" L x 0.500" W (25.64mm x 12.70mm) | 0.280" (7.11mm) | - | 0.450" (11.43mm) | Straight |
-0,55mm.jpg)
|
0402B471J500CTCAP CER 470PF 50V X7R 0402 |
10,988 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 470 pF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
0402N102G500CTCAP CER 1000PF 50V C0G/NP0 0402 |
10,882 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1000 pF | ±2% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
.jpg)
|
CGA2B2X7R1H222M050BACAP CER 2200PF 50V X7R 0402 |
10,730 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 2200 pF | ±20% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
CGA2B2X5R1C473M050BACAP CER 0.047UF 16V X5R 0402 |
10,700 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.047 µF | ±20% | 16V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
0402B182K500CTCAP CER 1800PF 50V X7R 0402 |
10,557 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1800 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
-0,55mm-BN.jpg)
|
885012205045CAP CER 1500PF 25V X7R 0402 |
10,390 |
|
Datasheet |
WCAP-CSGP | Tape & Reel (TR) | Active | 1500 pF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
.jpg)
|
EMK105BJ104MV-FCAP CER 0.1UF 16V X5R 0402 |
10,356 |
|
- |
M | Tape & Reel (TR) | Not For New Designs | 0.1 µF | ±20% | 16V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
CC0402JRX7R9BB561CAP CER 560PF 50V X7R 0402 |
10,141 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 560 pF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
0402N1R5C500CTCAP CER 1.5PF 50V C0G/NP0 0402 |
10,141 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1.5 pF | ±0.25pF | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
GCM155R71H471MA37DCAP CER 470PF 50V X7R 0402 |
10,135 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 470 pF | ±20% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
UMK105CH040CVHFCAP CER 4PF 50V CH 0402 |
10,119 |
|
- |
M | Tape & Reel (TR) | Active | 4 pF | ±0.25pF | 50V | CH | - | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | - | - | - |
|
|
0402B561K500CTCAP CER 560PF 50V X7R 0402 |
10,105 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 560 pF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
UMK105CG1R5CV-FCAP CER 1.5PF 50V C0G/NP0 0402 |
10,095 |
|
- |
M | Tape & Reel (TR) | Not For New Designs | 1.5 pF | ±0.25pF | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
GRM155C80G474KE01DCAP CER 0.47UF 4V X6S 0402 |
10,072 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 4V | X6S | -55°C ~ 105°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
0402N5R6B500CTCAP CER 5.6PF 50V C0G/NP0 0402 |
10,055 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 5.6 pF | ±0.1pF | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
|
|
TMK105BJ472KVHFCAP CER 4700PF 25V X5R 0402 |
10,000 |
|
- |
M | Tape & Reel (TR) | Active | 4700 pF | ±10% | 25V | X5R | -55°C ~ 85°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
