Microcontrollers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | Core Processor | Core Size | Speed | Connectivity | Peripherals | Number of I/O | Program Memory Size | Program Memory Type | EEPROM Size | RAM Size | Voltage - Supply (Vcc/Vdd) | Data Converters | Oscillator Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSP430F1612IPMRIC MCU 16BIT 55KB FLASH 64LQFP |
1,523 |
|
Datasheet |
64-LQFP | MSP430x1xx | Tape & Reel (TR) | Active | Verified | MSP430 CPU16 | 16-Bit | 8MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 48 | 55KB (55K x 8 + 256B) | FLASH | - | 5K x 8 | 1.8V ~ 3.6V | A/D 8x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
MSP430F1611IPMRIC MCU 16BIT 48KB FLASH 64LQFP |
833 |
|
Datasheet |
64-LQFP | MSP430x1xx | Tape & Reel (TR) | Active | Verified | MSP430 CPU16 | 16-Bit | 8MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 48 | 48KB (48K x 8 + 256B) | FLASH | - | 10K x 8 | 1.8V ~ 3.6V | A/D 8x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
STM32H745BIT6IC MCU 32BIT 2MB FLASH 208LQFP |
151 |
|
Datasheet |
208-LQFP | STM32H7 | Tray | Active | Not Verified | ARM® Cortex®-M4/M7 | 32-Bit Dual-Core | 240MHz, 480MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | 148 | 2MB (2M x 8) | FLASH | - | 1M x 8 | 1.62V ~ 3.6V | A/D 32x16b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
TMS320F28377SPTPTIC MCU 32BIT 1MB FLASH 176HLQFP |
258 |
|
Datasheet |
176-LQFP Exposed Pad | C2000™ C28x Delfino™, Functional Safety (FuSa) | Tray | Active | Not Verified | C28x | 32-Bit Single-Core | 200MHz | CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, uPP, UART/USART, USB | DMA, POR, PWM, WDT | 97 | 1MB (512K x 16) | FLASH | - | 82K x 16 | 1.14V ~ 3.47V | A/D 20x12b, 20x16b; D/A 3x12b | Internal | -40°C ~ 105°C (TJ) | - | - | Surface Mount | ||
|
ATSAME70Q21A-CNIC MCU 32BIT 2MB FLASH 144LFBGA |
721 |
|
Datasheet |
144-LFBGA | SAM E70 | Tray | Active | Not Verified | ARM® Cortex®-M7 | 32-Bit Single-Core | 300MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 114 | 2MB (2M x 8) | FLASH | - | 384K x 8 | 1.62V ~ 3.6V | A/D 24x12b; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
|
ATSAME70Q21B-CNIC MCU 32BIT 2MB FLASH 144LFBGA |
302 |
|
Datasheet |
144-LFBGA | SAM E70 | Tray | Active | Not Verified | ARM® Cortex®-M7 | 32-Bit Single-Core | 300MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 114 | 2MB (2M x 8) | FLASH | - | 384K x 8 | 1.62V ~ 3.6V | A/D 24x12b; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
R5F572MNDDFC#30IC MCU 32BIT 4MB FLASH 176LFQFP |
272 |
|
Datasheet |
176-LQFP | RX700 | Tray | Active | Not Verified | RXv3 | 32-Bit Single-Core | 240MHz | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD, QSPI, SCI, SPI, SSI, USB OTG | DMA, LCD, LVD, POR, PWM, WDT | 136 | 4MB (4M x 8) | FLASH | 32K x 8 | 1M x 8 | 2.7V ~ 3.6V | A/D 8x12b, 21x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|

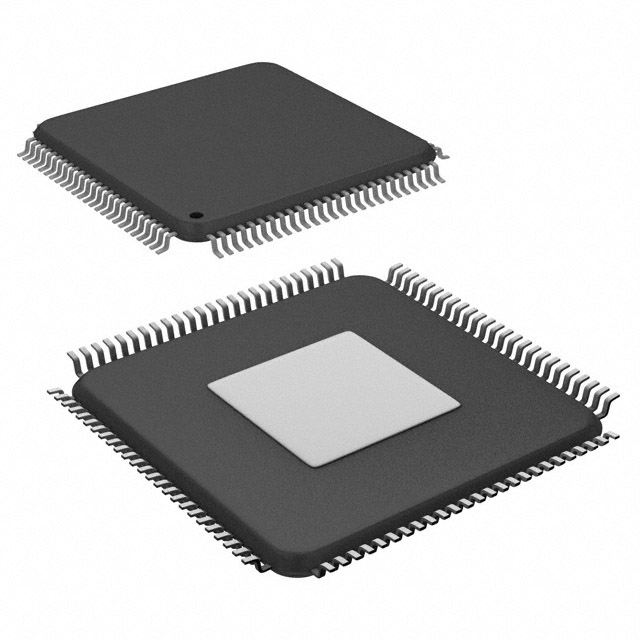

XMC4700F100K2048AAXQMA1IC MCU 32BIT 2MB FLASH 100LQFP |
1,740 |
|
Datasheet |
100-LQFP Exposed Pad | XMC4000 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 144MHz | CANbus, EBI/EMI, Ethernet, I2C, LINbus, MMC/SD, SPI, UART/USART, USB OTG, USIC | DMA, I2S, LED, POR, Touch-Sense, WDT | 75 | 2MB (2M x 8) | FLASH | - | 352K x 8 | 3.13V ~ 3.63V | A/D 24x12b; D/A 2x12b | External | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
MC908GP32CFBEIC MCU 8BIT 32KB FLASH 44QFP |
1,143 |
|
Datasheet |
44-QFP | HC08 | Tray | Not For New Designs | Not Verified | HC08 | 8-Bit | 8MHz | SCI, SPI | LVD, POR, PWM | 33 | 32KB (32K x 8) | FLASH | - | 512 x 8 | 2.7V ~ 5.5V | A/D 8x8b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
MC908GP32CFBERIC MCU 8BIT 32KB FLASH 44QFP |
1,099 |
|
Datasheet |
44-QFP | HC08 | Tape & Reel (TR) | Not For New Designs | Not Verified | HC08 | 8-Bit | 8MHz | SCI, SPI | LVD, POR, PWM | 33 | 32KB (32K x 8) | FLASH | - | 512 x 8 | 2.7V ~ 5.5V | A/D 8x8b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
ATSAME70Q21B-CNTIC MCU 32BIT 2MB FLASH 144LFBGA |
5,023 |
|
Datasheet |
144-LFBGA | SAM E70 | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M7 | 32-Bit Single-Core | 300MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 114 | 2MB (2M x 8) | FLASH | - | 384K x 8 | 1.62V ~ 3.6V | A/D 24x12b; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
LPC4357JET256,551IC MCU 32BIT 1MB FLASH 256LBGA |
3,746 |
|
Datasheet |
256-LBGA | LPC43xx | Tray | Active | Not Verified | ARM® Cortex®-M4/M0 | 32-Bit Dual-Core | 204MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, Microwire, QEI, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG | Brown-out Detect/Reset, DMA, I2S, LCD, Motor Control PWM, POR, PWM, WDT | 164 | 1MB (1M x 8) | FLASH | 16K x 8 | 136K x 8 | 2.2V ~ 3.6V | A/D 8x10b; D/A 1x10b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
MC56F8322VFAEIC MCU 16BIT 32KB FLASH 48LQFP |
814 |
|
Datasheet |
48-LQFP | 56F8xxx | Tray | Not For New Designs | Verified | 56800E | 16-Bit | 60MHz | CANbus, SCI, SPI | POR, PWM, Temp Sensor, WDT | 21 | 32KB (16K x 16) | FLASH | - | 6K x 16 | 2.25V ~ 3.6V | A/D 6x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
ATSAMV71Q21B-CBIC MCU 32BIT 2MB FLASH 144TFBGA |
564 |
|
Datasheet |
144-TFBGA | SAM V71 | Tray | Active | Not Verified | ARM® Cortex®-M7 | 32-Bit Single-Core | 300MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, SSC, UART/USART, USB | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 114 | 2MB (2M x 8) | FLASH | - | 384K x 8 | 3V ~ 3.6V | A/D 24x12b; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | ||
|
|
ATSAMV71Q21B-CBTIC MCU 32BIT 2MB FLASH 144TFBGA |
1,484 |
|
Datasheet |
144-TFBGA | SAM V71 | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M7 | 32-Bit Single-Core | 300MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, SSC, UART/USART, USB | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 114 | 2MB (2M x 8) | FLASH | - | 384K x 8 | 3V ~ 3.6V | A/D 24x12b; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | ||
|
STM32F765ZIT6IC MCU 32BIT 2MB FLASH 144LQFP |
585 |
|
Datasheet |
144-LQFP | STM32F7 | Tray | Active | Verified | ARM® Cortex®-M7 | 32-Bit Single-Core | 216MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 114 | 2MB (2M x 8) | FLASH | - | 512K x 8 | 1.7V ~ 3.6V | A/D 24x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
STM32F777VIT6IC MCU 32BIT 2MB FLASH 100LQFP |
1,606 |
|
Datasheet |
100-LQFP | STM32F7 | Tray | Active | Verified | ARM® Cortex®-M7 | 32-Bit Single-Core | 216MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT | 82 | 2MB (2M x 8) | FLASH | - | 512K x 8 | 1.7V ~ 3.6V | A/D 16x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
STM32F756BGT6IC MCU 32BIT 1MB FLASH 208LQFP |
665 |
|
Datasheet |
208-LQFP | STM32F7 | Tray | Active | Not Verified | ARM® Cortex®-M7 | 32-Bit Single-Core | 216MHz | CANbus, Ethernet, HDMI-CEC, I2C, IrDA, LINbus, MMC/SD, SAI, SPDIFRX, SPI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | 168 | 1MB (1M x 8) | FLASH | - | 320K x 8 | 1.7V ~ 3.6V | A/D 24x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
CY8C3866PVI-021IC MCU 8BIT 64KB FLASH 48SSOP |
506 |
|
Datasheet |
48-BSSOP (0.295", 7.50mm Width) | PSOC™ 3 CY8C38xx | Tube | Active | Not Verified | 8051 | 8-Bit | 67MHz | EBI/EMI, I2C, LINbus, SPI, UART/USART, USB | CapSense, DMA, LCD, POR, PWM, WDT | 25 | 64KB (64K x 8) | FLASH | 2K x 8 | 8K x 8 | 1.71V ~ 5.5V | A/D 16x20b; D/A 4x8b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
TM4C129ENCPDTI3IC MCU 32BIT 1MB FLASH 128TQFP |
491 |
|
Datasheet |
128-TQFP | Tiva™ C | Tray | Active | Not Verified | ARM® Cortex®-M4F | 32-Bit Single-Core | 120MHz | CANbus, EBI/EMI, Ethernet, I2C, IrDA, QSSI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, Motion Control PWM, POR, PWM, WDT | 90 | 1MB (1M x 8) | FLASH | 6K x 8 | 256K x 8 | 2.97V ~ 3.63V | A/D 20x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount |
