Microcontrollers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | Core Processor | Core Size | Speed | Connectivity | Peripherals | Number of I/O | Program Memory Size | Program Memory Type | EEPROM Size | RAM Size | Voltage - Supply (Vcc/Vdd) | Data Converters | Oscillator Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC9S08AW16CFGERIC MCU 8BIT 16KB FLASH 44LQFP |
6,856 |
|
Datasheet |
44-LQFP | S08 | Tape & Reel (TR) | Active | Not Verified | S08 | 8-Bit | 40MHz | I2C, SCI, SPI | LVD, POR, PWM, WDT | 34 | 16KB (16K x 8) | FLASH | - | 1K x 8 | 2.7V ~ 5.5V | A/D 8x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
STM32H563VIT6IC MCU 32BIT 2MB FLASH 100LQFP |
798 |
|
Datasheet |
100-LQFP | STM32H5 | Tray | Active | - | ARM® Cortex®-M33 | 32-Bit | 250MHz | CANbus, Ethernet, FIFO, I2C, IrDA, LINbus, SCI, SDIO, SMBus, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, I2S, PDR, POR, PWM, SHA, TRNG, Voltage Detect, WDT | 80 | 2MB (2M x 8) | FLASH | - | 640K x 8 | 1.71V ~ 3.6V | A/D 16x12b SAR; D/A 2x12b | External, Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
TMS320F28027PTTIC MCU 32BIT 64KB FLASH 48LQFP |
698 |
|
Datasheet |
48-LQFP | C2000™ C28x Piccolo™ | Tray | Active | Not Verified | C28x | 32-Bit Single-Core | 60MHz | I2C, SCI, SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 22 | 64KB (32K x 16) | FLASH | - | 6K x 16 | 1.71V ~ 1.995V | A/D 13x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|
TMS5700332BPZQQ1IC MCU 16/32B 256KB FLSH 100LQFP |
539 |
|
Datasheet |
100-LQFP | Hercules™ TMS570 ARM® Cortex®-R | Tray | Active | Not Verified | ARM® Cortex®-R4 | 16/32-Bit | 80MHz | CANbus, LINbus, MibSPI, SCI, SPI, UART/USART | POR, PWM, WDT | 45 | 256KB (256K x 8) | FLASH | 16K x 8 | 32K x 8 | 1.14V ~ 3.6V | A/D 16x12b | External | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | ||
|
C8051F314-GQIC MCU 8BIT 8KB FLASH 32LQFP |
9,388 |
|
Datasheet |
32-LQFP | C8051F31x | Tray | Not For New Designs | Verified | 8051 | 8-Bit | 25MHz | SMBus (2-Wire/I2C), SPI, UART/USART | POR, PWM, WDT | 29 | 8KB (8K x 8) | FLASH | - | 1.25K x 8 | 2.7V ~ 3.6V | - | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
ATSAME53N20A-AUTIC MCU 32BIT 1MB FLASH 100TQFP |
2,749 |
|
Datasheet |
100-TQFP | SAM E53 | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M4F | 32-Bit Single-Core | 120MHz | EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 81 | 1MB (1M x 8) | FLASH | - | 256K x 8 | 1.71V ~ 3.63V | A/D 28x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
ATXMEGA128A3U-MHRIC MCU 8/16BIT 128KB FLASH 64QFN |
6,792 |
|
Datasheet |
64-VFQFN Exposed Pad | AVR® XMEGA® A3U | Tape & Reel (TR) | Active | Not Verified | AVR | 8/16-Bit | 32MHz | I2C, IrDA, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 50 | 128KB (64K x 16) | FLASH | 2K x 8 | 8K x 8 | 1.6V ~ 3.6V | A/D 16x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
|
F280039CSPMIC MCU 32BIT 384KB FLASH 64LQFP |
180 |
|
Datasheet |
64-LQFP | C2000™ C28x | Tray | Active | Not Verified | C28x | 32-Bit Single-Core | 120MHz | CANbus, I2C, LINbus, SCI, SPI, UART/USART | AES, Brown-out Detect/Reset, DMA, POR, PWM, WDT | 26 | 384KB (192K x 16) | FLASH | - | 34.5K x 16 | 1.14V ~ 3.63V | A/D 16x12b SAR; D/A 2x12b | External, Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
|
ATSAM4SD16BB-MNIC MCU 32BIT 1MB FLASH 64QFN |
447 |
|
Datasheet |
64-VFQFN Exposed Pad | SAM4S | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 120MHz | I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 47 | 1MB (1M x 8) | FLASH | - | 160K x 8 | 1.62V ~ 3.6V | A/D 11x12b; D/A 2x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | ||
|

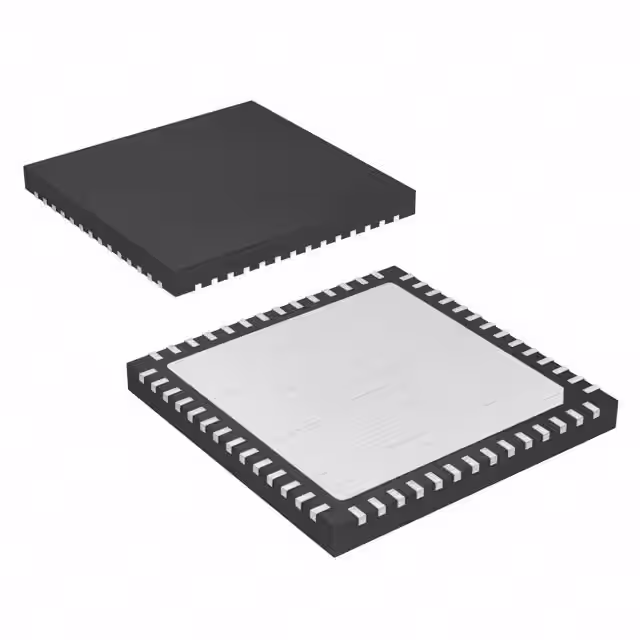

F280049RSHSRIC MCU 32BIT 256KB FLASH 56VQFN |
4,797 |
|
Datasheet |
56-VFQFN Exposed Pad | C2000™ C28x Piccolo™ | Tape & Reel (TR) | Active | Not Verified | C28x | 32-Bit Single-Core | 100MHz | CANbus, I2C, LINbus, SCI, SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 25 | 256KB (128K x 16) | FLASH | - | 50K x 16 | 1.14V ~ 1.32V | A/D 12x12b; D/A 2x12b | Internal | -40°C ~ 125°C (TJ) | - | - | Surface Mount | ||
|
LPC1751FBD80KIC MCU 32BIT 32KB FLASH 80LQFP |
314 |
|
Datasheet |
80-LQFP | LPC17xx | Tray | Active | Not Verified | ARM® Cortex®-M3 | 32-Bit Single-Core | 100MHz | CANbus, I2C, IrDA, Microwire, SPI, SSI, SSP, UART/USART, USB | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT | 52 | 32KB (32K x 8) | FLASH | - | 8K x 8 | 2.4V ~ 3.6V | A/D 6x12b SAR | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
.jpg)
|
Z8F6421VN020SGIC MCU 8BIT 64KB FLASH 44PLCC |
499 |
|
Datasheet |
44-LCC (J-Lead) | Encore!® XP® | Tube | Active | Not Verified | eZ8 | 8-Bit | 20MHz | I2C, IrDA, SPI, UART/USART | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 31 | 64KB (64K x 8) | FLASH | - | 4K x 8 | 3V ~ 3.6V | A/D 8x10b | Internal | 0°C ~ 70°C (TA) | - | - | Surface Mount | ||
|
|
STM32F446VCT6IC MCU 32BIT 256KB FLASH 100LQFP |
293 |
|
Datasheet |
100-LQFP | STM32F4 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 180MHz | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | 81 | 256KB (256K x 8) | FLASH | - | 128K x 8 | 1.7V ~ 3.6V | A/D 16x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
C8051F381-GMIC MCU 8BIT 64KB FLASH 32QFN |
1,908 |
|
Datasheet |
32-VFQFN Exposed Pad | C8051F38x | Tube | Active | Not Verified | 8051 | 8-Bit | 48 MIPS | I2C, SPI, UART/USART, USB | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | 25 | 64KB (64K x 8) | FLASH | - | 4.25K x 8 | 2.7V ~ 5.25V | A/D 21x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
C8051F388-B-GQIC MCU 8BIT 64KB FLASH 48TQFP |
1,357 |
|
Datasheet |
48-TQFP | C8051F38x | Tray | Active | Not Verified | 8051 | 8-Bit | 48 MIPS | EBI/EMI, I2C, SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | 40 | 64KB (64K x 8) | FLASH | - | 4.25K x 8 | 2.7V ~ 5.25V | A/D 32x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
XMC4200F64K256BAXQSA1IC MCU 32BIT 256KB FLASH 64LQFP |
967 |
|
Datasheet |
64-LQFP Exposed Pad | XMC4000 | Tray | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 80MHz | CANbus, I2C, LINbus, SPI, UART/USART, USB | DMA, I2S, LED, POR, PWM, WDT | 35 | 256KB (256K x 8) | FLASH | - | 40K x 8 | 3.13V ~ 3.63V | A/D 16x12b; D/A 2x12b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | ||
|
|
MSP430FG6626IPZIC MCU 16BIT 128KB FLASH 100LQFP |
152 |
|
Datasheet |
100-LQFP | MSP430F6xx | Tray | Active | Not Verified | MSP430 CPUXV2 | 16-Bit | 20MHz | I2C, IrDA, SCI, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | 73 | 128KB (128K x 8) | FLASH | - | 10K x 8 | 1.8V ~ 3.6V | A/D 10x16b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
PIC16C74B-20I/PIC MCU 8BIT 7KB OTP 40DIP |
145 |
|
Datasheet |
40-DIP (0.600", 15.24mm) | PIC® 16C | Tube | Active | Verified | PIC | 8-Bit | 20MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 33 | 7KB (4K x 14) | OTP | - | 192 x 8 | 4V ~ 5.5V | A/D 8x8b | External | -40°C ~ 85°C (TA) | - | - | Through Hole | ||
|
|
ATSAM4E8CA-AURIC MCU 32BIT 512KB FLASH 100LQFP |
229 |
|
Datasheet |
100-LQFP | SAM4E | Tape & Reel (TR) | Active | Not Verified | ARM® Cortex®-M4 | 32-Bit Single-Core | 120MHz | CANbus, Ethernet, IrDA, MMC/SD, SPI, UART/USART, USB | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 79 | 512KB (512K x 8) | FLASH | - | 128K x 8 | 1.62V ~ 3.6V | A/D 16x12b; D/A 2x12b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
|
PIC32MX460F256L-80I/PTIC MCU 32BIT 256KB FLASH 100TQFP |
175 |
|
Datasheet |
100-TQFP | PIC® 32MX | Tray | Active | Not Verified | MIPS32® M4K™ | 32-Bit Single-Core | 80MHz | I2C, IrDA, LINbus, PMP, SPI, UART/USART, USB OTG | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 85 | 256KB (256K x 8) | FLASH | - | 32K x 8 | 2.3V ~ 3.6V | A/D 16x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount |
